Welding Neck Flanges PN16

360° View

Product Description

Welding neck flanges are one of the most reliable flange types that increase the resistance at the connection point by transferring stress to the pipe thanks to their tapered hub structure in pipelines requiring high sealing. The PN16 pressure class makes these flanges ideal for medium-to-high pressure lines, especially for power plants, chemical processes, and advanced water transmission networks. Medisan manufactured PN16 welding neck flanges ensure a smooth flow transition and maximum structural integrity in the pipeline with precision machining quality.

Standards and Material:

Standards: EN 1092-1 / ISO 7005
Pressure Class: PN16
Material: Carbon Steel, Stainless Steel, Alloy Steel
Size Range: DN15 - DN2000

Applications

These flanges are generally used in power plants, petrochemical facilities, industrial steam lines, fire protection systems, and high-pressure water distribution networks.

Quality and Certification

Welding neck flanges manufactured by Medisan are fully compliant with EN 1092-1 standards and offer superior sealing performance in the PN16 pressure class. Our products are under international quality assurance with PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications.

TS ISO 7005-1

EN 1092-1 / TYPE 11

DIN 2633

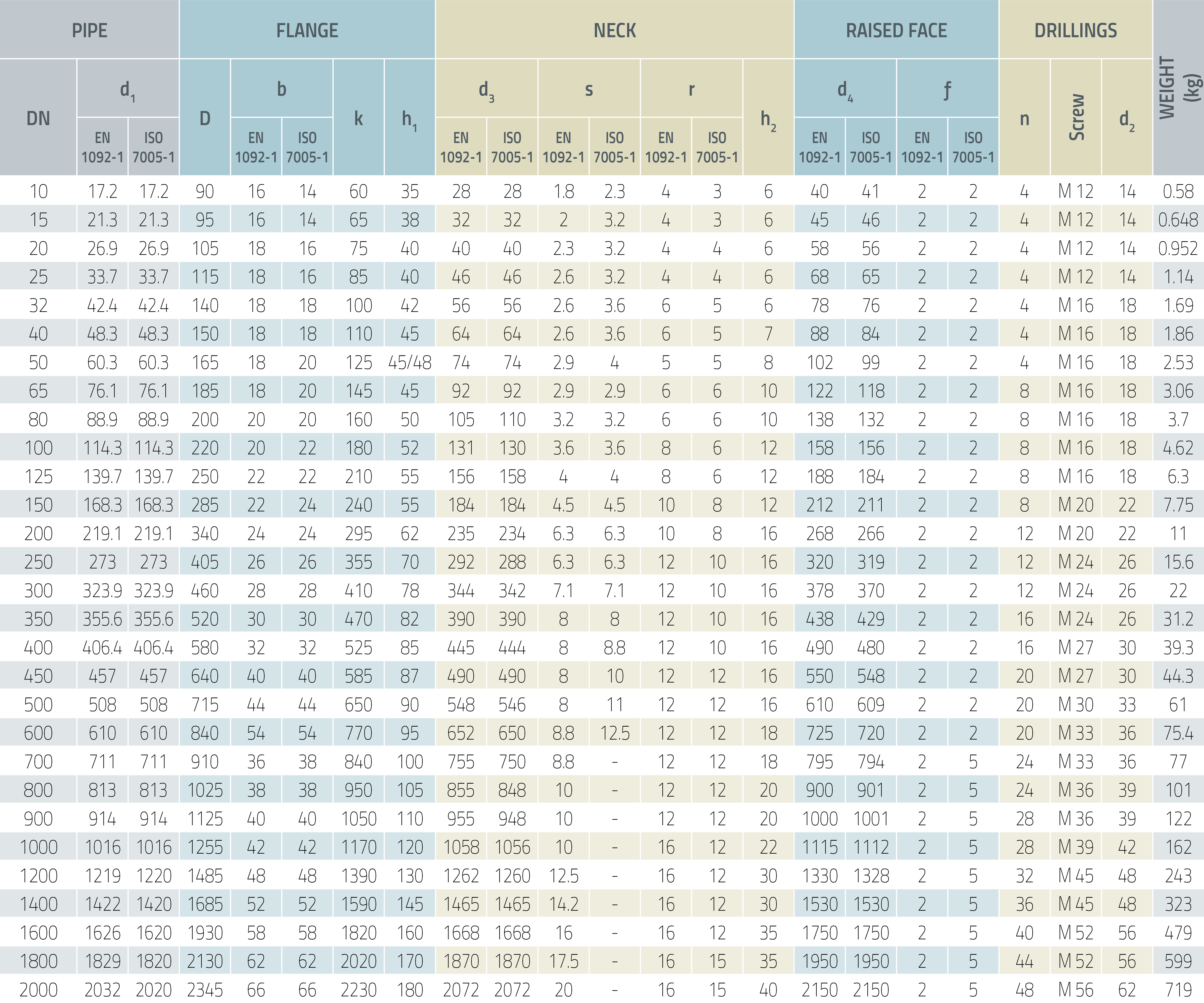

Dimensions are in millimeters.
