Welding Neck Flanges PN100

360° View

Product Description

Welding neck flanges are one of the most reliable flange types that increase the resistance at the connection point by transferring stress to the pipe thanks to their tapered hub structure in pipelines requiring high sealing. The PN100 pressure class makes these flanges one of the top-tier products designed for extreme high-pressure systems and the harshest operating conditions. Medisan manufactured PN100 welding neck flanges offer smooth flow and a guarantee of maximum structural safety in critical processes with precision machining quality.

Standards and Material:

Standards: EN 1092-1 / ISO 7005
Pressure Class: PN100
Material: Carbon Steel, Stainless Steel, Alloy Steel
Size Range: DN15 - DN350

Applications

These flanges are generally used in ultra-high pressure gas lines, offshore oil platforms, chemical injection systems, high-pressure hydraulic units, and power plant piping involving extreme temperature/pressure combinations.

Quality and Certification

Welding neck flanges manufactured by Medisan are fully compliant with EN 1092-1 standards and offer superior durability in the PN100 pressure class. Our products are under international quality assurance with PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications.

TS ISO 7005-1

EN 1092-1 / TYPE 11

DIN 2637

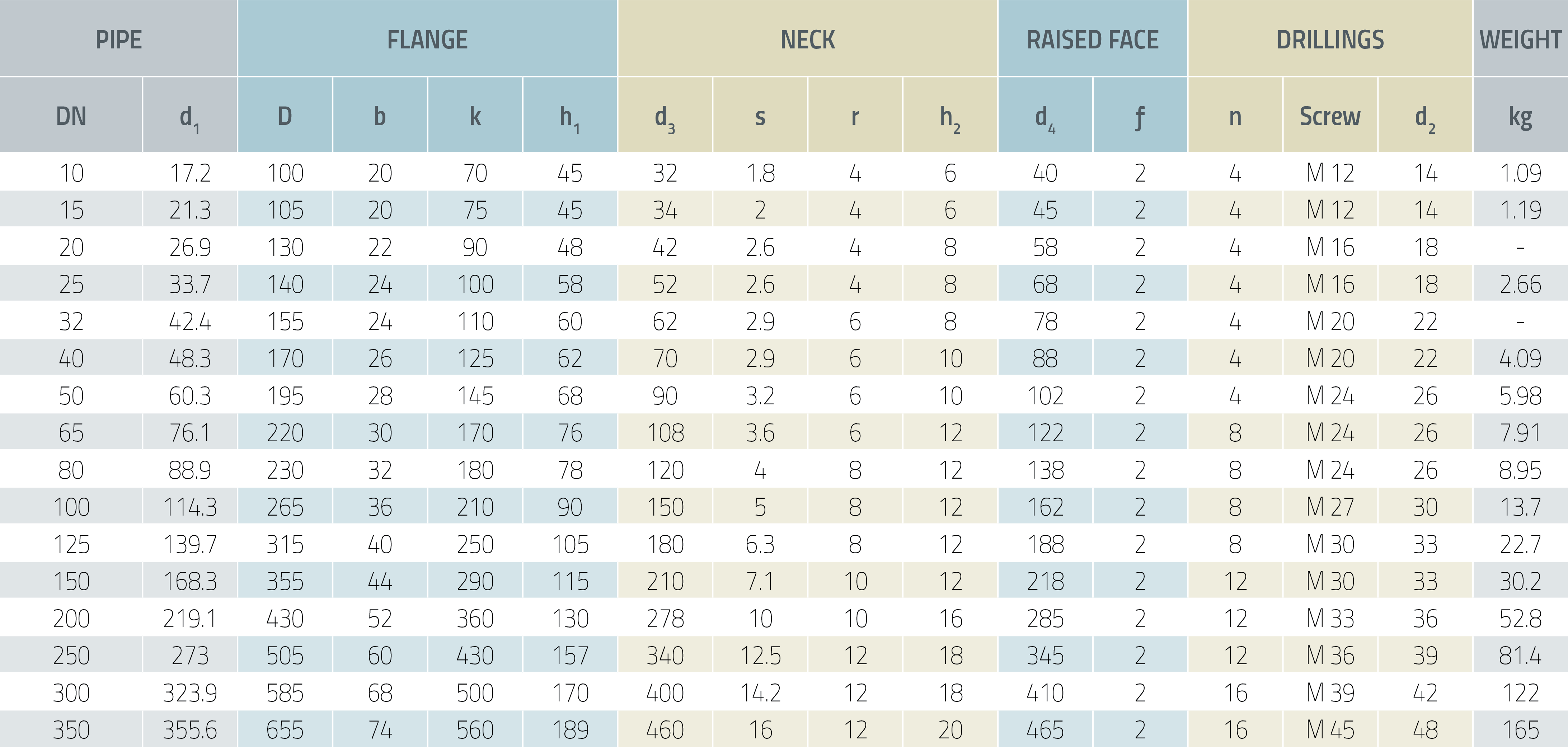

Dimensions are in millimeters.
