Union Threaded
รrรผn Aรงฤฑklamasฤฑ

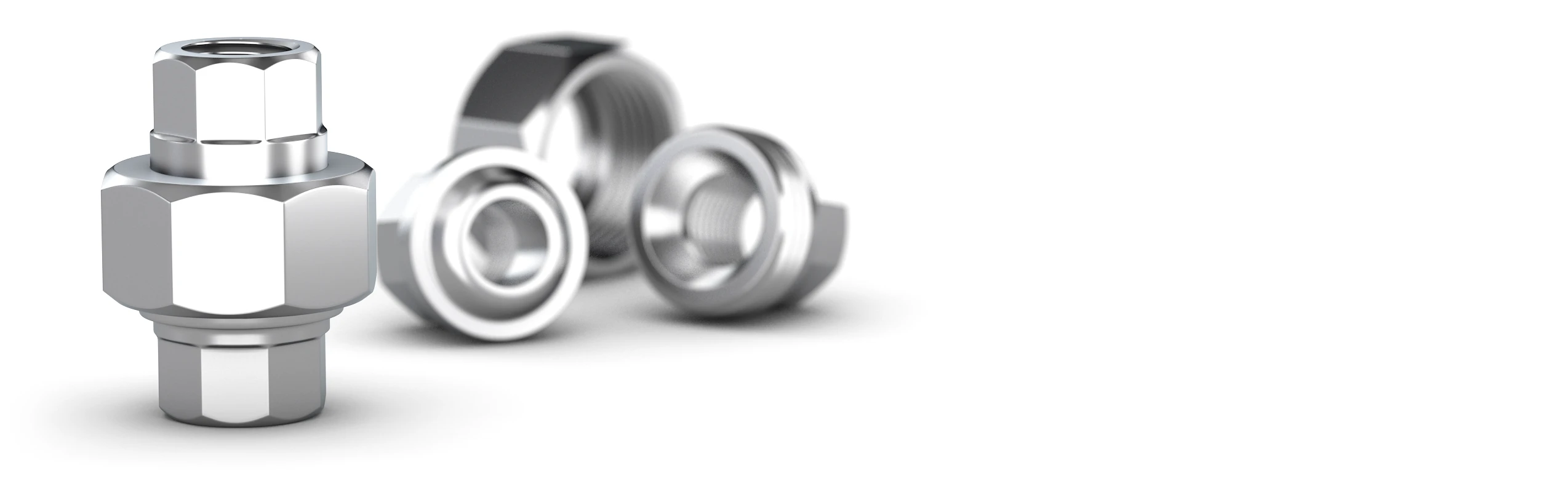

Threaded unions manufactured by Medisan provide a practical connection solution in systems where pipelines need to be dismantled and reassembled. Manufactured from forged steel in accordance with ASME B16.11, this fitting offers secure leak-tightness in high-pressure lines.
The product is produced in Class 2000, 3000, and 6000 pressure classes using both carbon steel and stainless steel materials. The threaded joint design ensures ease of assembly in process lines requiring maintenance or replacement.
Read Moreโฆ
Kullanฤฑm Alanlarฤฑ
Especially oil and gas industry
Refinery facilities
High-pressure system applications
Read Moreโฆ
Kalite ve Sertifikasyon
Quality and Certification: Medisan's PED 2014/68/EU, ISO 9001:2015, and BV Factory Approval certifications guarantee that every part undergoes quality control processes.
Read Moreโฆ

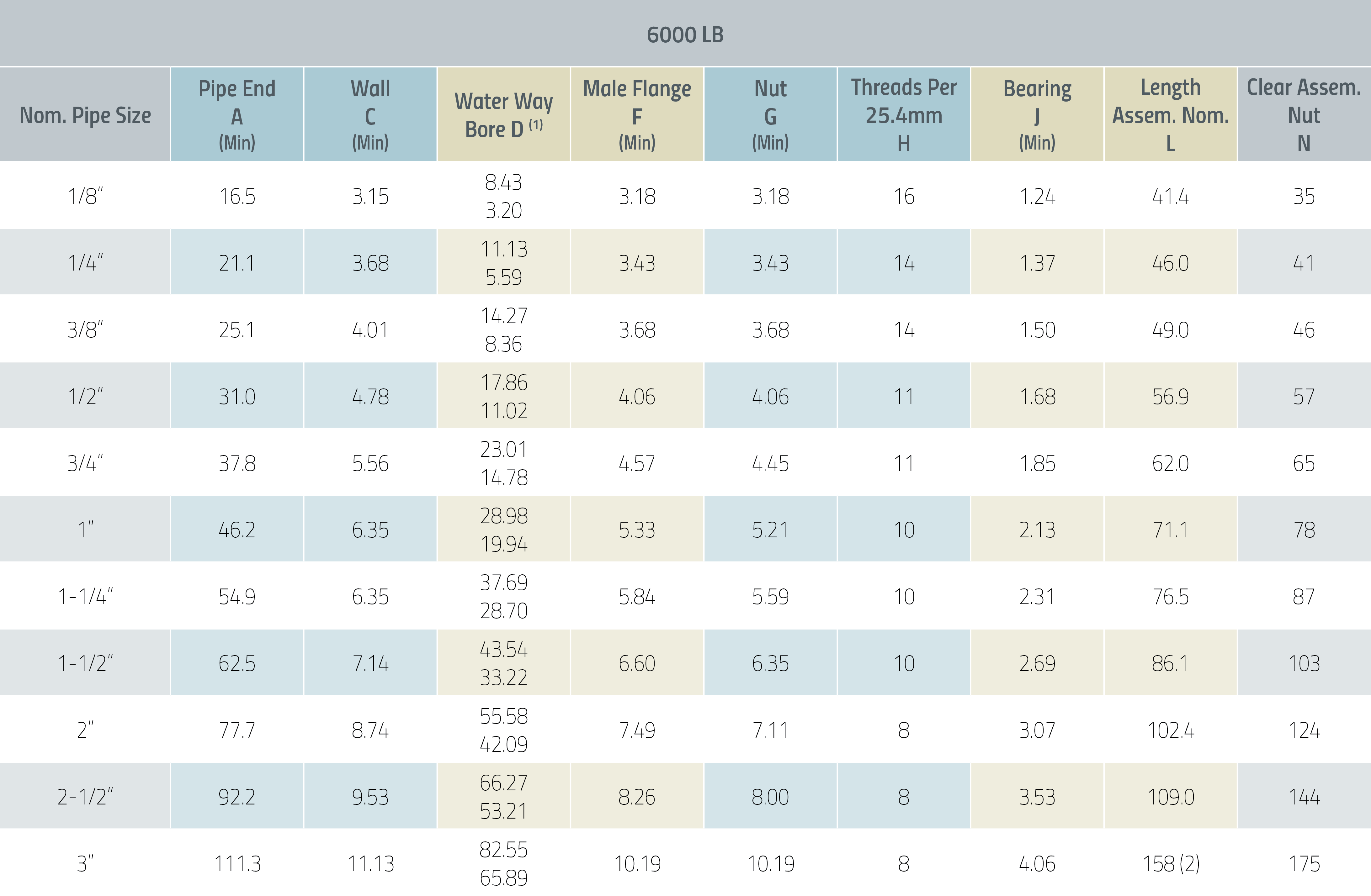

MSS SP-83-2018
Dimensions are in millimeters.
(1) Upper and lower values for each size are the respective maximum and minimum dimensions.
(2) This length 158mm is by our standard and the length as per MSS SP-83-2018 is 190.5mm.
