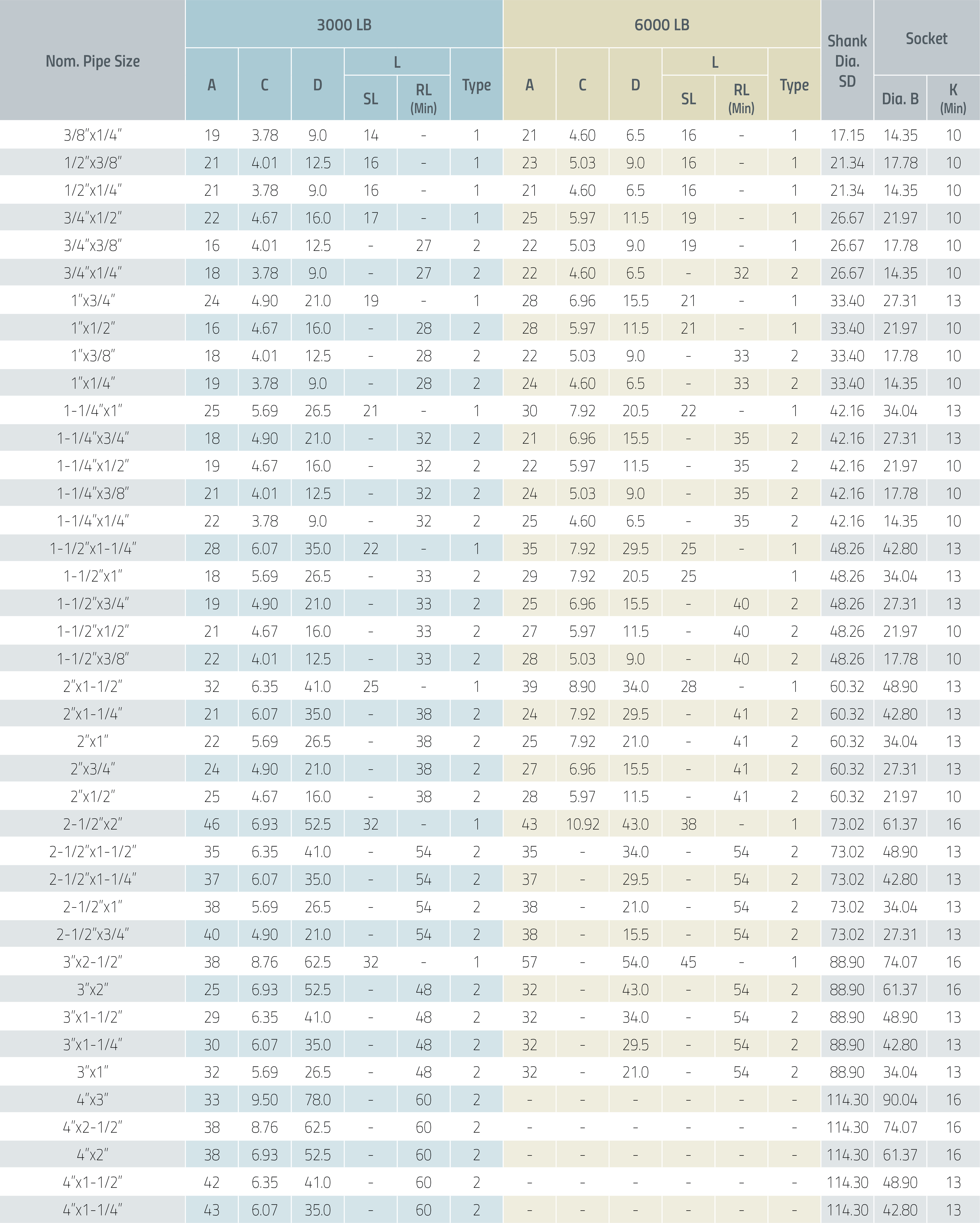

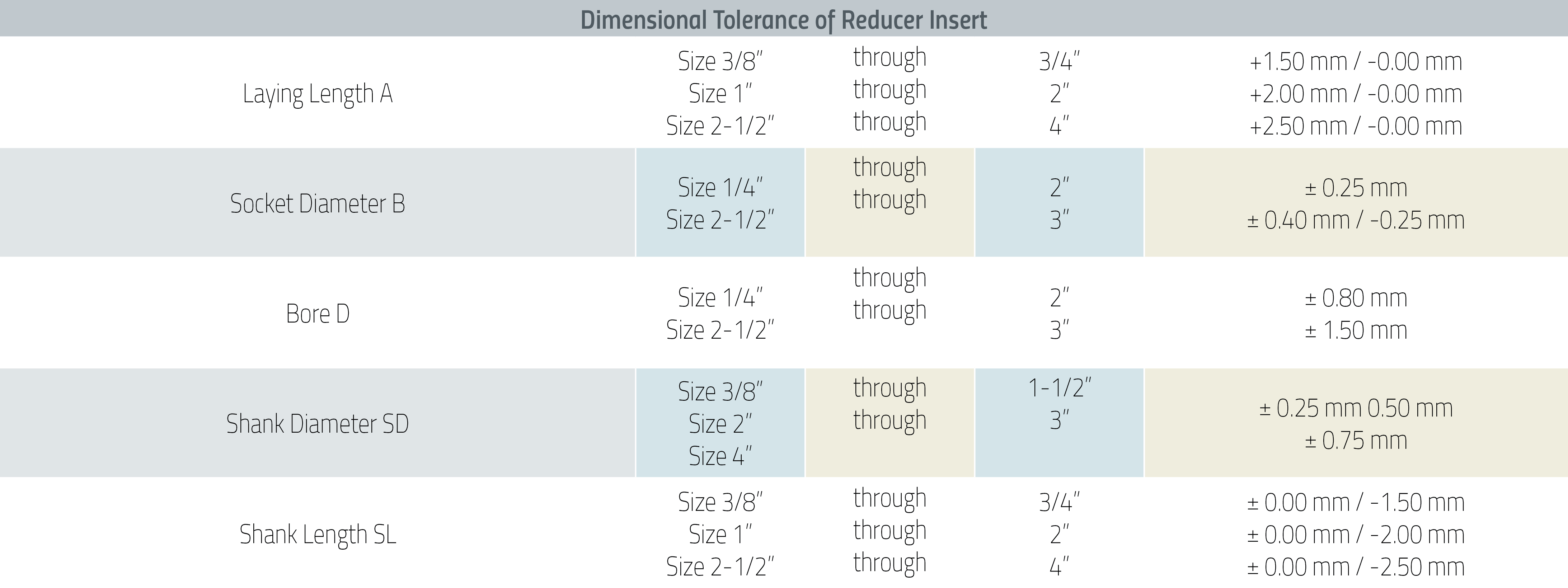

Reducer Insert Socket Weld

MSS SP-79-2018

Dimensions are in millimeters.

(1) At the option of the manufacturer Type 2 Reducers may be furnished in Type 1 configuration.

Reducer Insert Socket Weld

MSS SP-79-2018

Dimensions are in millimeters.

(1) At the option of the manufacturer Type 2 Reducers may be furnished in Type 1 configuration.

Reducer Insert Socket Weld

MSS SP-79-2018

Dimensions are in millimeters.

(1) At the option of the manufacturer Type 2 Reducers may be furnished in Type 1 configuration.

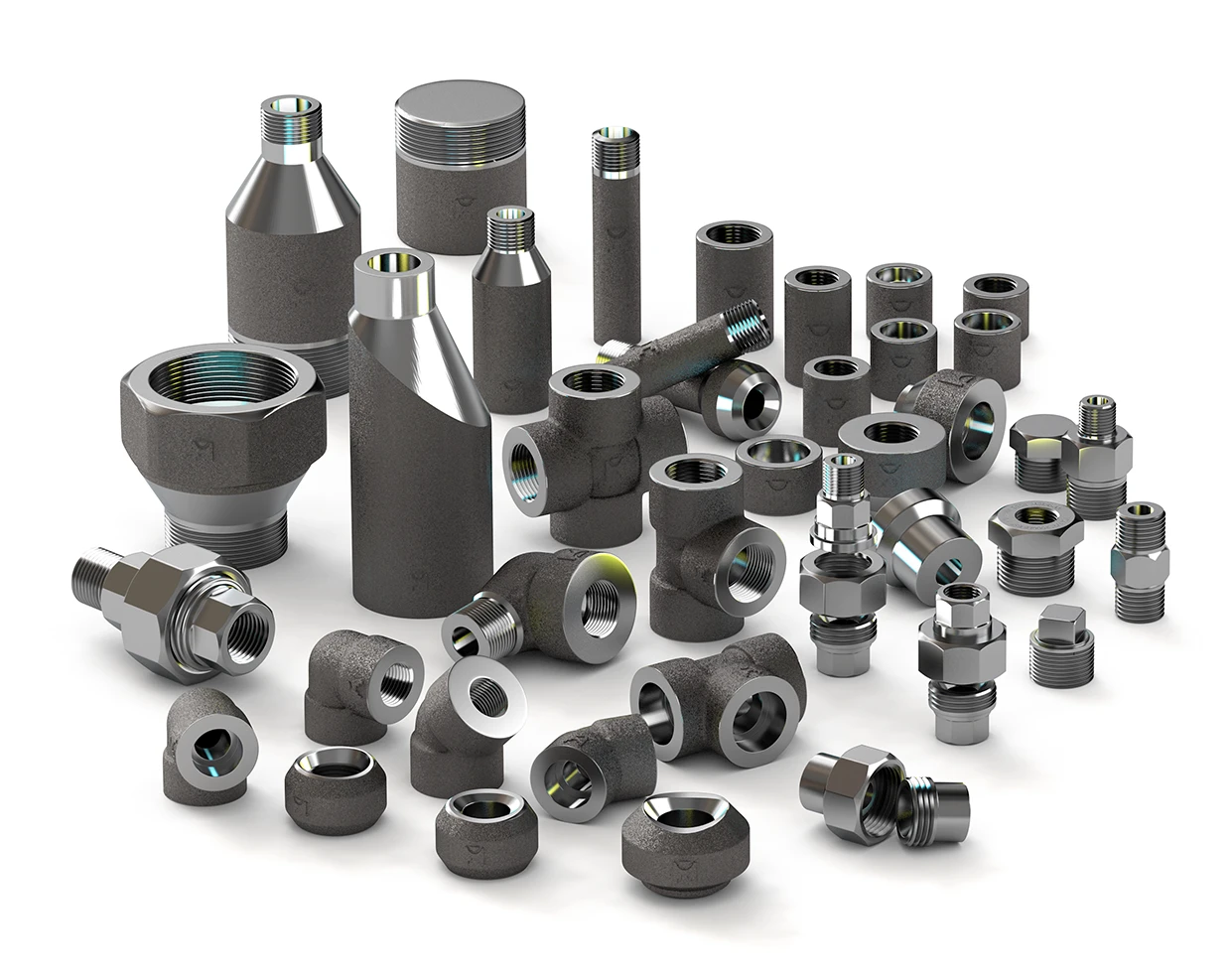

FORGED STEEL PIPE FITTINGS

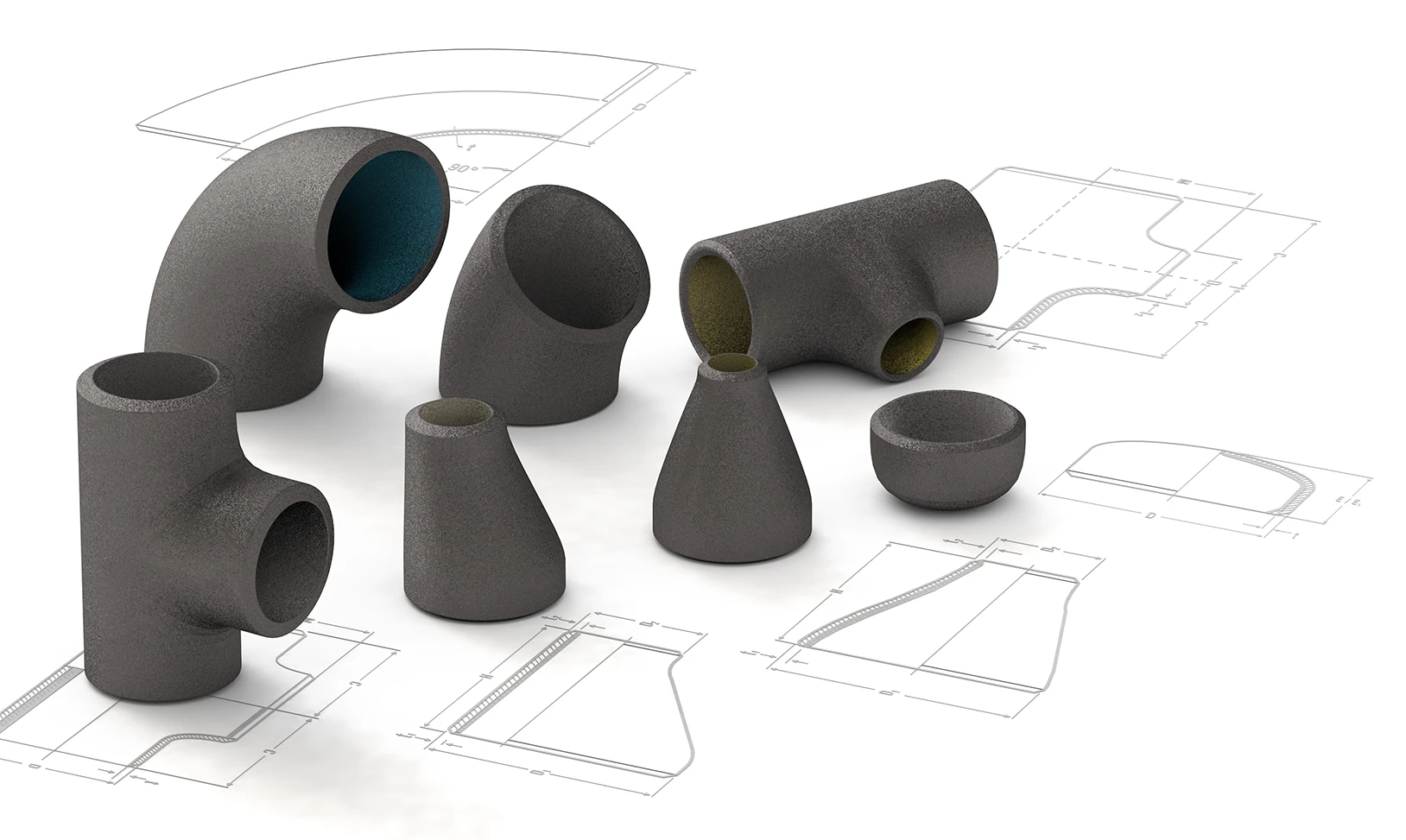

BUTTWELD PIPE FITTINGS

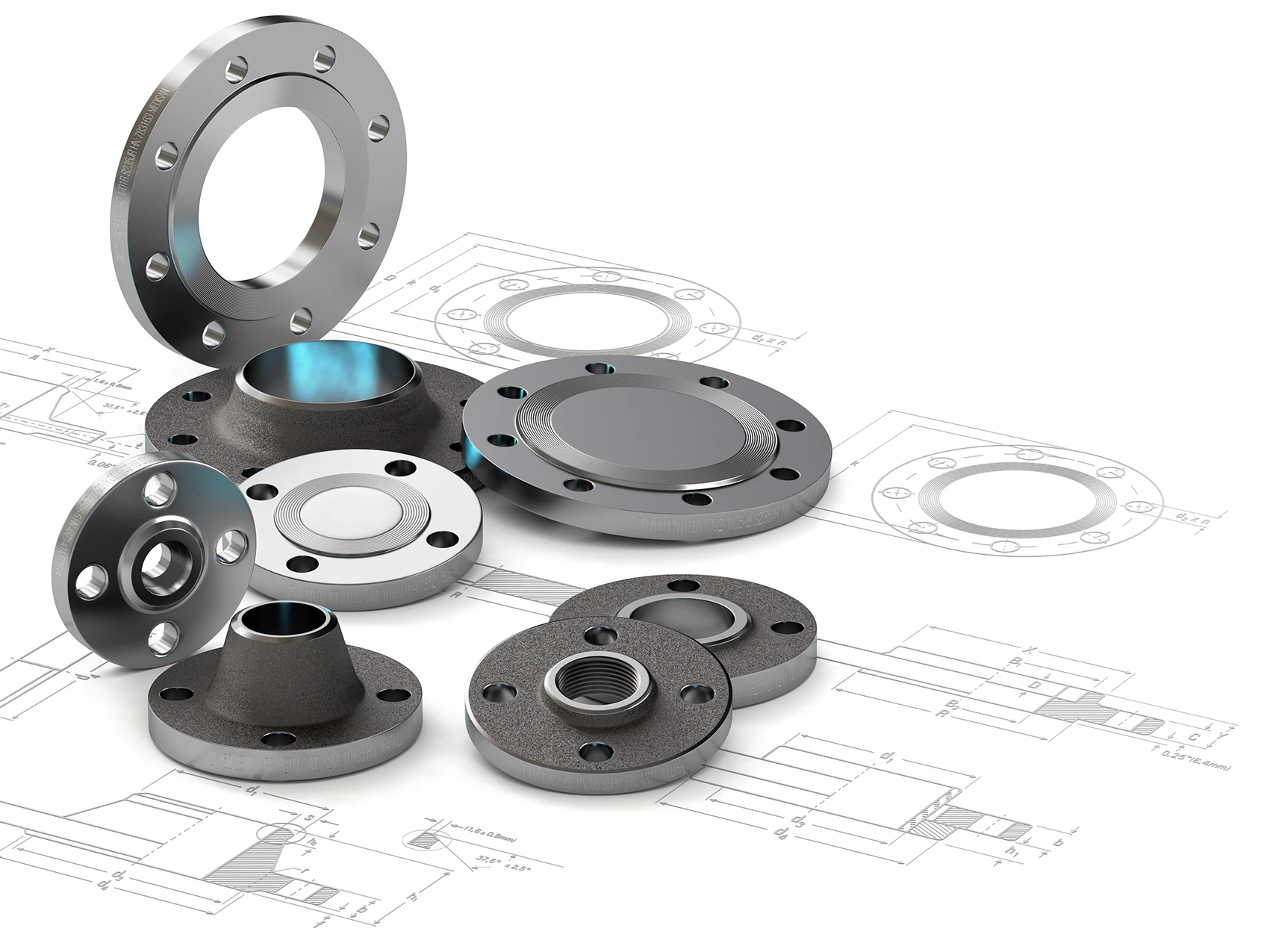

FORGED STEEL FLANGES
