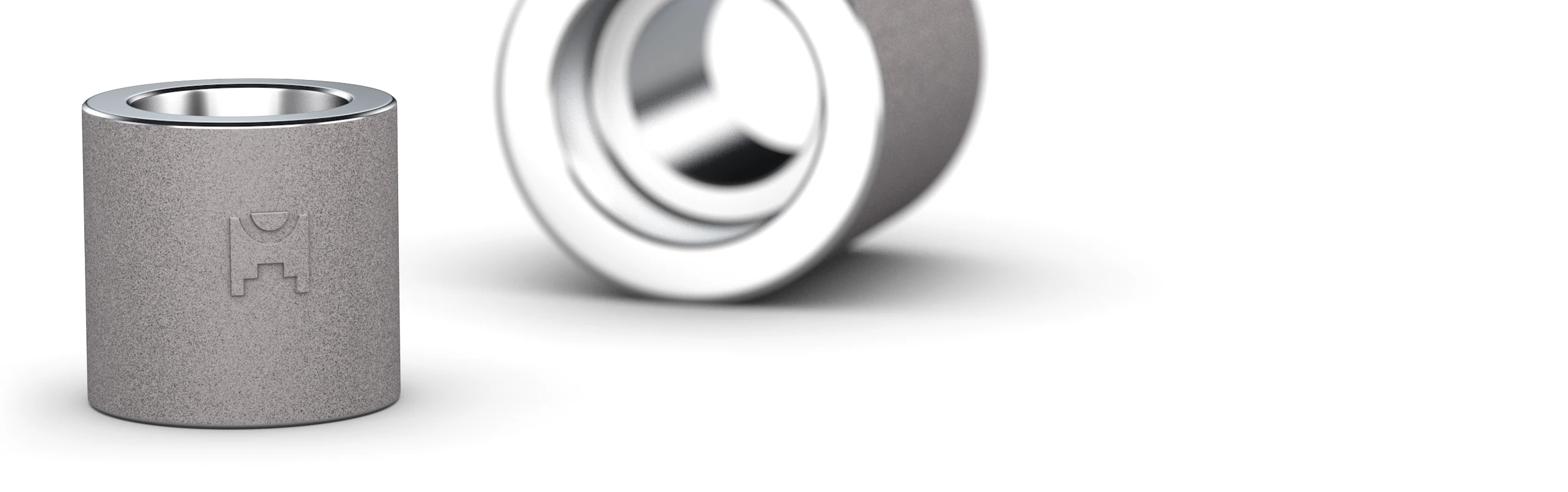

Half Coupling Socket Weld
360° View
Product Description
The socket weld half coupling manufactured by Medisan is a forged steel fitting used to create branch connections in pipelines or outlets by welding onto pressure vessel/tank surfaces. In the form of half a standard coupling, this part features a socket structure on one end for pipe insertion, while the other end is plain for welding to the main pipe or tank body. Manufactured in accordance with the ASME B16.11 standard, half couplings provide reliable sealing in Class 3000, 6000, and 9000 pressure classes.
Our products are manufactured from carbon steel (ASTM A105 / A105N), stainless steel (A182 F304 / F316), and alloy steel (A182 F11 / F22) materials. It offers an economical and robust solution, especially for integrating small-diameter lines into large-diameter pipes or tanks.
Read More…
Applications
Pressure vessel and tank outlets
Branching in pipelines
Vent and drain lines
Instrument connection points
Oil and chemical industry applications
Read More…
Quality and Certification
Medisan carries out all half coupling production under the assurance of PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications, guaranteeing material quality and dimensional precision.
Read More…

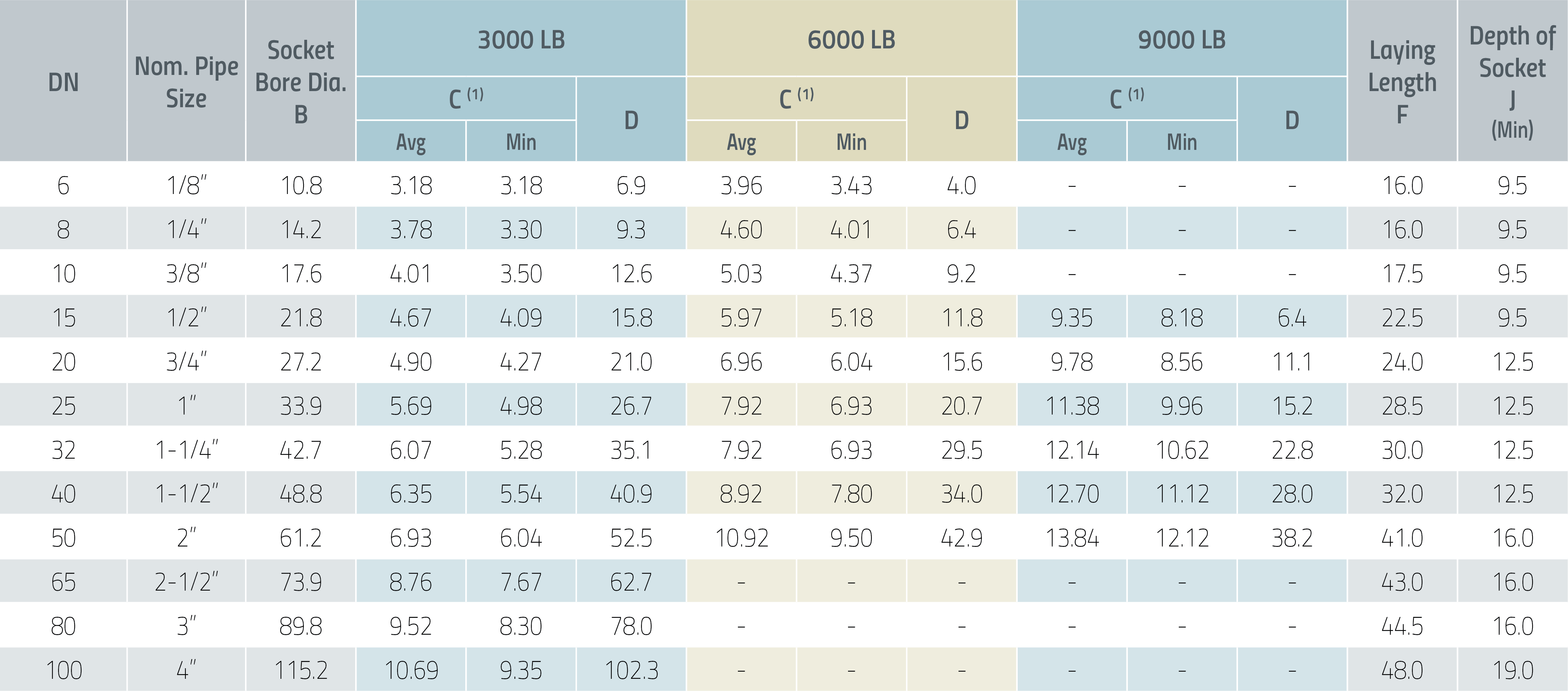

ASME B16.11-2021
Dimensions are in millimeters.
(1) Average of socket wall thickness around periphery shall be no less than listed values. The minimum values are permitted in localized areas.
(2) Reducer: “C, J, E” in accordance with large size, “D” in accordance with small size and the others in accordance with each size.
