90ยฐ Elbow Threaded
รrรผn Aรงฤฑklamasฤฑ

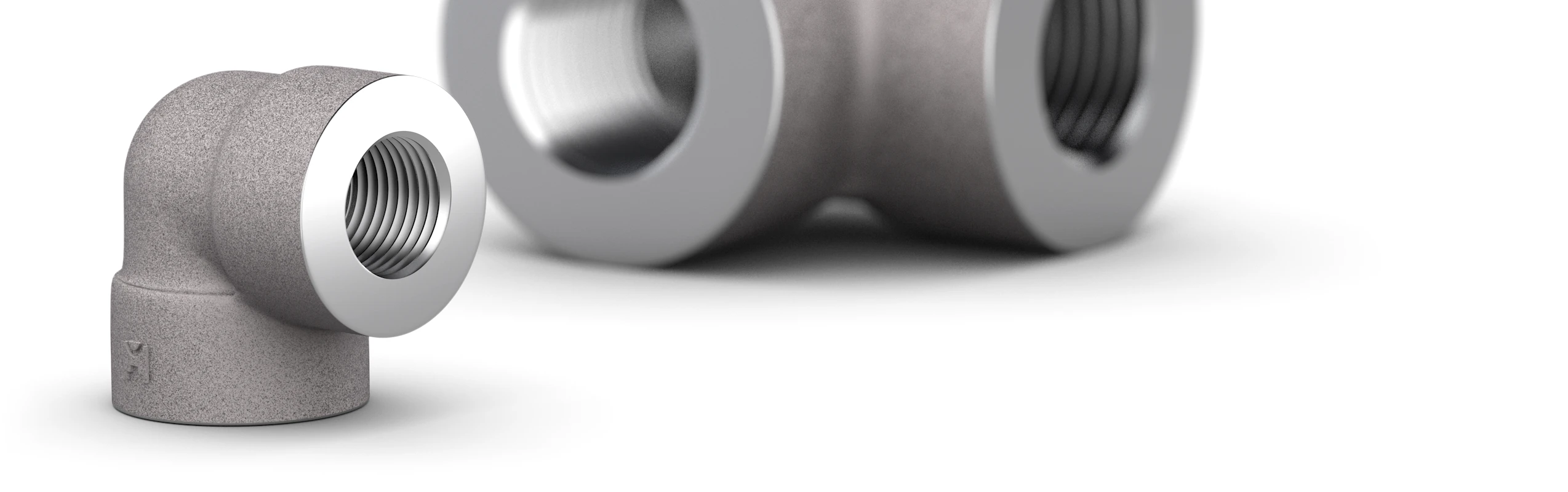

90ยฐ threaded elbows manufactured by Medisan are used to change the flow direction in pipelines by 90 degrees. These fittings comply fully with ASME B16.11 standards and are produced in 2000, 3000, 6000, and 9000 pressure classes.
Our products are manufactured using the forging method from carbon steel (ASTM A105 / A105N), stainless steel (A182 F304 / F316), and alloy steel (A182 F11/F22) materials. Precision CNC machining ensures that each elbow provides high sealing, strength, and superior surface quality.
Read Moreโฆ
Kullanฤฑm Alanlarฤฑ
Oil and natural gas refineries
Chemical and petrochemical plants
Power generation and steam lines
Pressurized liquid and gas pipelines
Fire suppression and process lines
Read Moreโฆ
Kalite ve Sertifikasyon
Medisan holds 2014/68/EU Pressure Equipment Directive (PED) certification and Class BV Factory Approval Certificate (Bureau Veritas).
Material traceability, dimensional control, and surface quality inspections are implemented in the production process according to international quality standards.
Read Moreโฆ

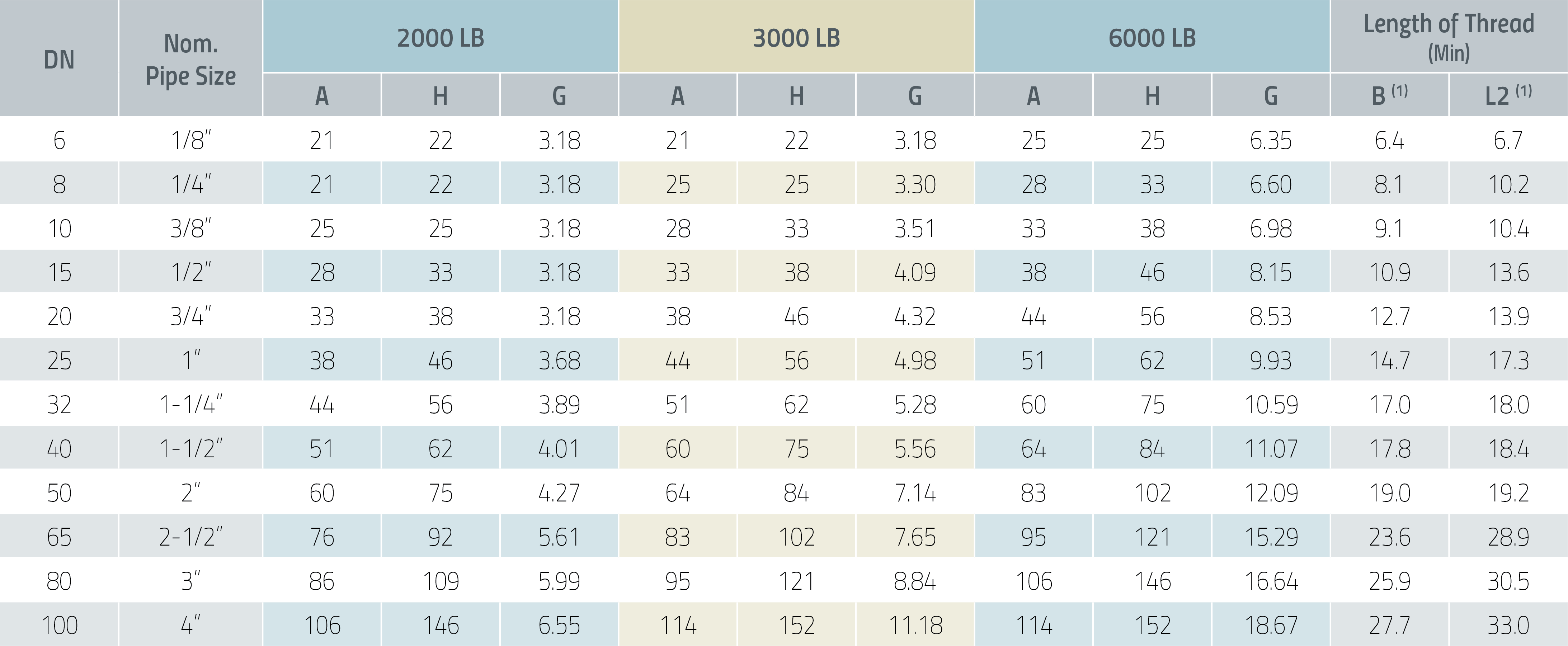

ASME B16.11-2021
Dimensions are in millimeters.
(1) Dimension B is minimum length of perfect thread. The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than L2 (effective length of external thread) required by American National Standard for pipe threads (ANSI / ASME B1.20.1).
