Slip On Flanges Class 600

360° View

Product Description

Slip-On Flanges are durable fittings suitable for demanding industrial applications in the Class 600 pressure class, assembled by sliding the pipe into the flange hub and welding it from both the inside and outside. Being more economical than welding neck flanges and providing tolerance in pipe length adjustment, they offer a practical solution for the installation of high-pressure lines.

Standards and Material:

Standards: ASME B16.5 - Class 600
Material: ASTM A105 (Carbon Steel), A182 F304/F316 (Stainless Steel), A182 F11/F22 (Alloy Steel)
Face Types: RF (Raised Face), RTJ (Ring Type Joint), FF (Flat Face)
Size Range: ½" - 24"

Applications

These flanges are generally preferred in high-pressure steam lines, oil refineries, natural gas transmission lines, and hydraulic systems. They provide safe usage especially at points where sealing is critical, often with the RTJ face type.

Quality and Certification

Slip-On Flanges manufactured by Medisan are fully compliant with the ASME B16.5 standard and offer superior sealing performance in the Class 600 pressure class. Each product is under quality assurance with PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications.

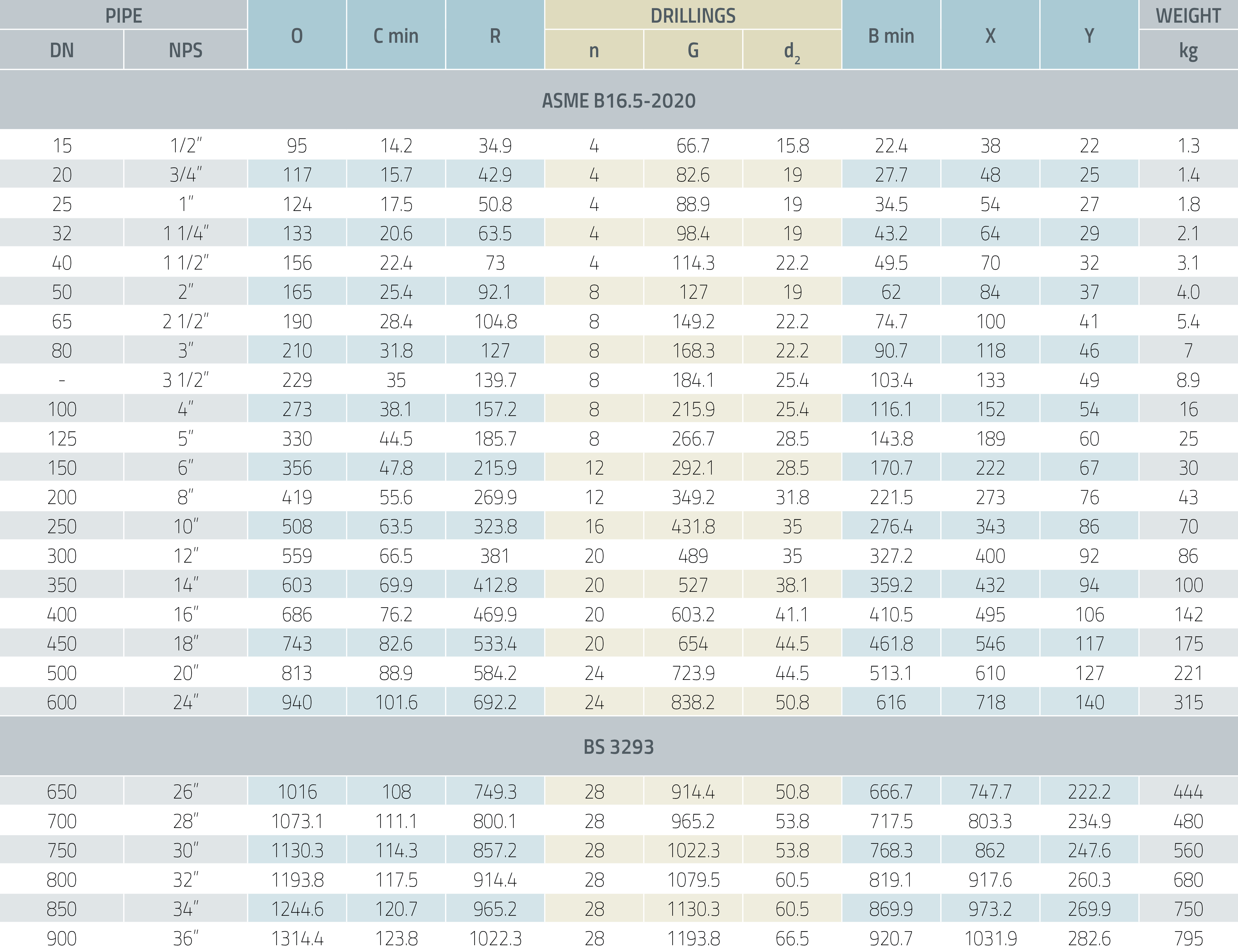

ASME B16.5-2020

MSS SP-44-2019

BS 3293

Dimensions are in millimeters.
