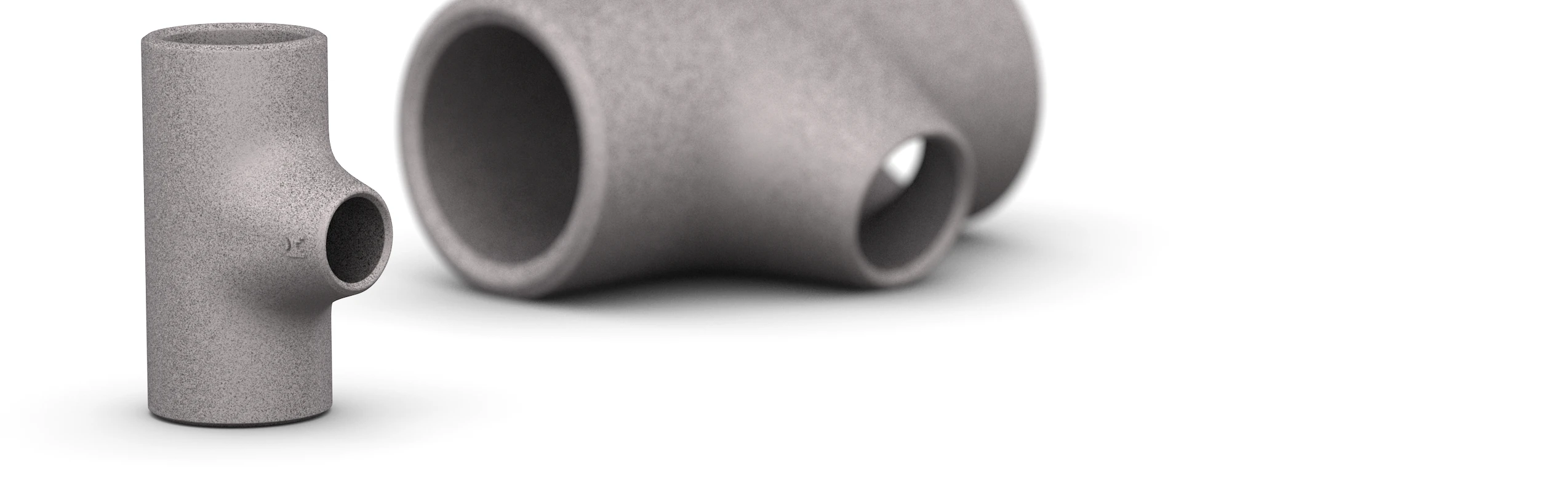

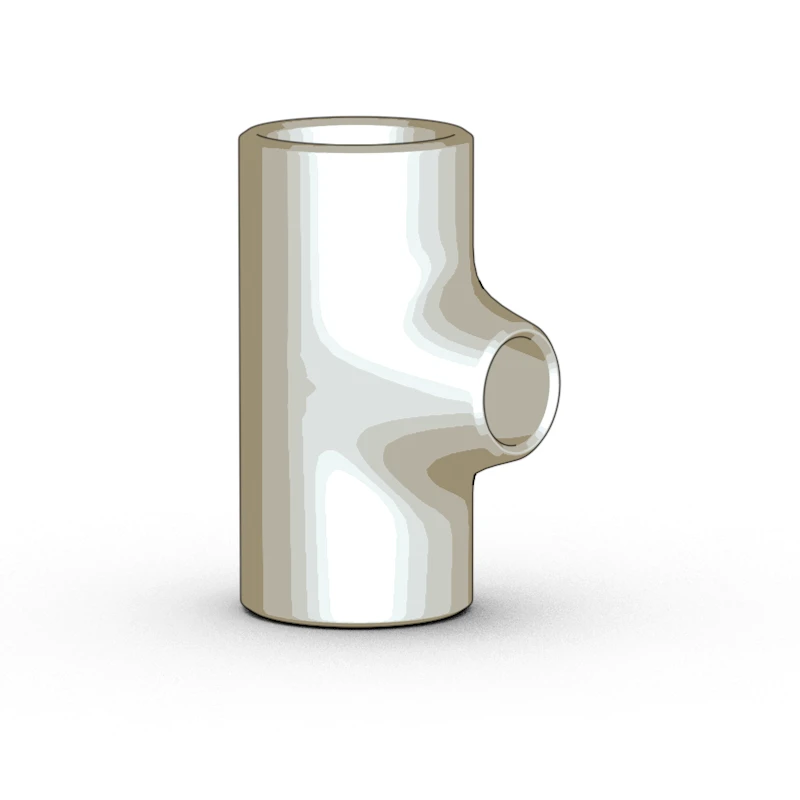

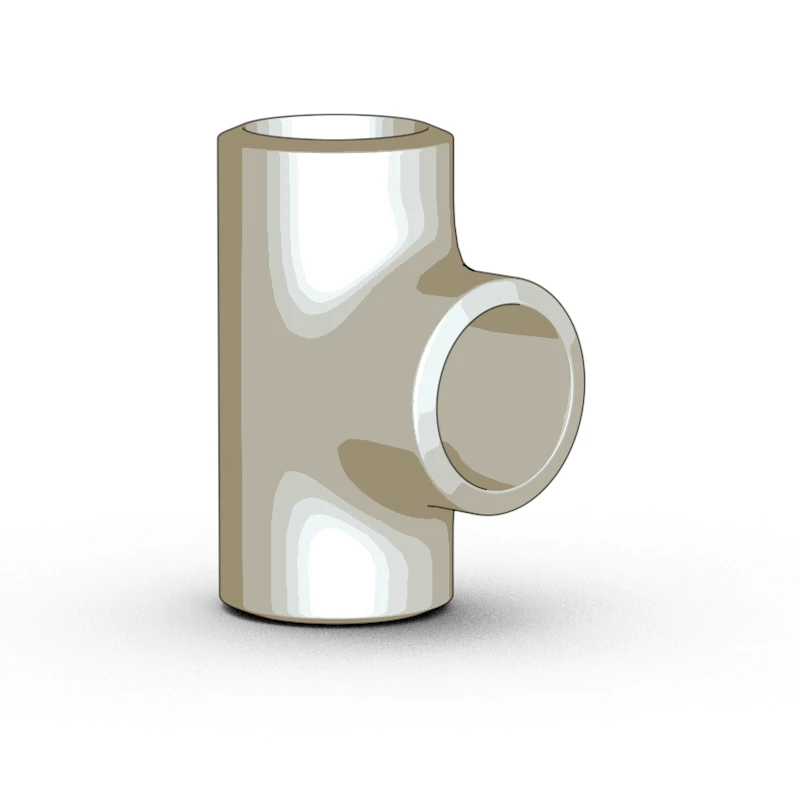

Reducing Tee
360° View
Product Description
The Reducing Tee is a fitting used to provide a branch line outlet of a smaller diameter from the main pipeline. It creates a three-way connection, but one of the outlets has a narrower diameter than the others. This design is ideal for systems where flow direction needs to be split or different line diameters need to be combined.
Read More…
Applications
Frequently preferred in oil, gas, petrochemical, and power plant piping systems.
Read More…
Quality and Certification
Medisan Reducing Tees are manufactured from high-quality carbon steel, stainless steel, and alloy steel materials in accordance with the ASME B16.9 standard. Its butt weld connection structure ensures high pressure resistance and sealing. The production process is audited by PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications.
Read More…
ASME B16.9-2018
MSS SP-75-2019

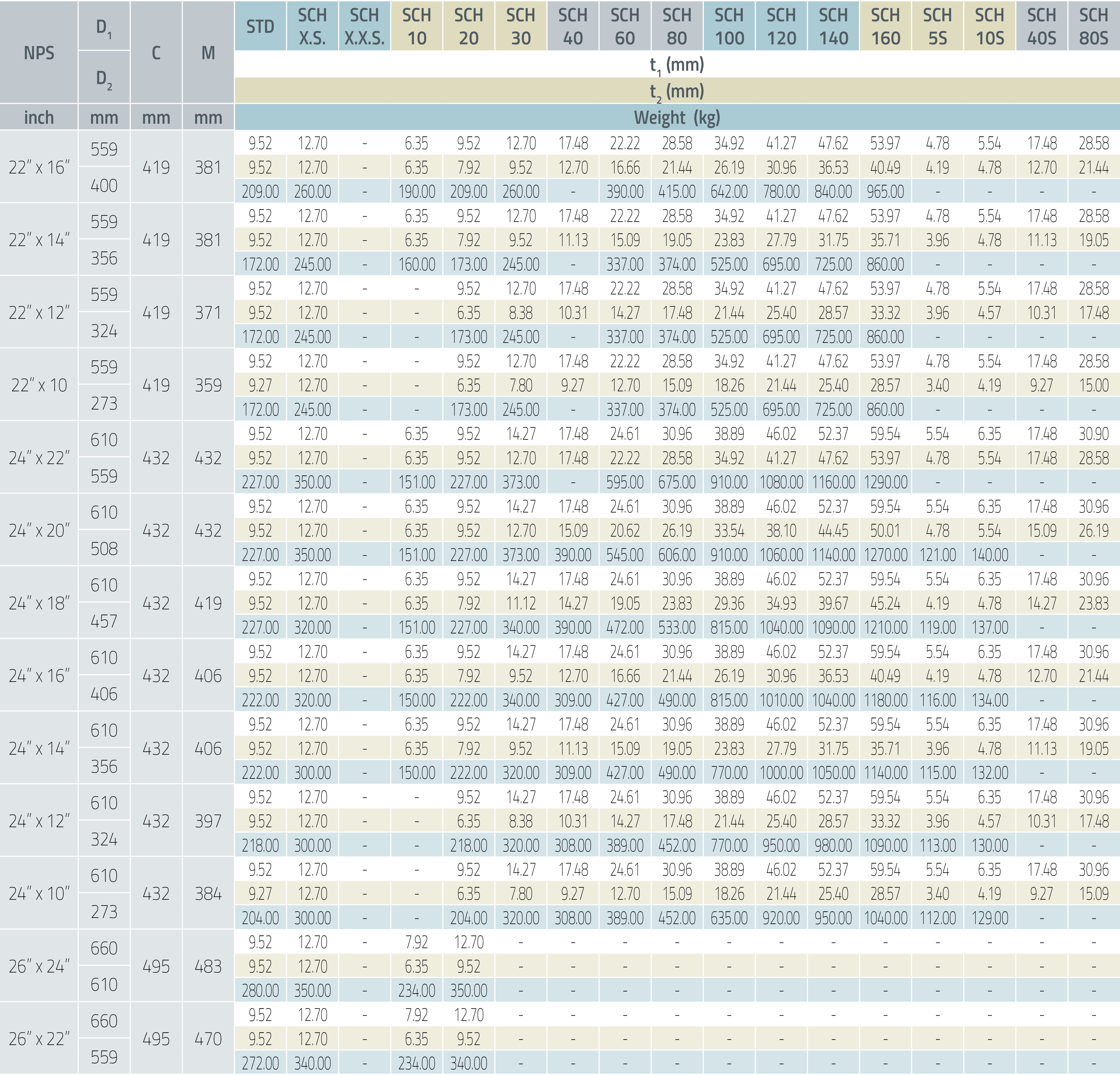

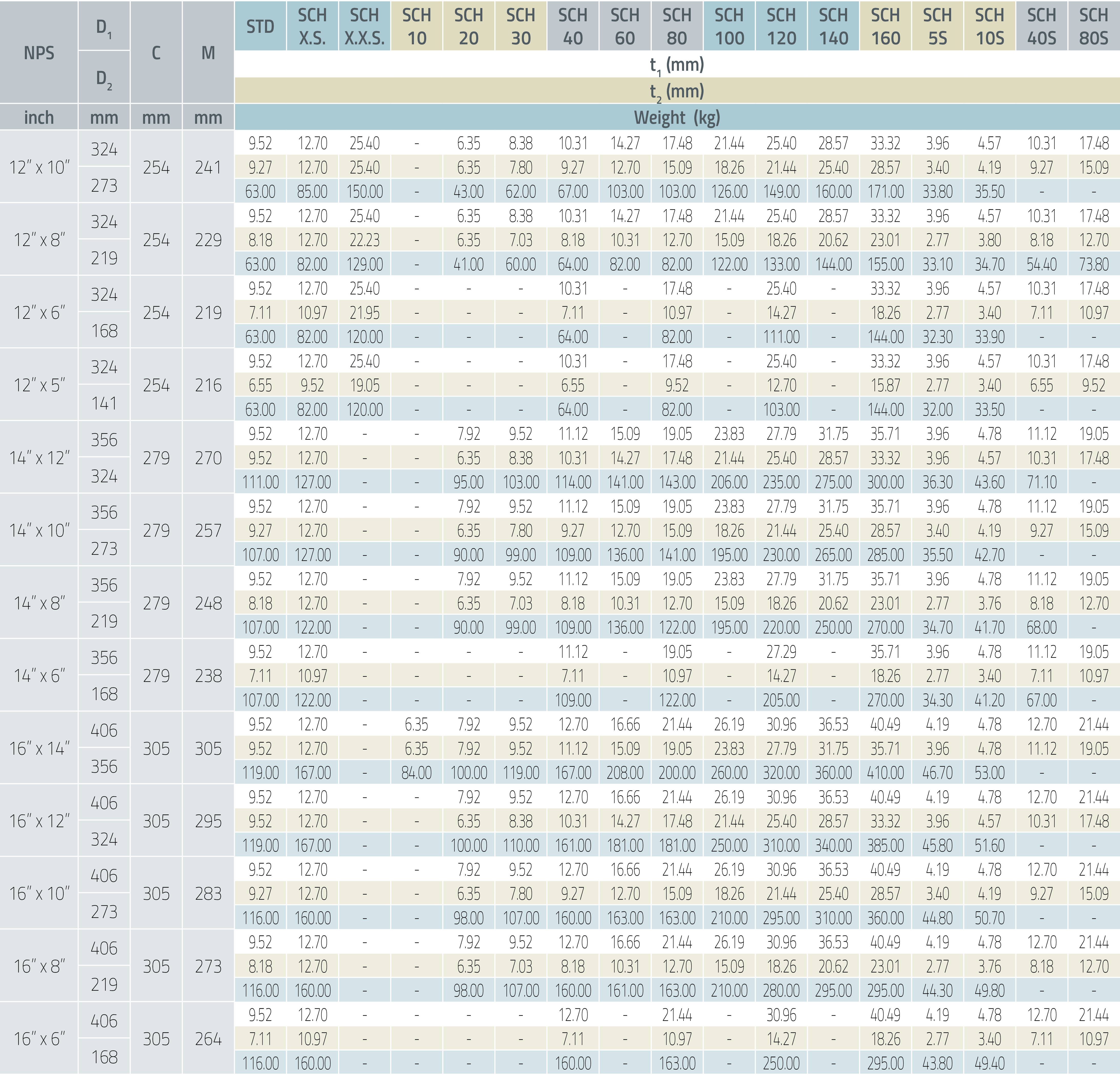

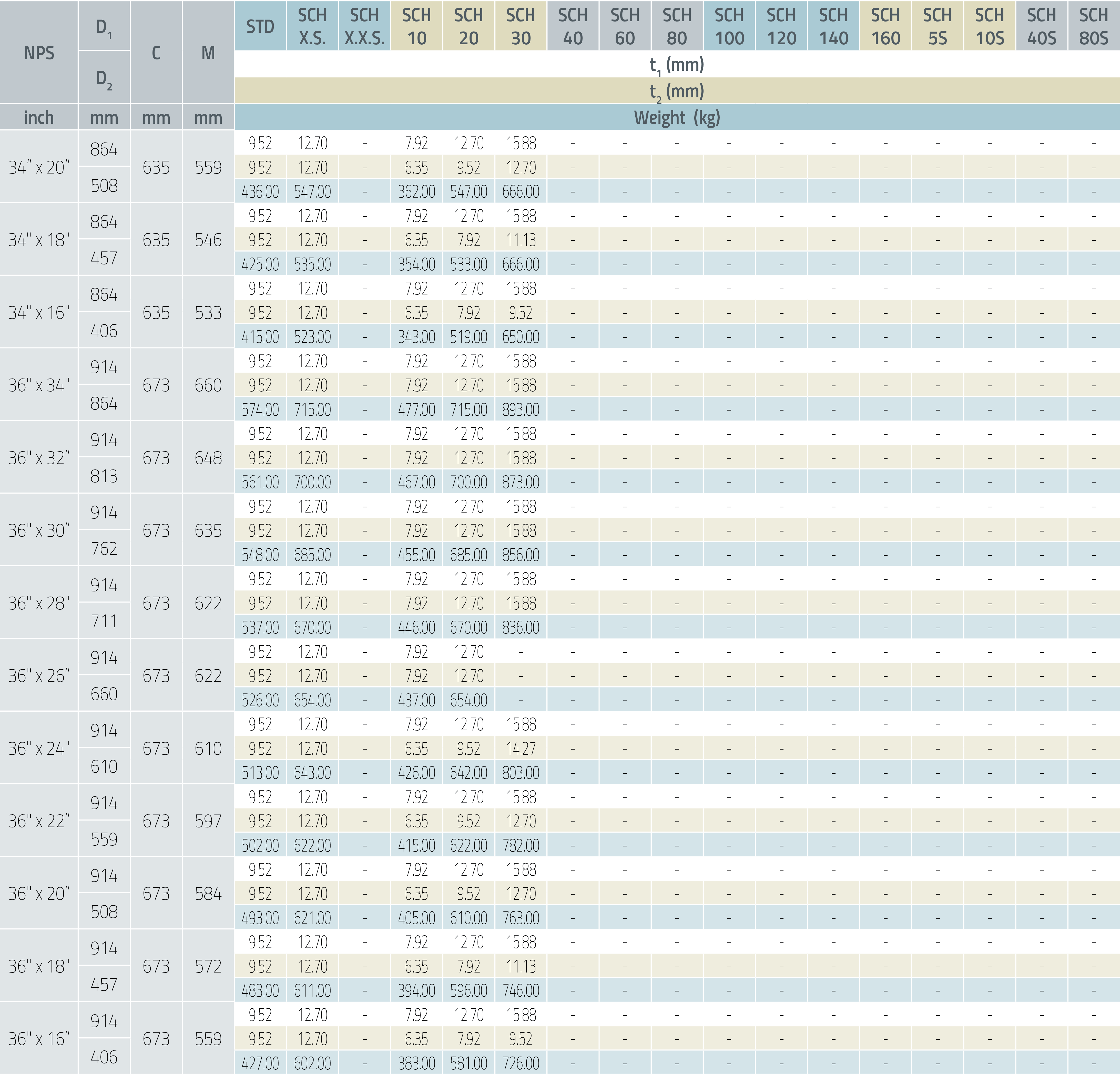

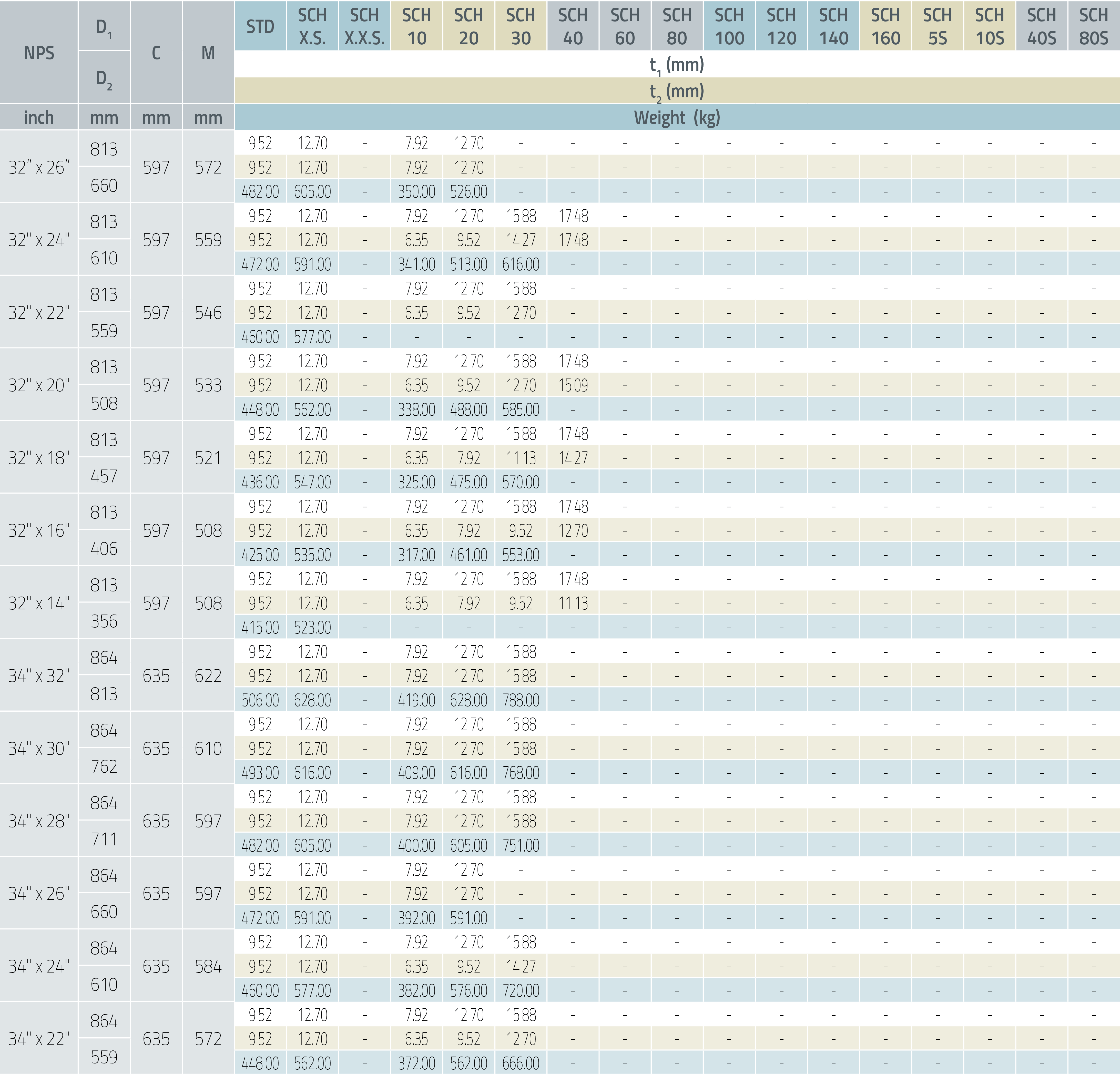

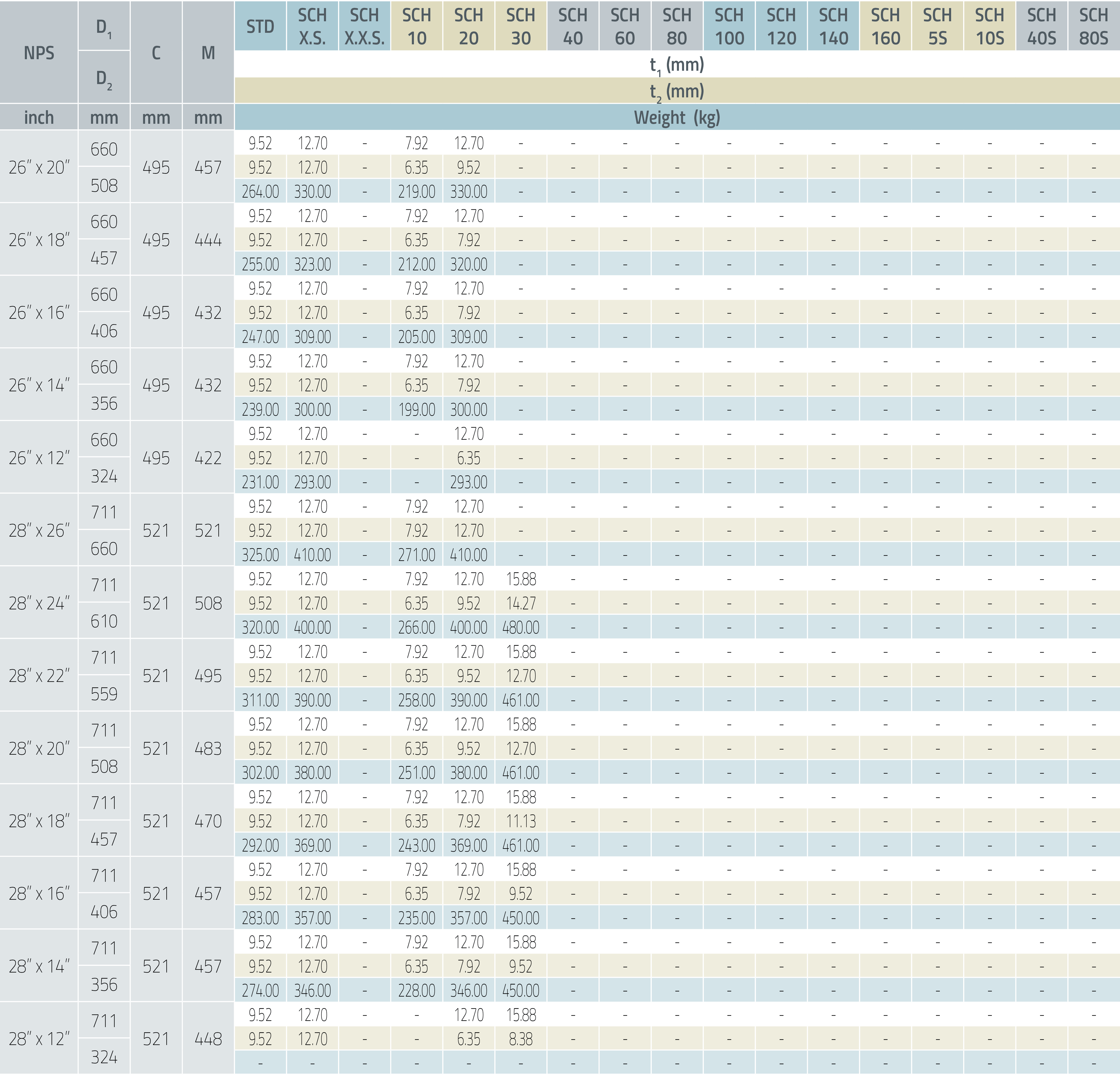

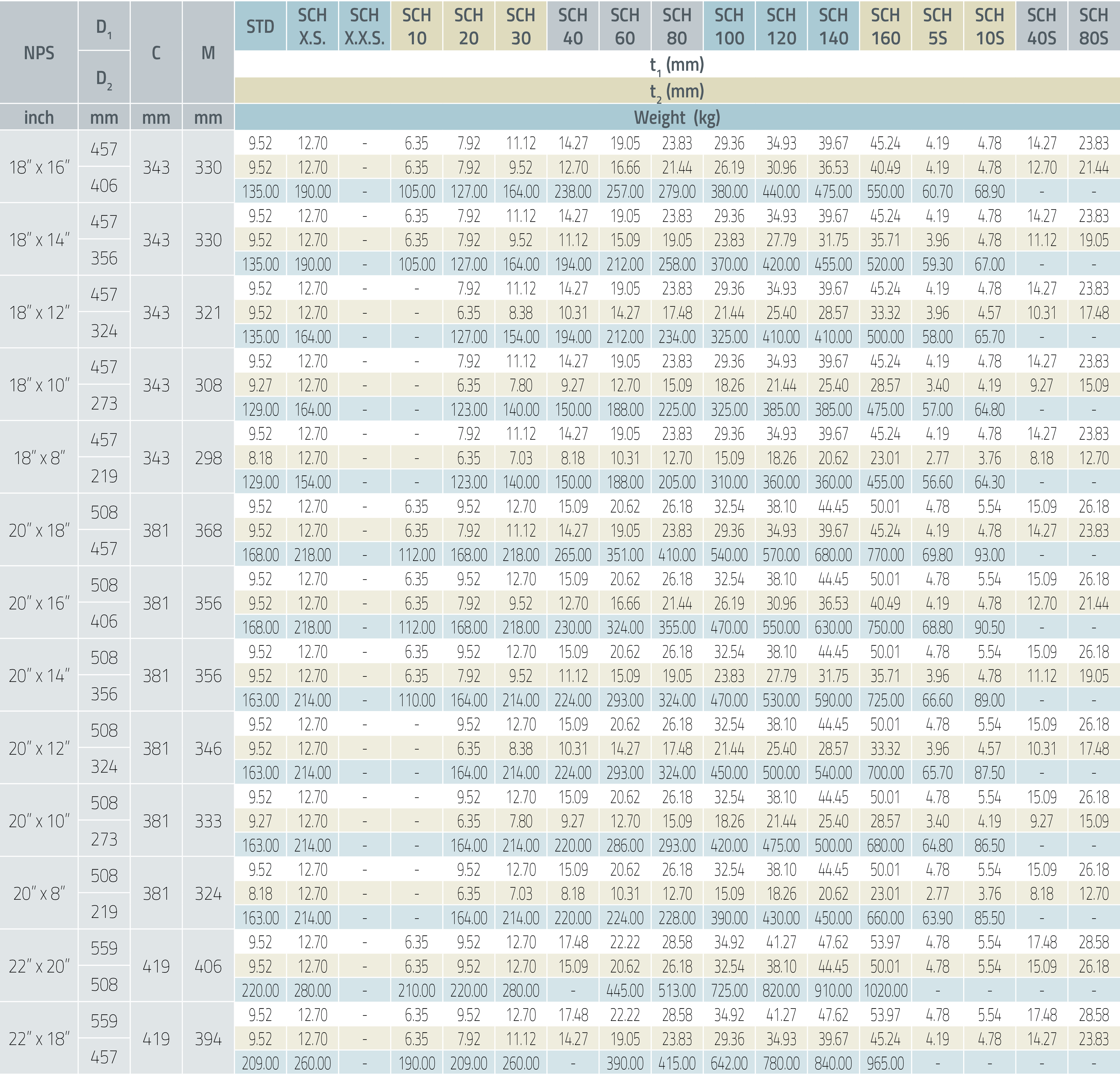

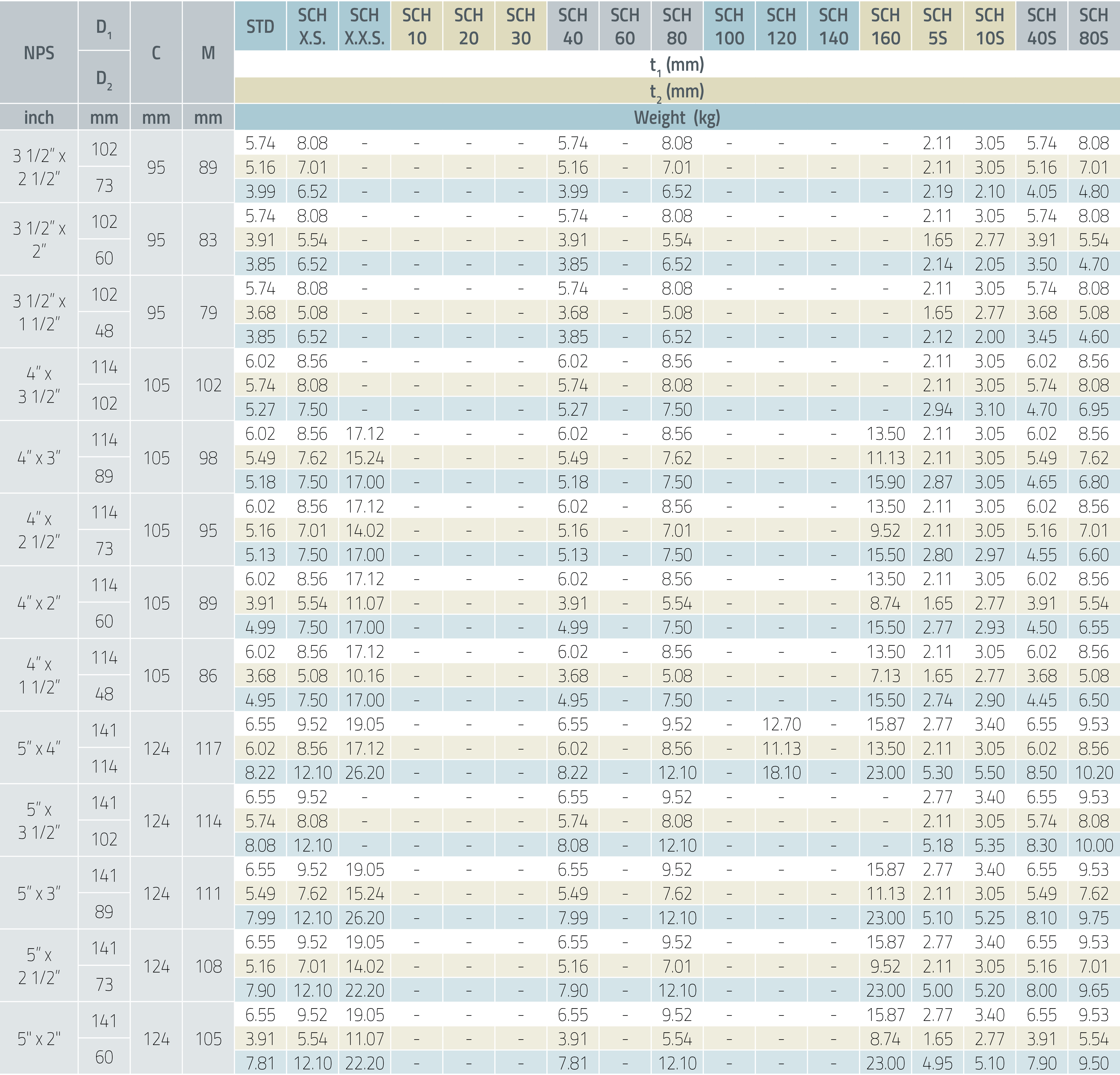

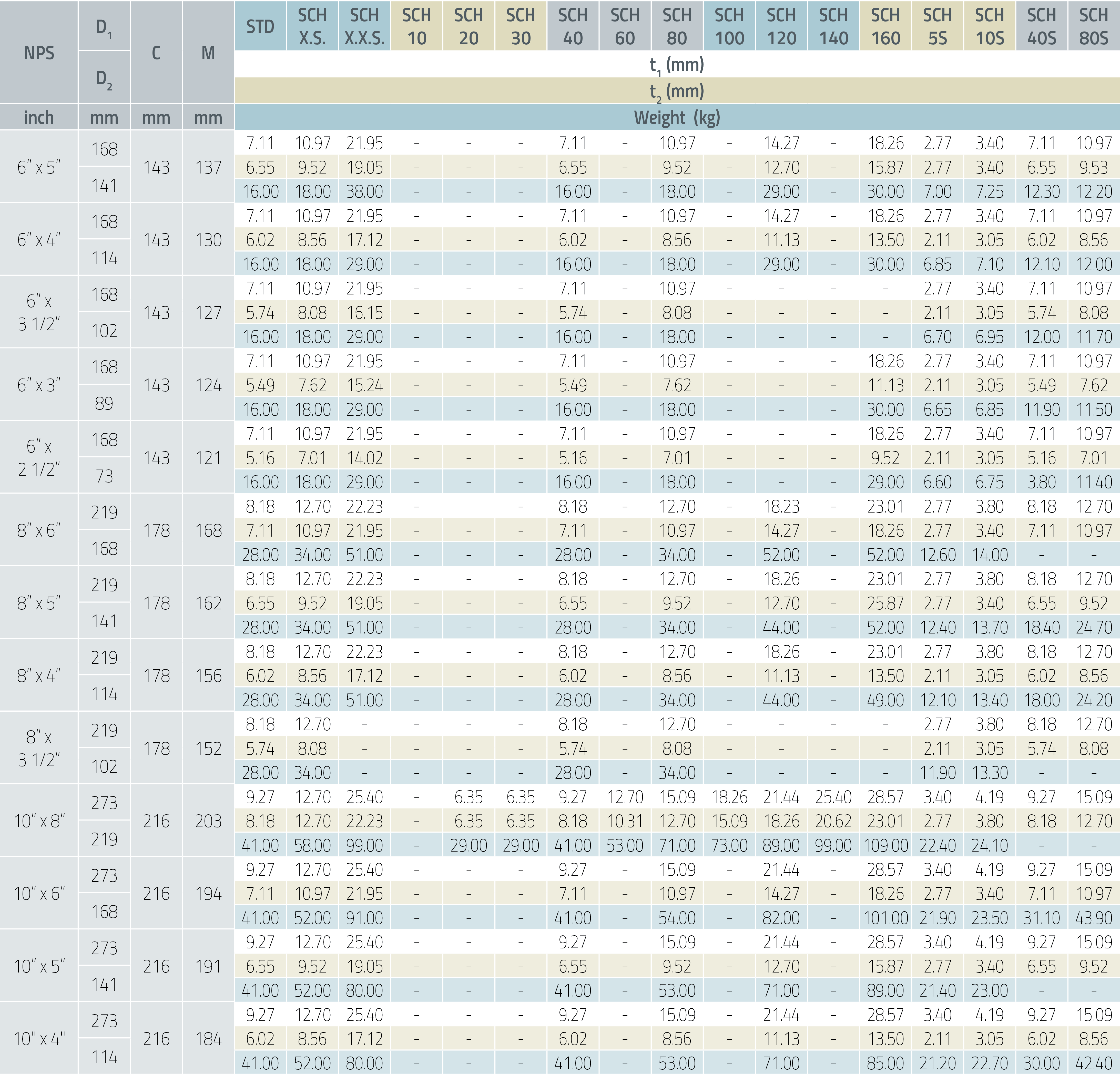

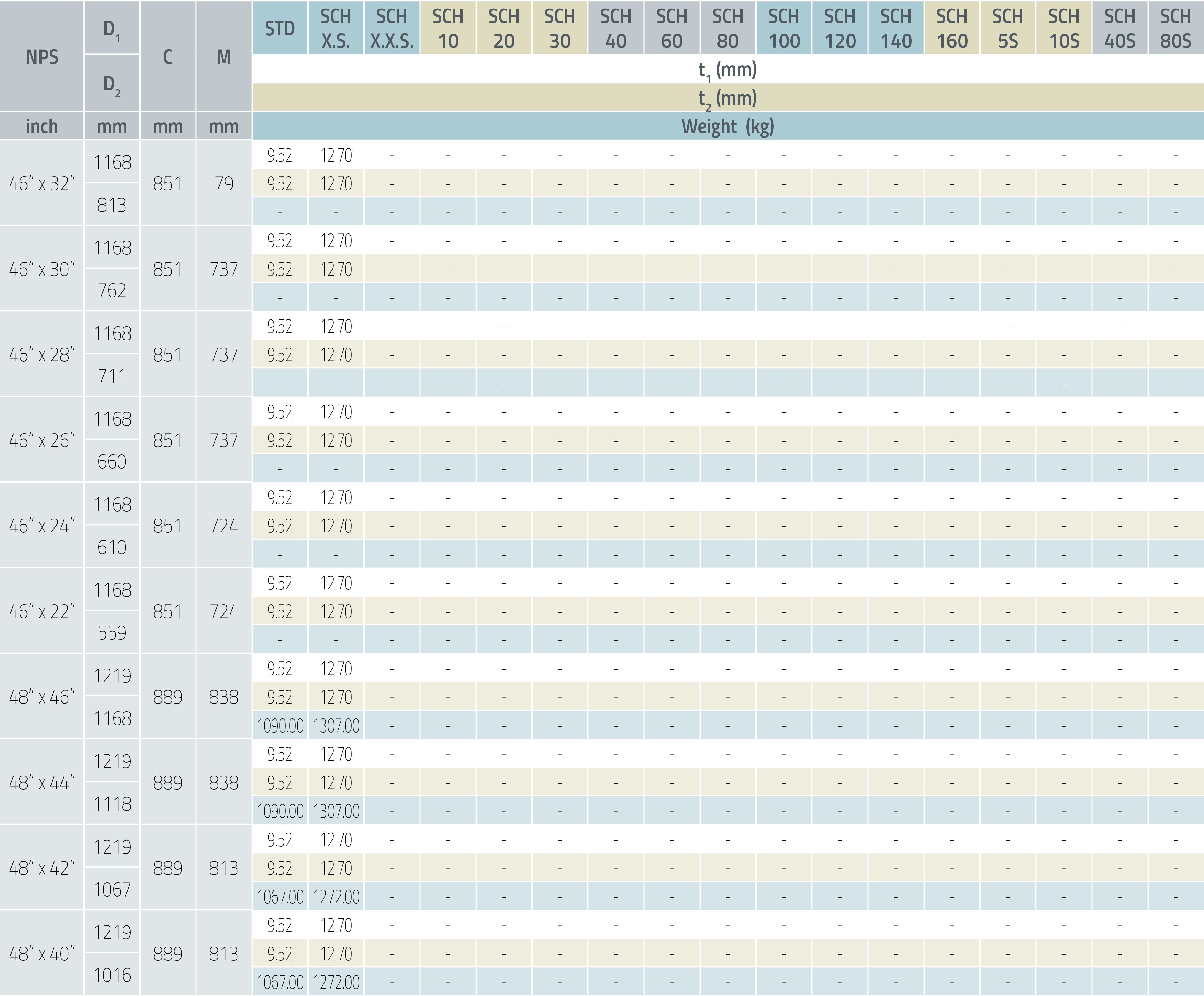

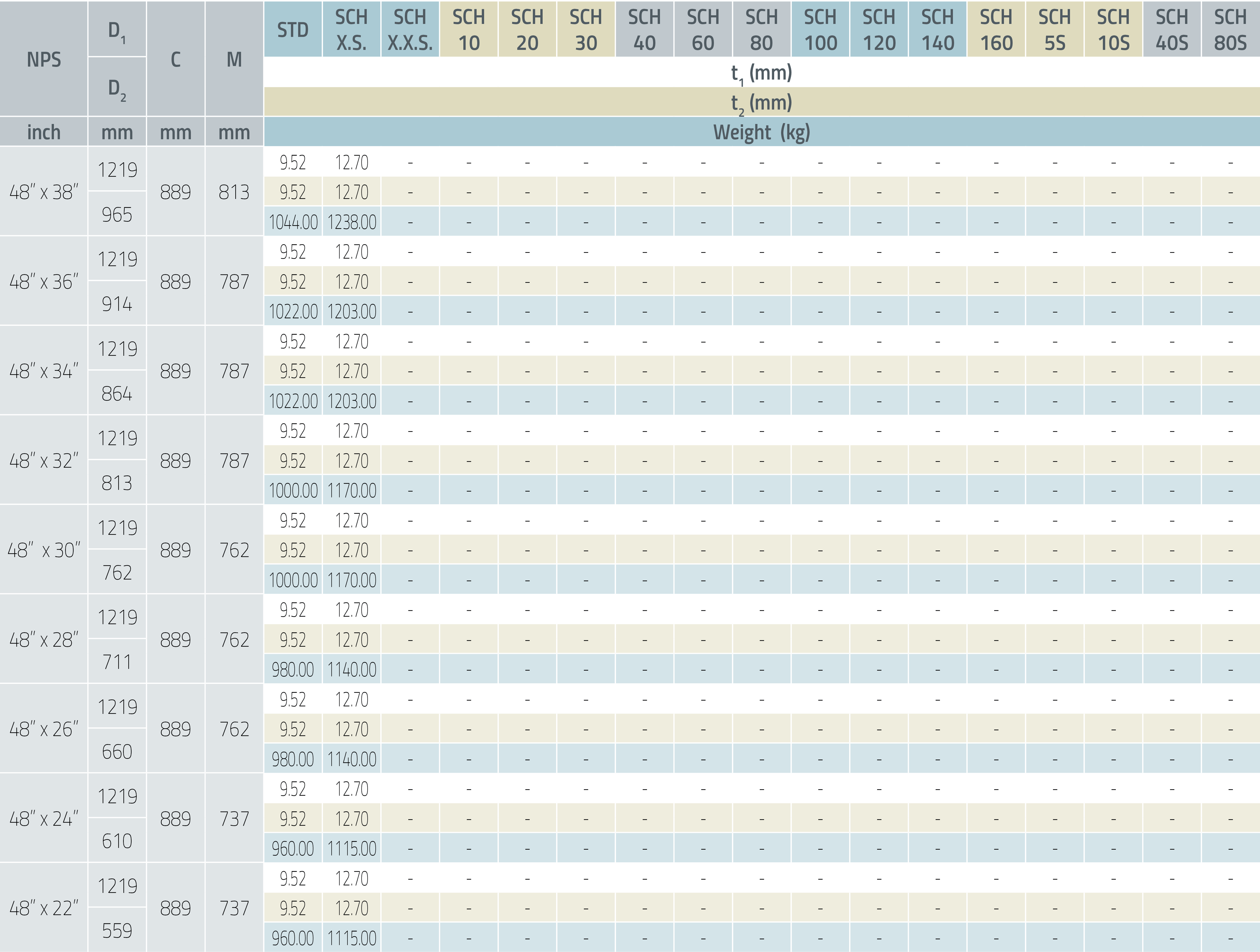

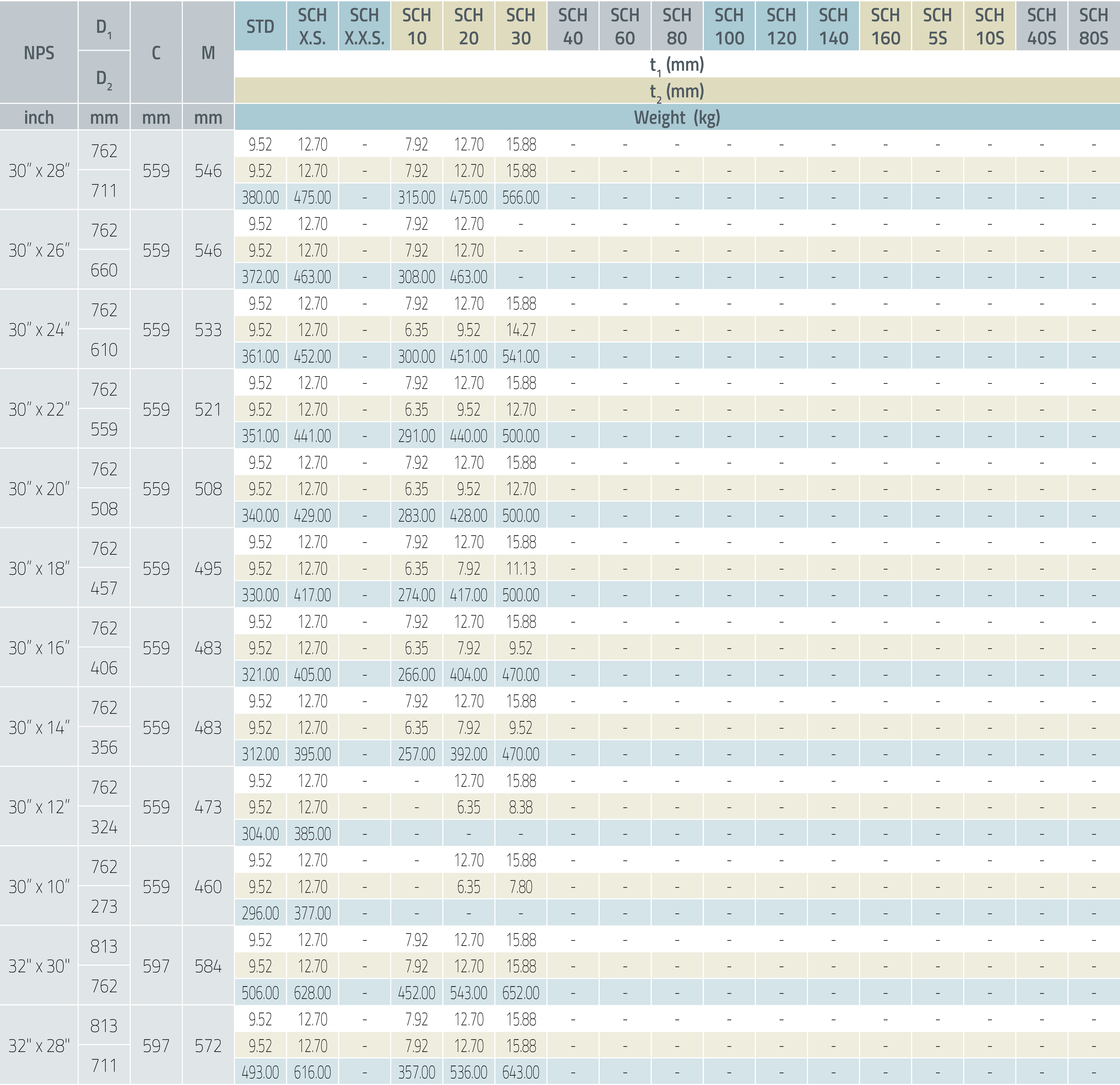

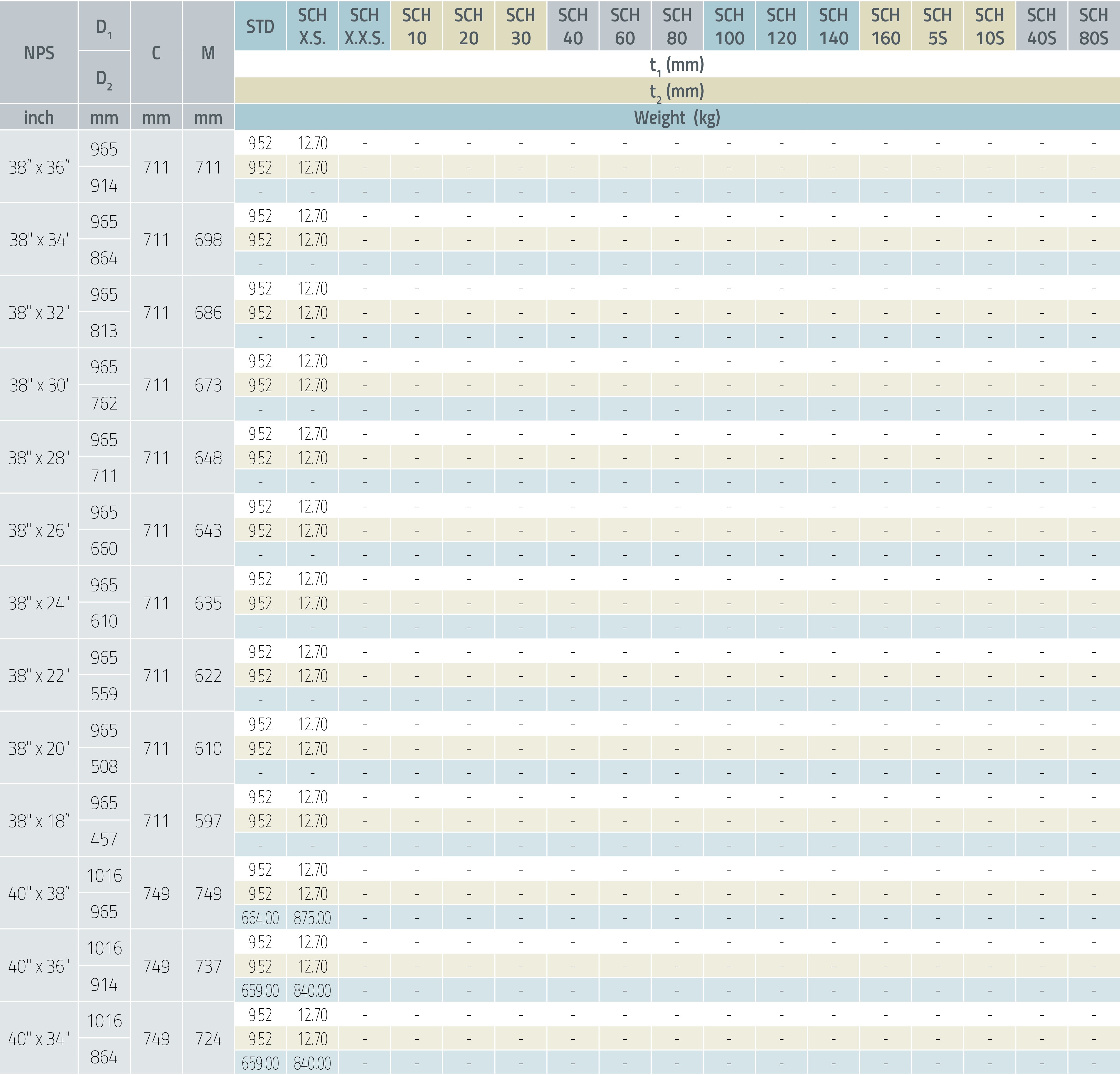

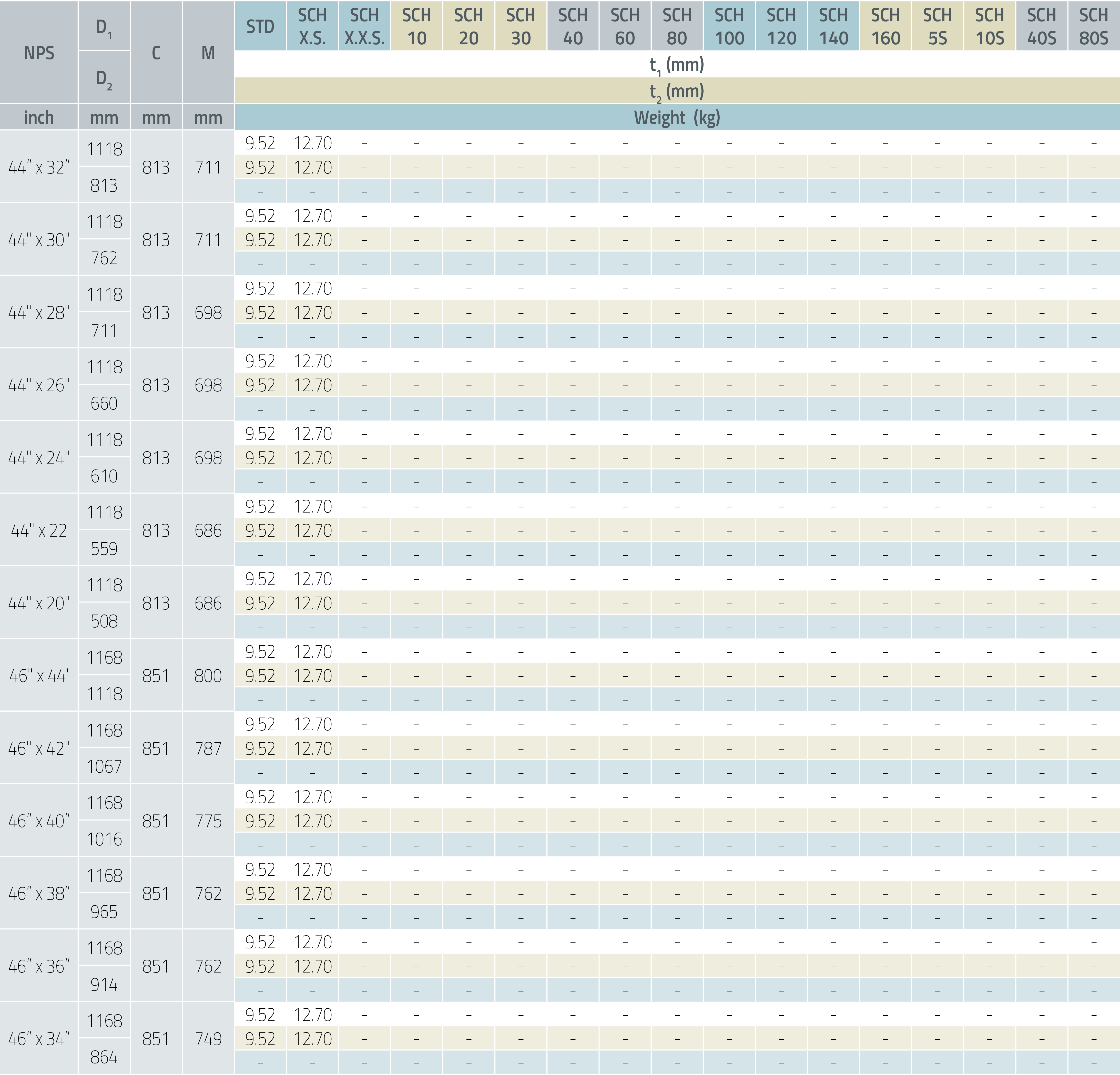

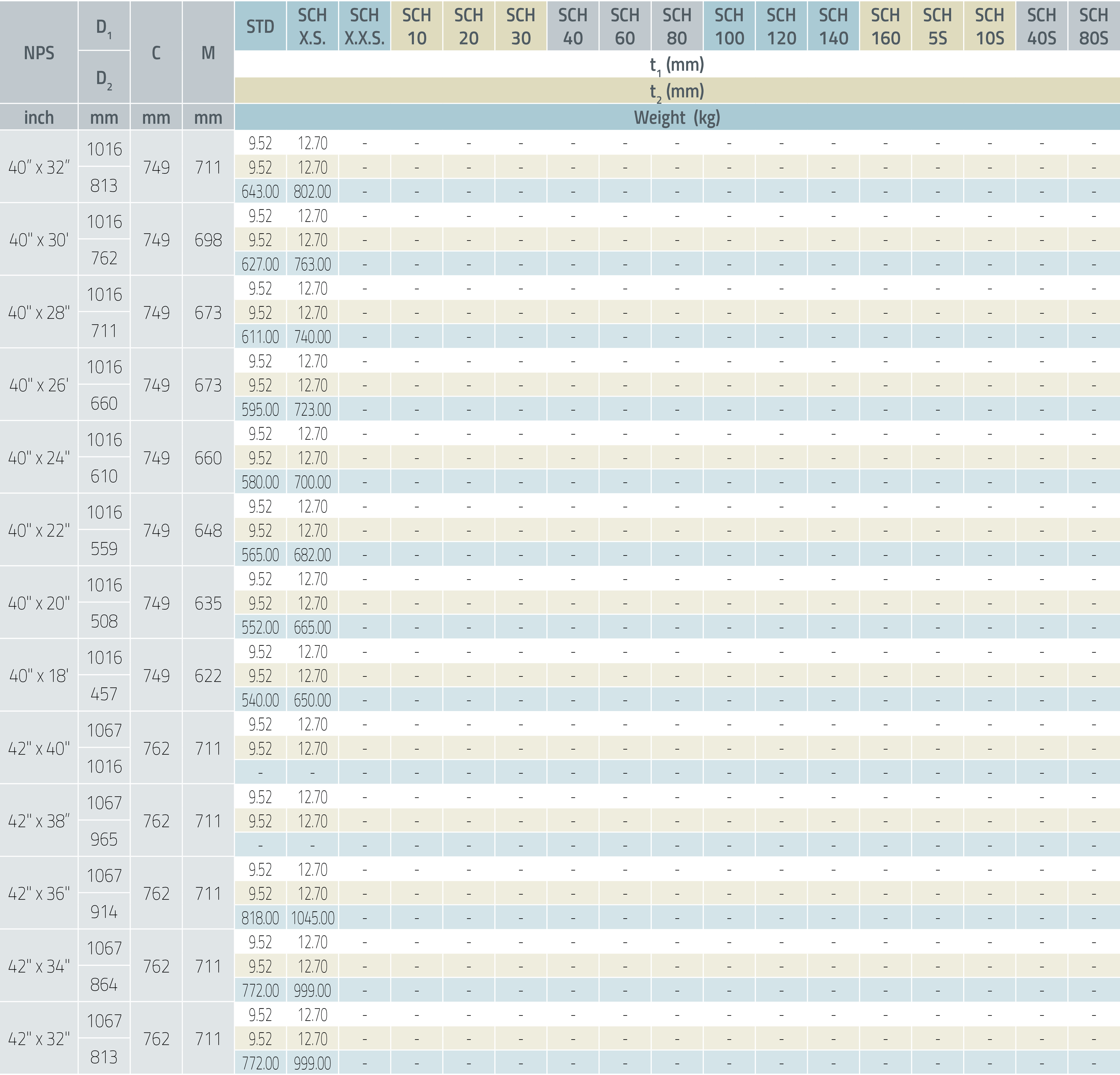

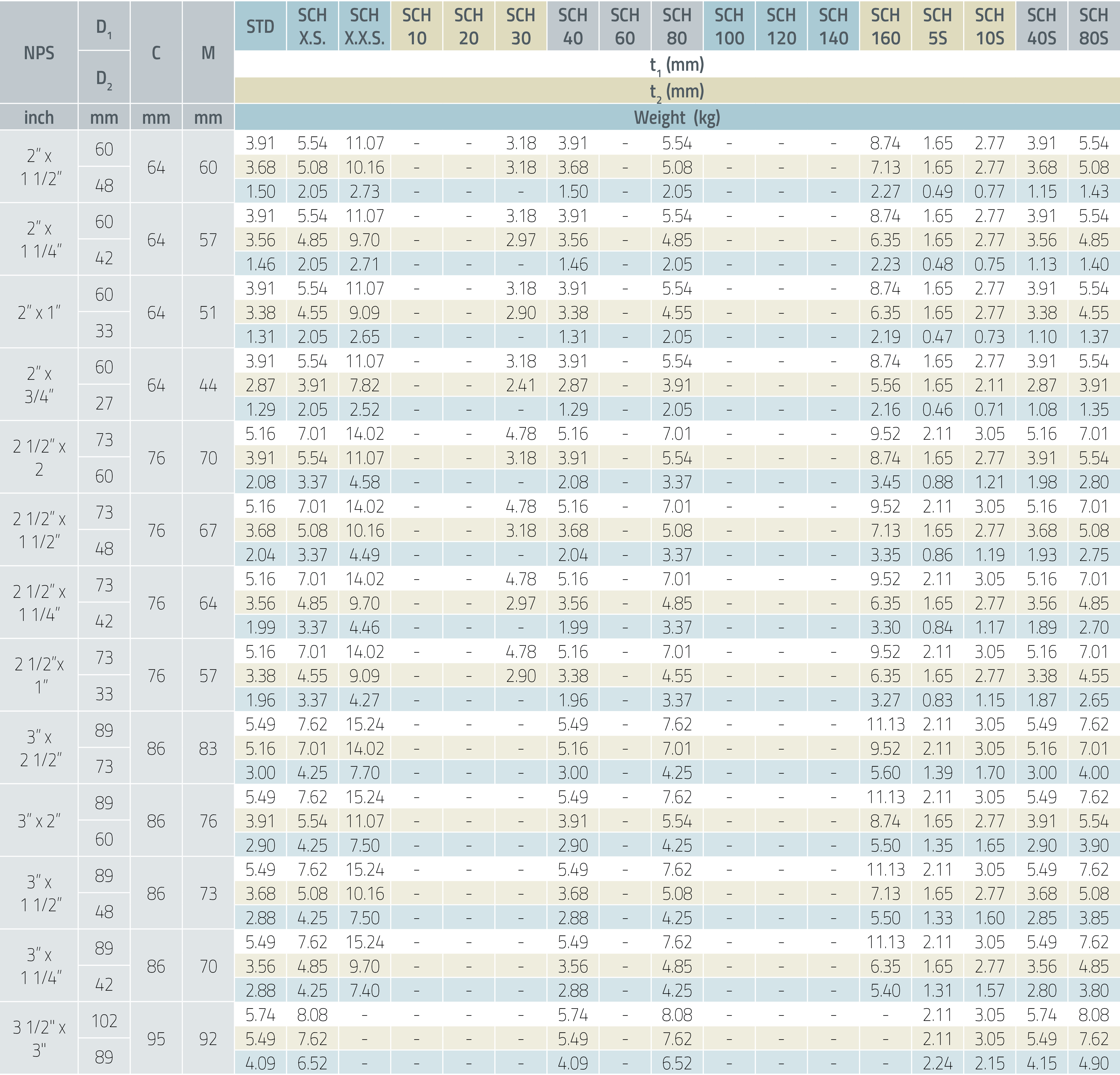

Dimensions are in millimeters.
