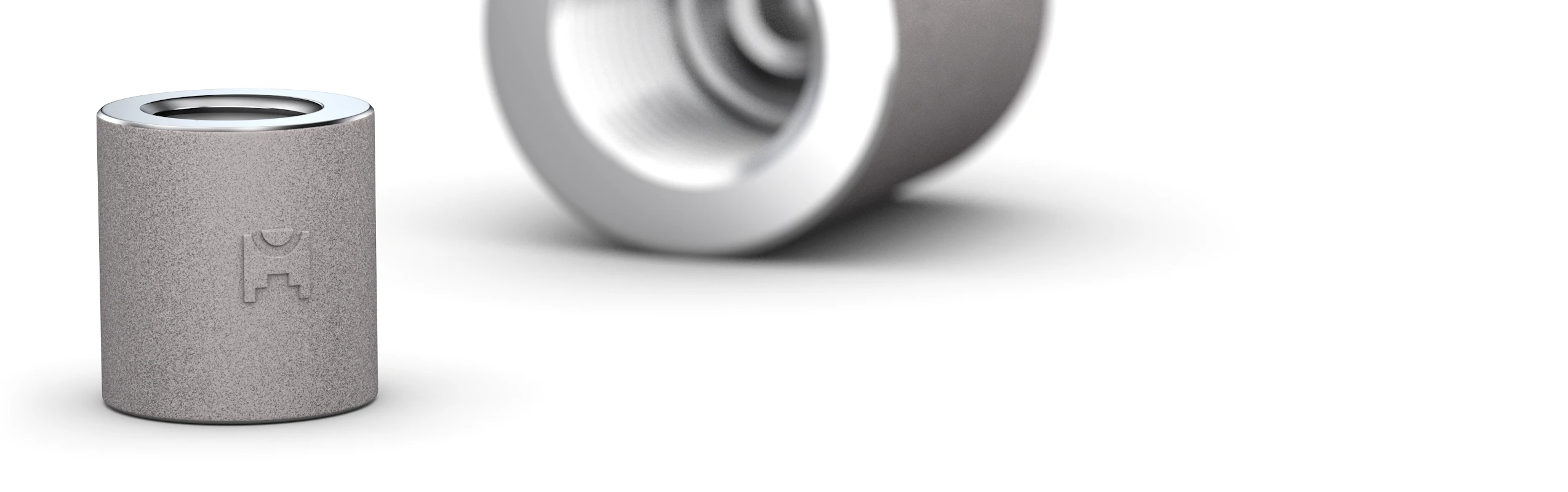

Cap Threaded

Ürün Açıklaması

Threaded caps manufactured by Medisan are high-strength forged fittings used for temporarily or permanently closing pipe ends. Produced in compliance with the ASME B16.11 standard, these caps can be safely used up to 2000, 3000, 6000, and 9000 pressure class values.

Our products are manufactured from carbon steel (ASTM A105 / A105N), stainless steel (A182 F304 / F316), and alloy steel (A182 F11/F22) materials. Thanks to high-precision CNC machiningtechnology, the thread structure ensures perfect fit and sealing.

Kullanım Alanları

Oil and natural gas pipelines
Chemical and petrochemical plants
Power generation systems
Compressed air and water lines
Hydraulic and steam systems

Kalite ve Sertifikasyon

Medisan holds PED 2014/68/EU and Class BV Factory Approval Certificate (Bureau Veritas) certifications.

Production processes are fully compliant with international standards through traceability, material certification, and quality control testing.

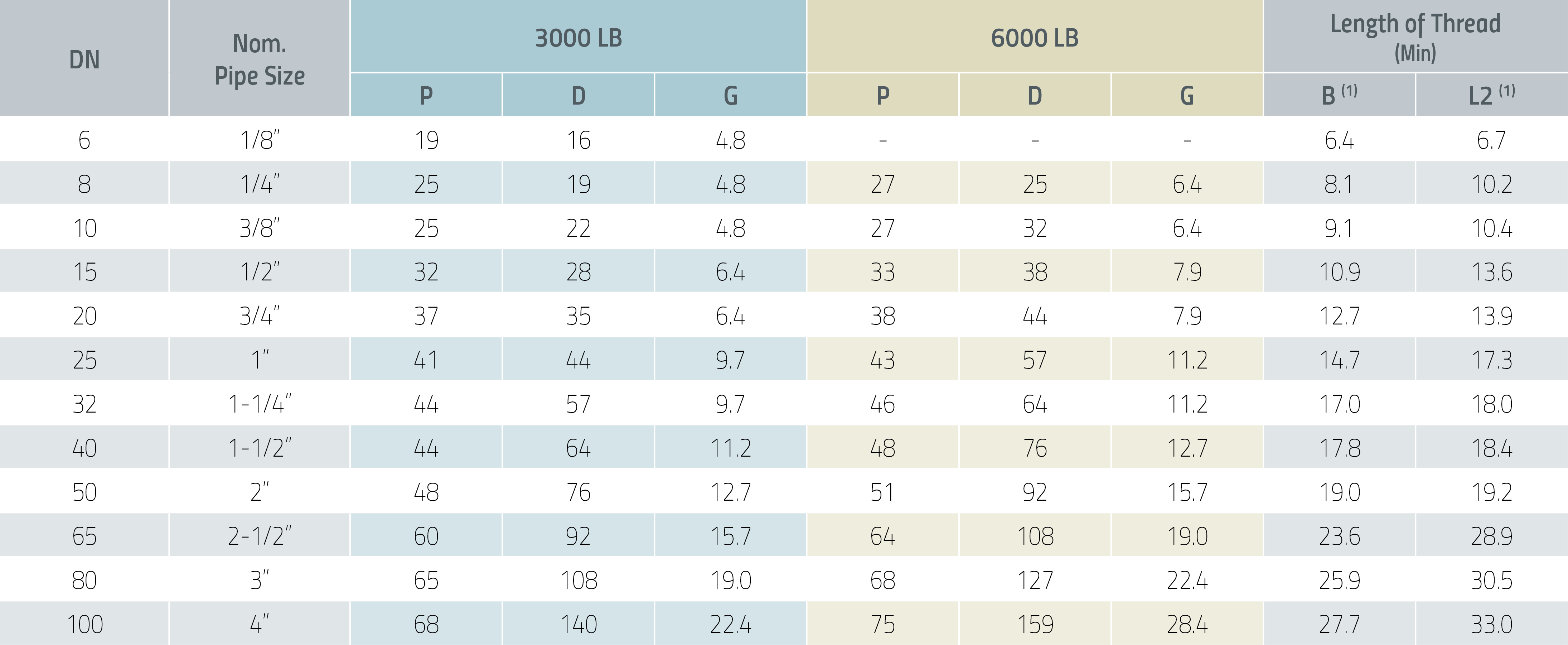

ASME B16.11-2021

Dimensions are in millimeters.

(1) Dimension B is minimum length of perfect thread. The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than L2 (effective length of external thread) required by American National Standard for pipe threads (ANSI / ASME B1.20.1).
