Threaded Flanges Class 300

Ürün Açıklaması

Threaded flanges are a type of flange connected directly by threading without welding the pipe. These flanges provide easy installation, especially in low and medium-pressure systems, and allow for quick disassembly and reassembly of the pipeline during maintenance.

Standards and Material:

Standards: ASME B16.5
Pressure Class: Class 150-300
Material: ASTM A105 (Carbon Steel), A182 F304/F316 (Stainless Steel)
Size Range: ½" - 24"

Kullanım Alanları

These flanges are widely used in oil and gas pipelines, chemical plants, water and steam lines, and industrial process systems.

Kalite ve Sertifikasyon

Medisan threaded flanges are manufactured in accordance with the ASME B16.5 standard and offer reliable performance in Class 150 - 300 pressure classes. Our products hold PED 2014/68/EU, BV Factory Approval, and ISO 9001:2015 certifications.

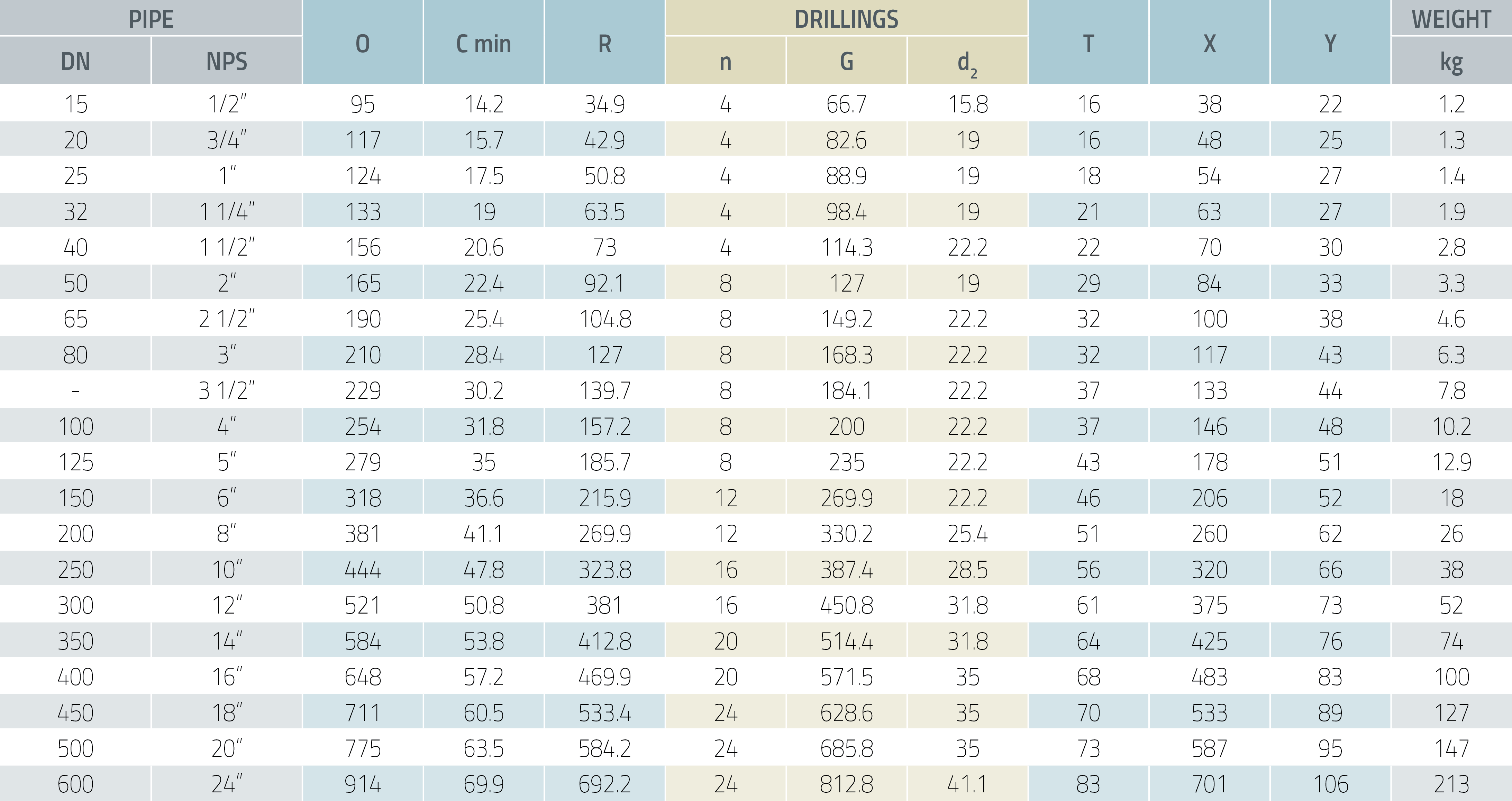

ASME B16.5-2020

Dimensions are in millimeters.
