Welding Neck Flanges PN25

360° View

Product Description

Welding neck flanges are one of the most reliable flange types that increase the resistance at the connection point by transferring stress to the pipe thanks to their tapered hub structure in pipelines requiring high sealing. The PN25 pressure class makes these flanges ideal for high-pressure systems, especially for heavy industrial plants and high-flow transmission lines. Medisan manufactured PN25 welding neck flanges ensure smooth flow and superior structural durability in the pipeline with precision machining quality.

Standards and Material:

Standards: EN 1092-1 / ISO 7005
Pressure Class: PN25
Material: Carbon Steel, Stainless Steel, Alloy Steel
Size Range: DN15 - DN1000

Applications

These flanges are generally used in high-pressure steam lines, natural gas transmission facilities, chemical process units, pumping stations, and heavy industrial hydraulic systems.

Quality and Certification

Welding neck flanges manufactured by Medisan are fully compliant with EN 1092-1 standards and offer secure sealing in the PN25 pressure class. Our products are under international quality assurance with PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications.

TS ISO 7005-1

EN 1092-1 / TYPE 11

DIN 2634

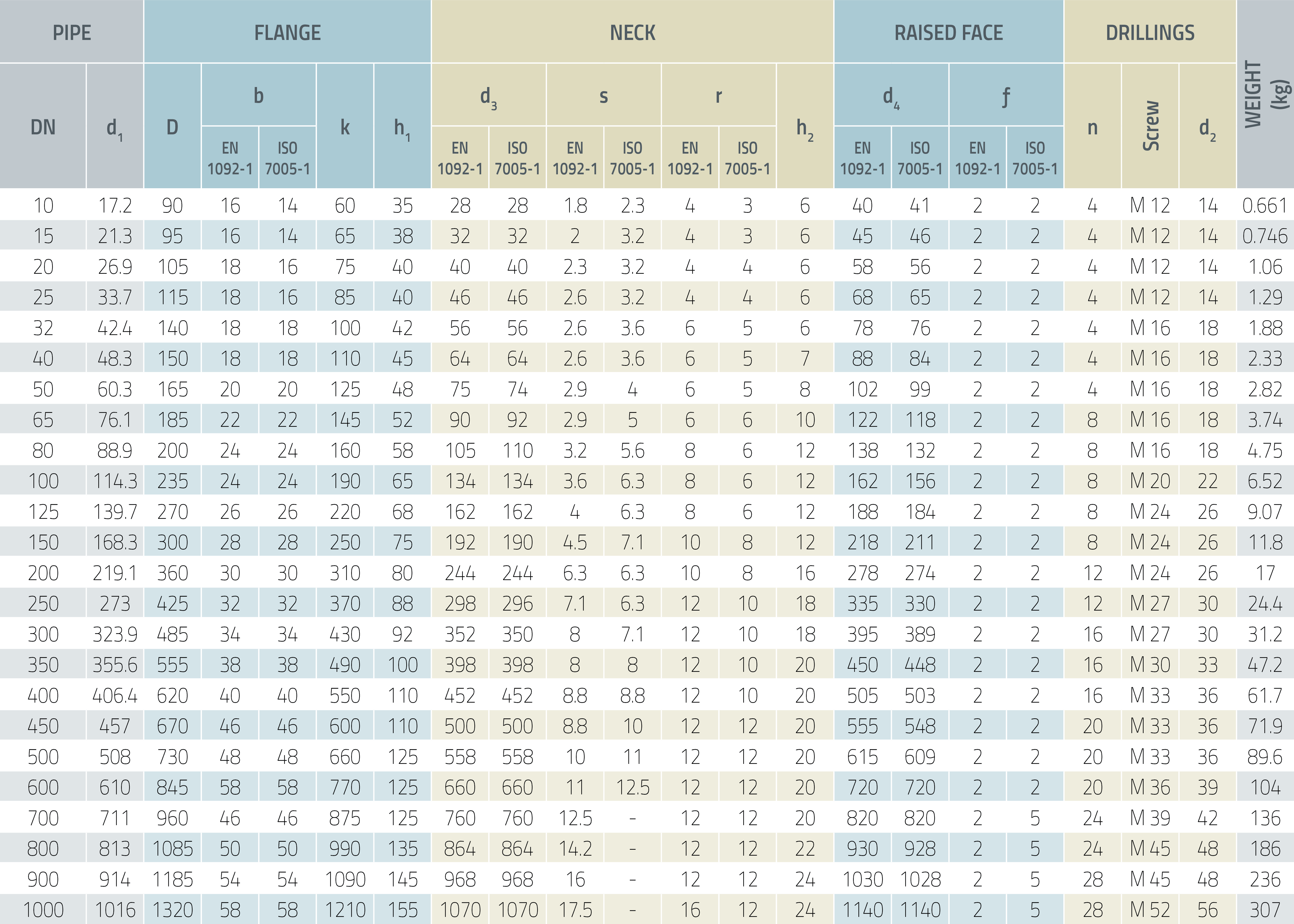

Dimensions are in millimeters.
