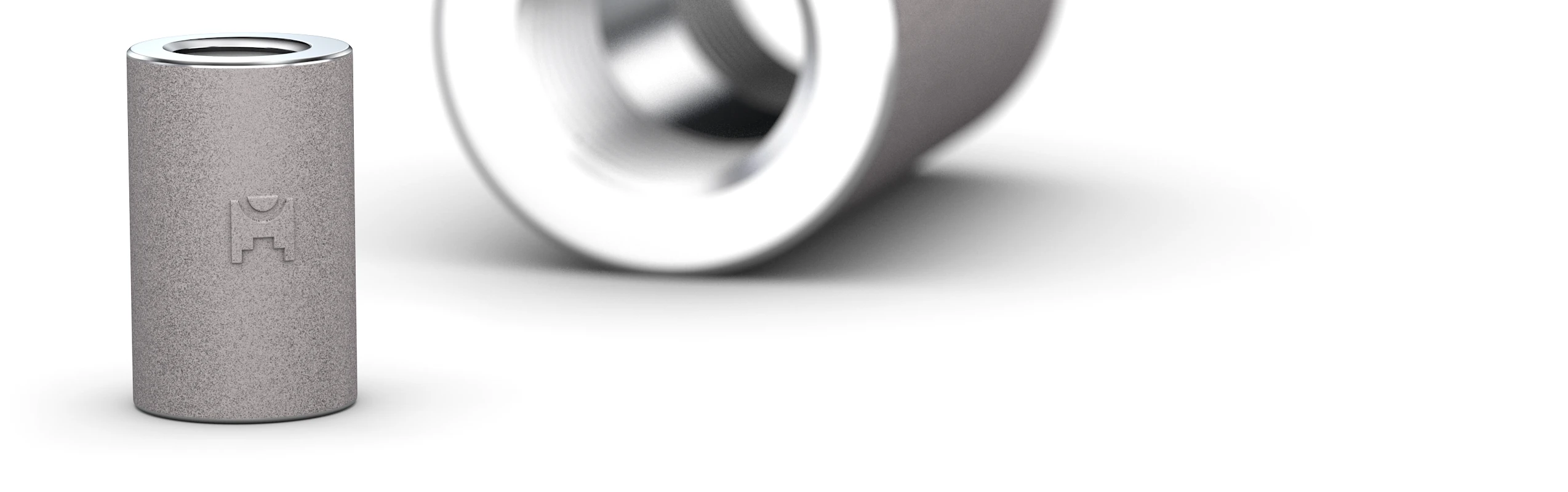

Coupling Threaded

360° View

Product Description

Threaded couplings manufactured by Medisan are forged steel fittings used to connect two pipe segments together. Produced in accordance with the ASME B16.11 standard, these couplings can be safely used in 2000, 3000, 6000, and 9000 pressure classes.

Our products are manufactured with carbon steel (ASTM A105 / A105N), stainless steel (A182 F304/F316), and alloy steel (A182 F11/F22) options, and are offered with NPT and BSP thread types. Medisan's precision CNC machining technology ensures thread compatibility and leak-tightness.

Applications

Oil and natural gas pipelines
Chemical and petrochemical plants
Power generation and steam systems
Fire suppression installations
Compressed air and water lines

Quality and Certification

Medisan holds PED 2014/68/EU and Class BV Factory Approval Certificate (Bureau Veritas) certifications, and all production processes are conducted in compliance with international standards through traceability and quality testing.

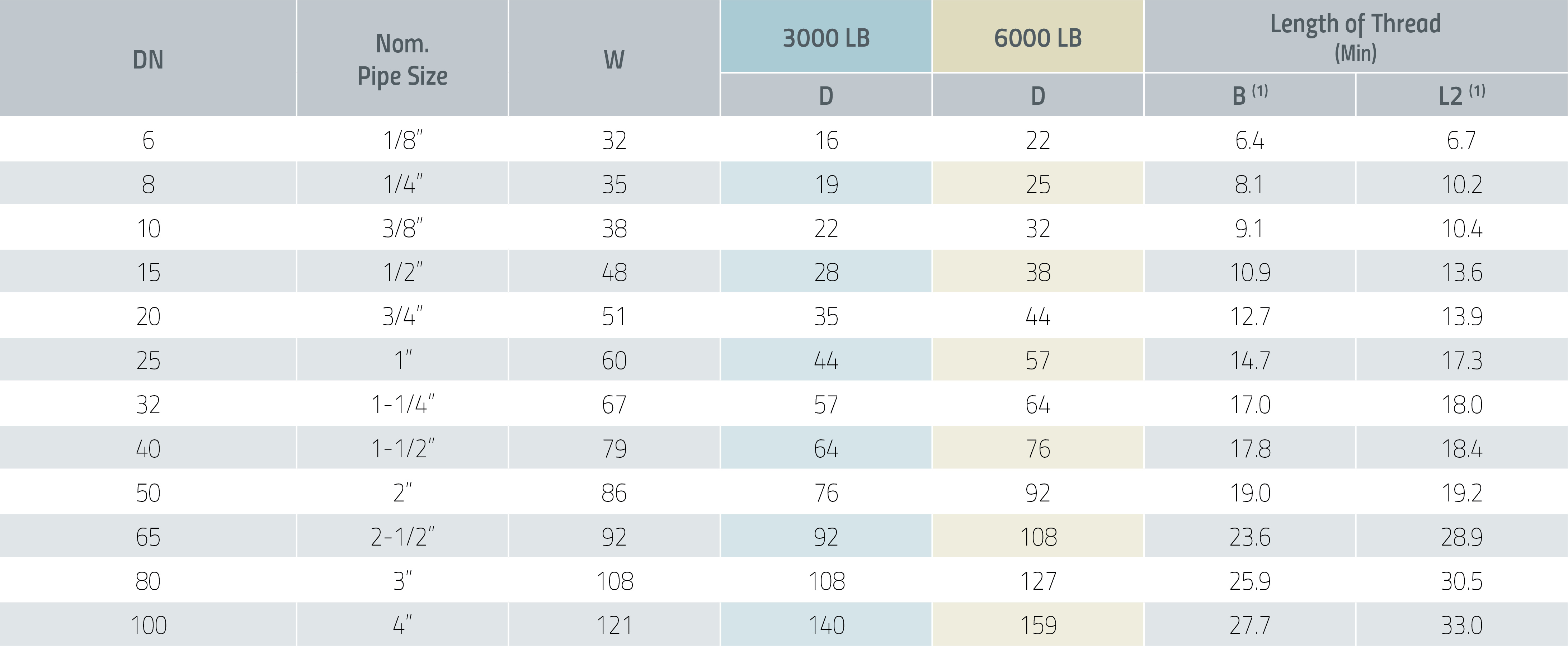

ASME B16.11-2021

Dimensions are in millimeters.

(1) Dimension B is minimum length of perfect thread. The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than L2 (effective length of external thread) required by American National Standard for pipe threads (ANSI / ASME B1.20.1).
