Lap Joint Flanges PN10

360° View

Product Description

Lap Joint Flanges are connection elements assembled to the pipeline together with a "Stub End" part, allowing them to rotate freely on the pipe. This rotatable feature ensures easy alignment of bolt holes during installation. The PN10pressure class makes these flanges an economical and practical solution in medium-pressure systems and lines requiring frequent maintenance or cleaning. Medisan manufactured Lap Joint flanges offer cost advantages and installation speed, especially in corrosion-resistant systems.

Standards and Material:

Standards: EN 1092-1 / ISO 7005
Pressure Class: PN10
Material: Carbon Steel, Stainless Steel, Alloy Steel
Size Range: DN15 - DN1000

Applications

These flanges are generally used in water treatment systems, chemical process lines, paper mills, food plants, and low-to-medium pressure piping systems that require frequent dismantling and reassembly.

Quality and Certification

Lap Joint flanges manufactured by Medisan are fully compliant with EN 1092-1 standards and offer reliable performance in the PN10 pressure class. Our products are under international quality assurance with PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications.

TS ISO 7005-1

EN 1092-1 / TYPE 02;32

DIN 2642

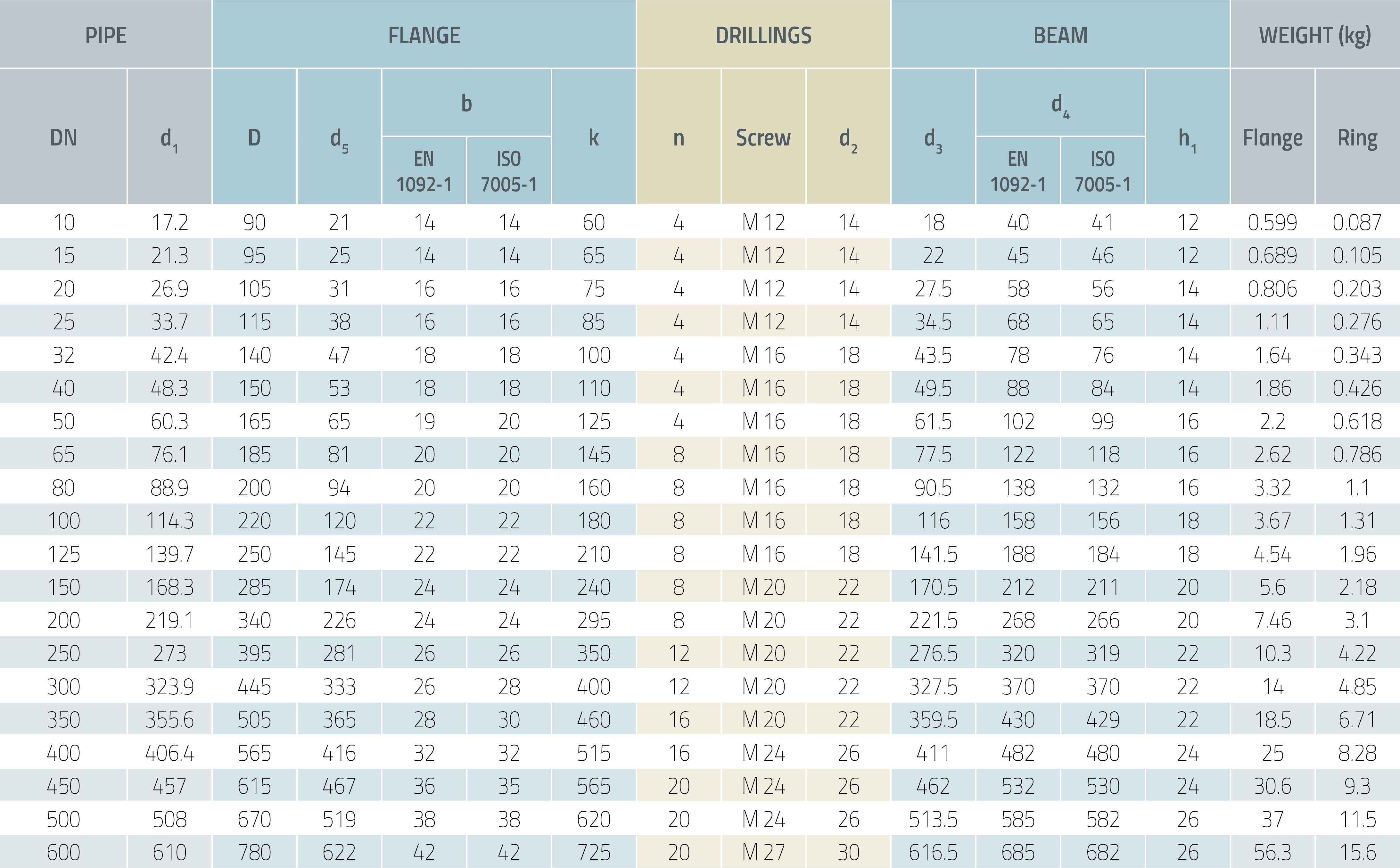

Dimensions are in millimeters.
