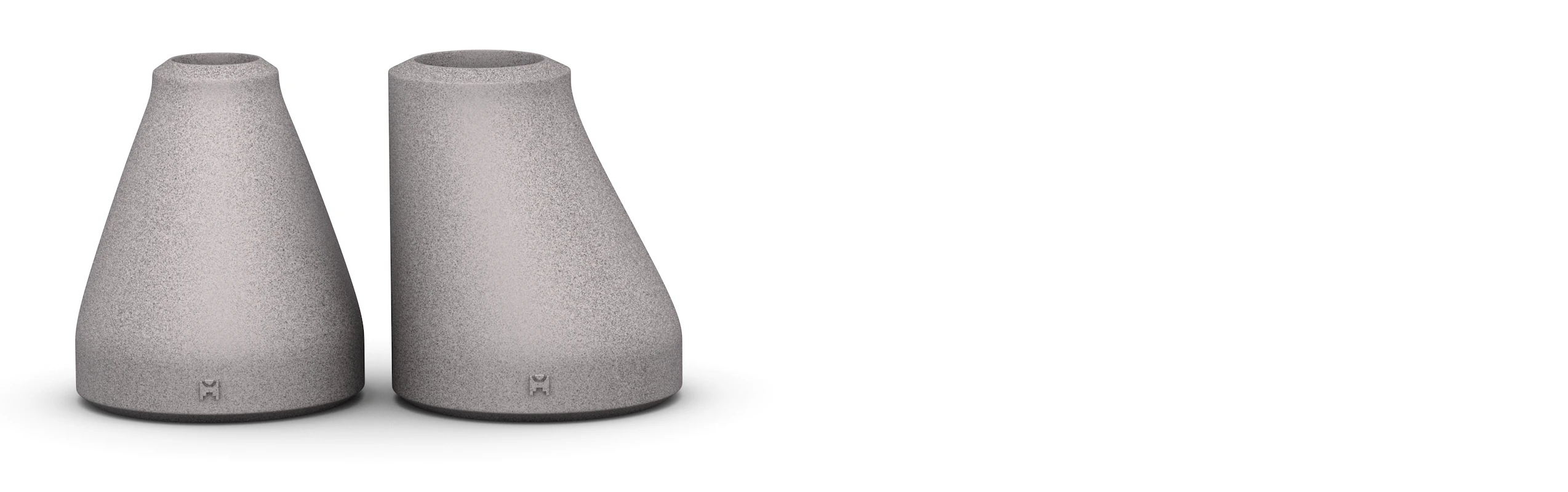

Concentric and Eccentric Reducers
360ยฐ View
Product Description
Concentric Reducer: Connects pipes with centers on the same axis. It provides a smooth transition without changing the direction of the fluid. Generally used in vertical pipelines.
Eccentric Reducer: Designed with an offset axis so that the bottom or top surfaces are aligned. This feature prevents fluid accumulation and is preferred in horizontal lines.
Read Moreโฆ
Applications
Concentric and Eccentric Reducers are fittings used to connect two pipes of different diameters in pipelines.
Read Moreโฆ
Quality and Certification
Medisan Reducers are manufactured in full compliance with the ASME B16.9 standard. Our products are manufactured from high-quality carbon steel, stainless steel, and alloy steel materials through precision forming and welding processes. All production processes are secured by PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications.
Read Moreโฆ
ASME B16.9-2018
MSS SP-75-2019

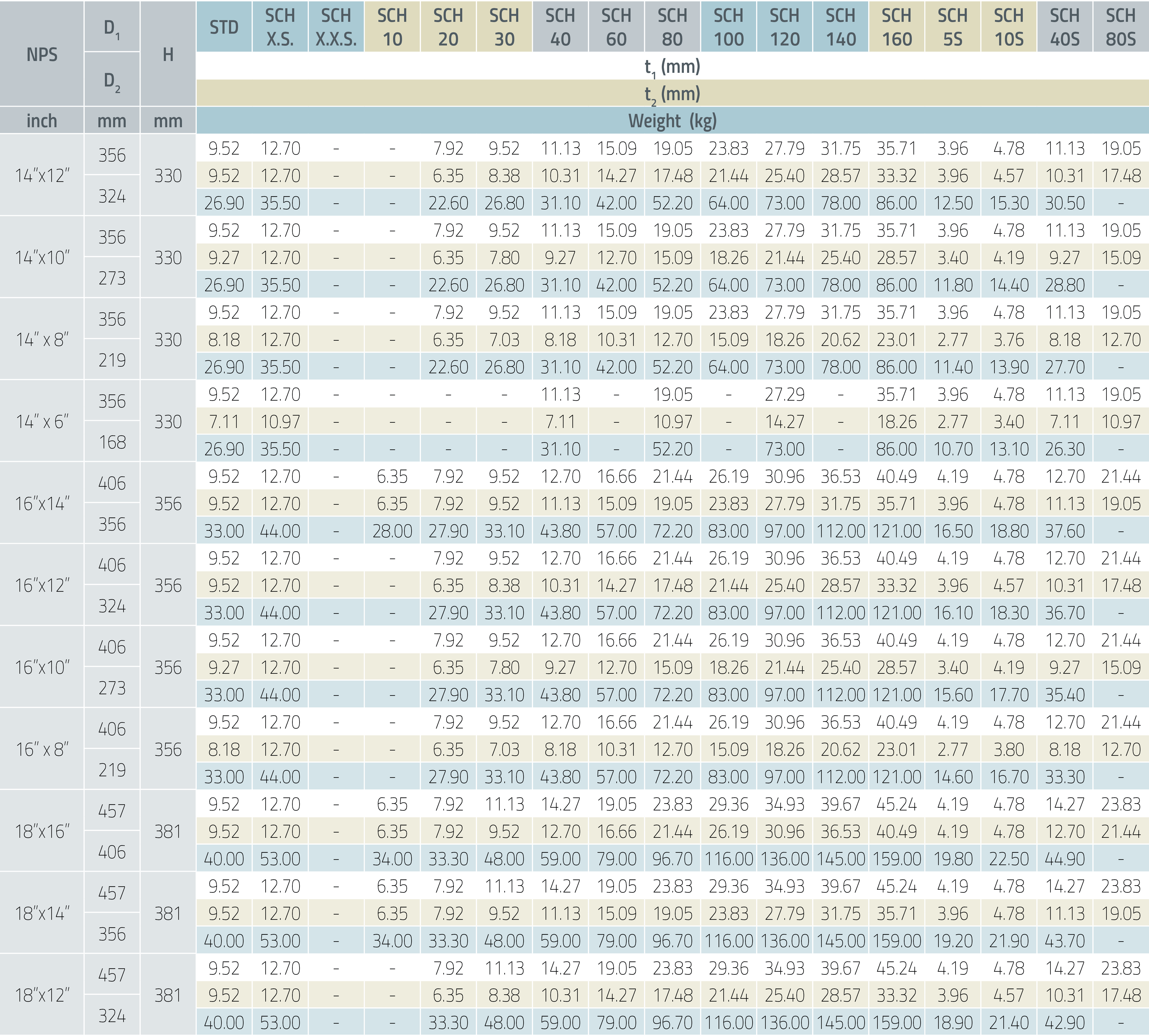

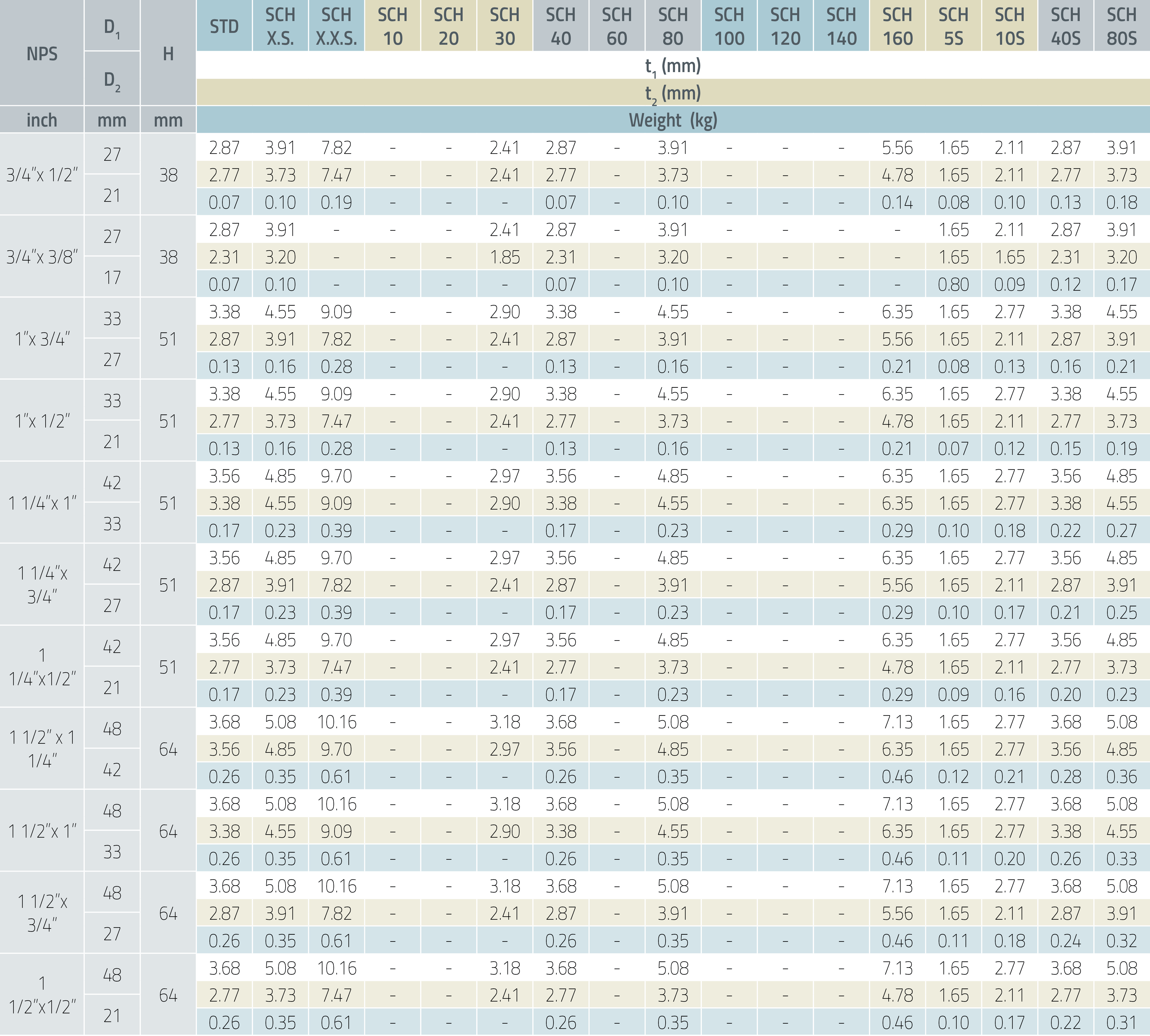

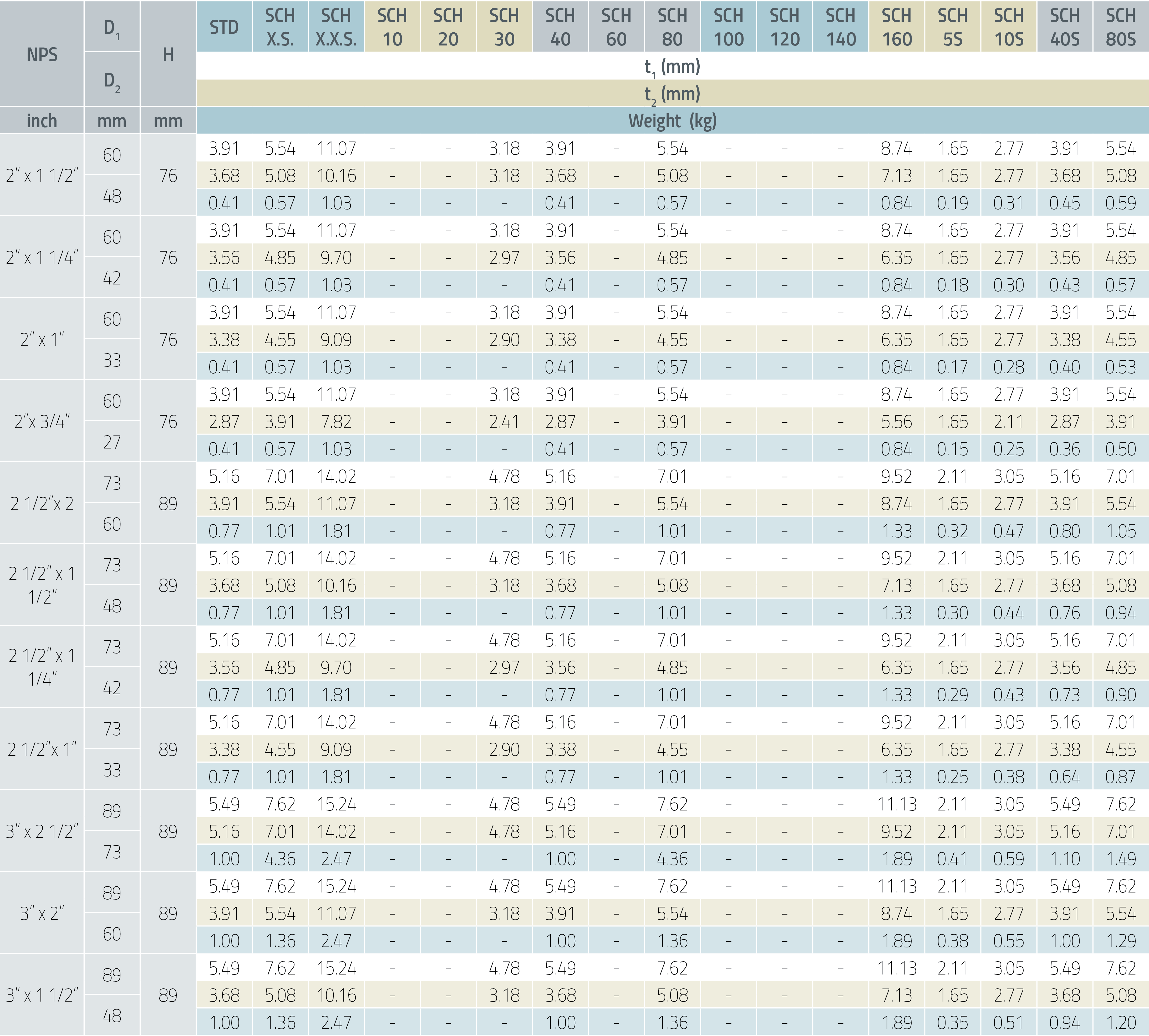

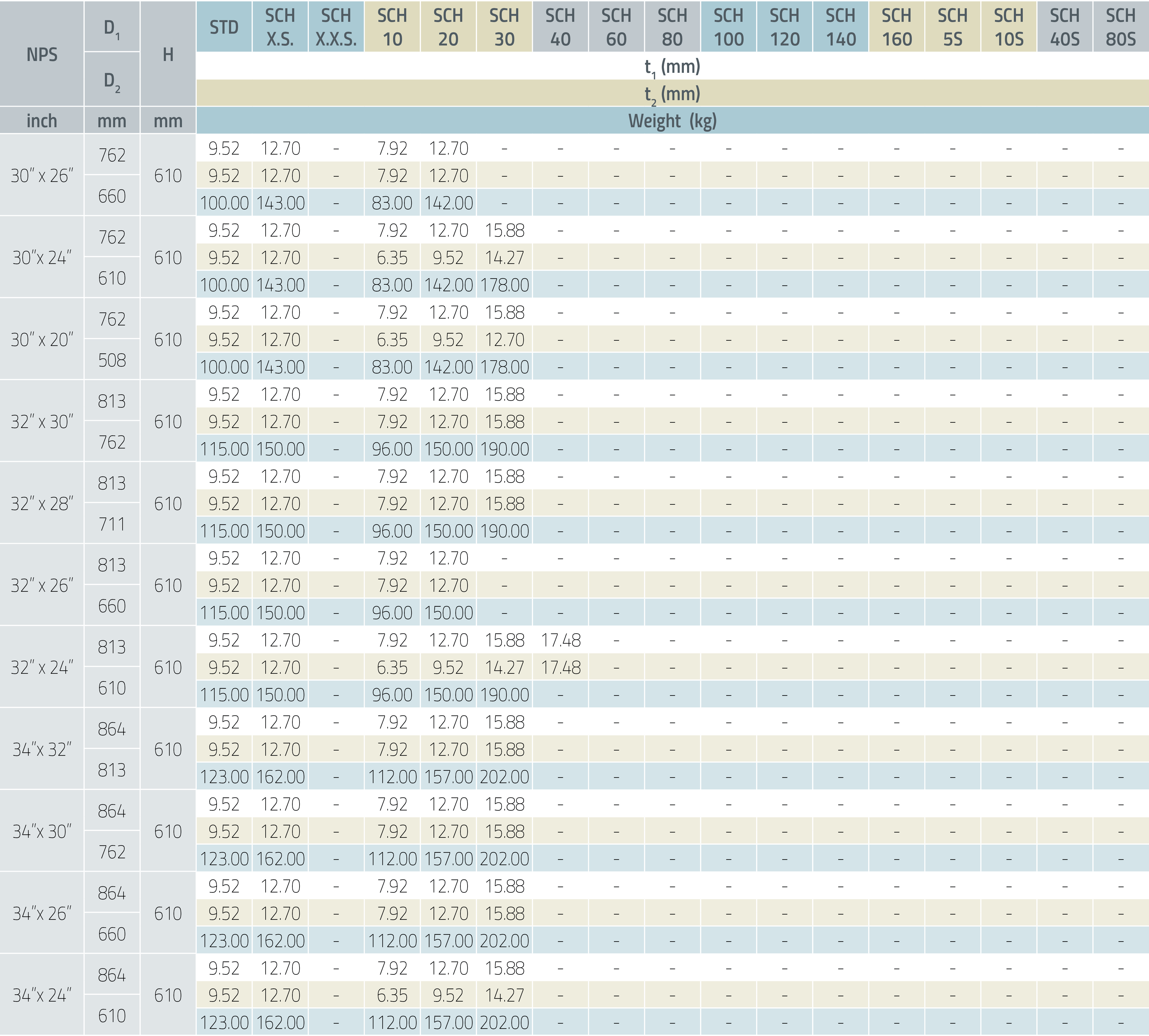

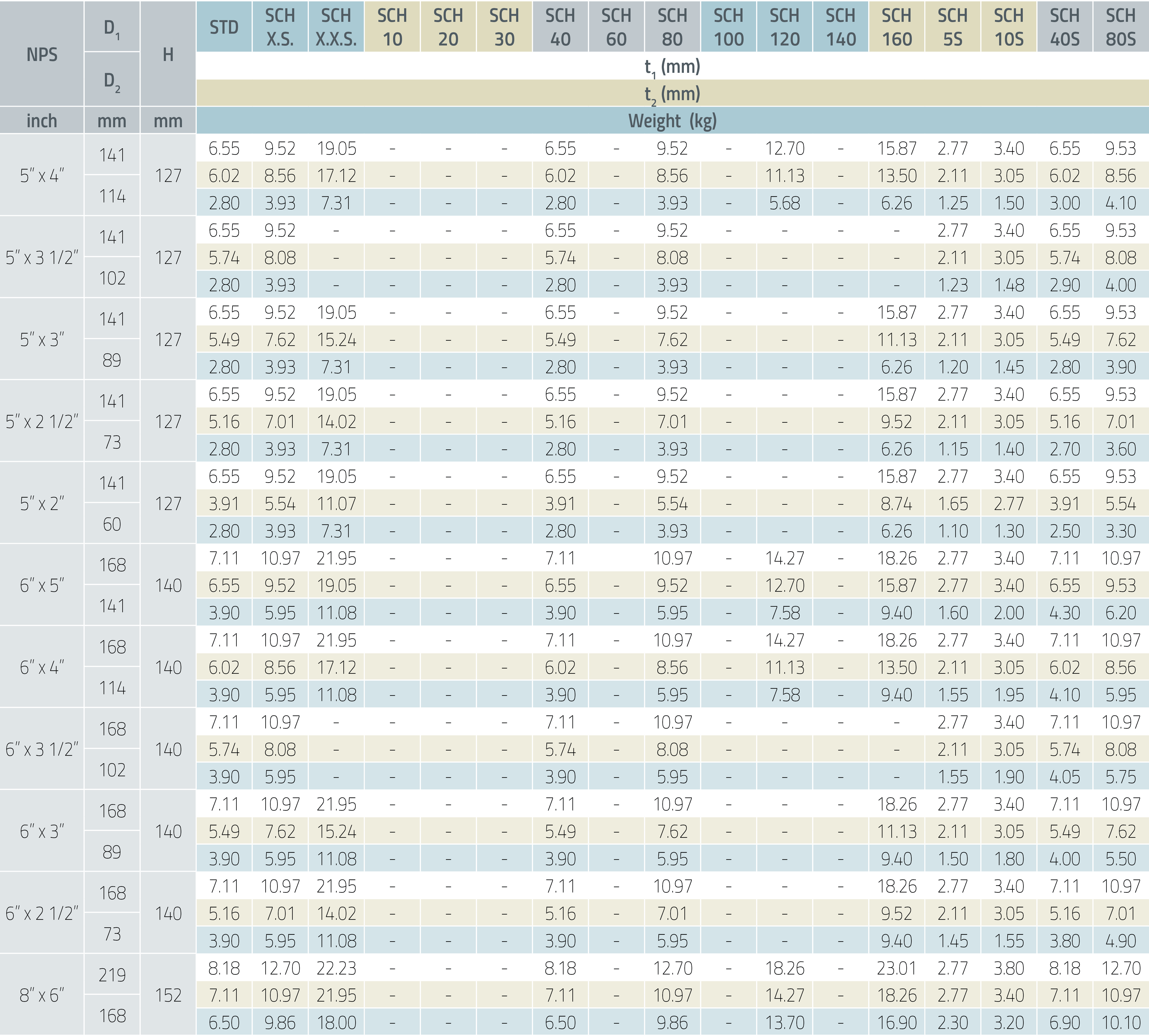

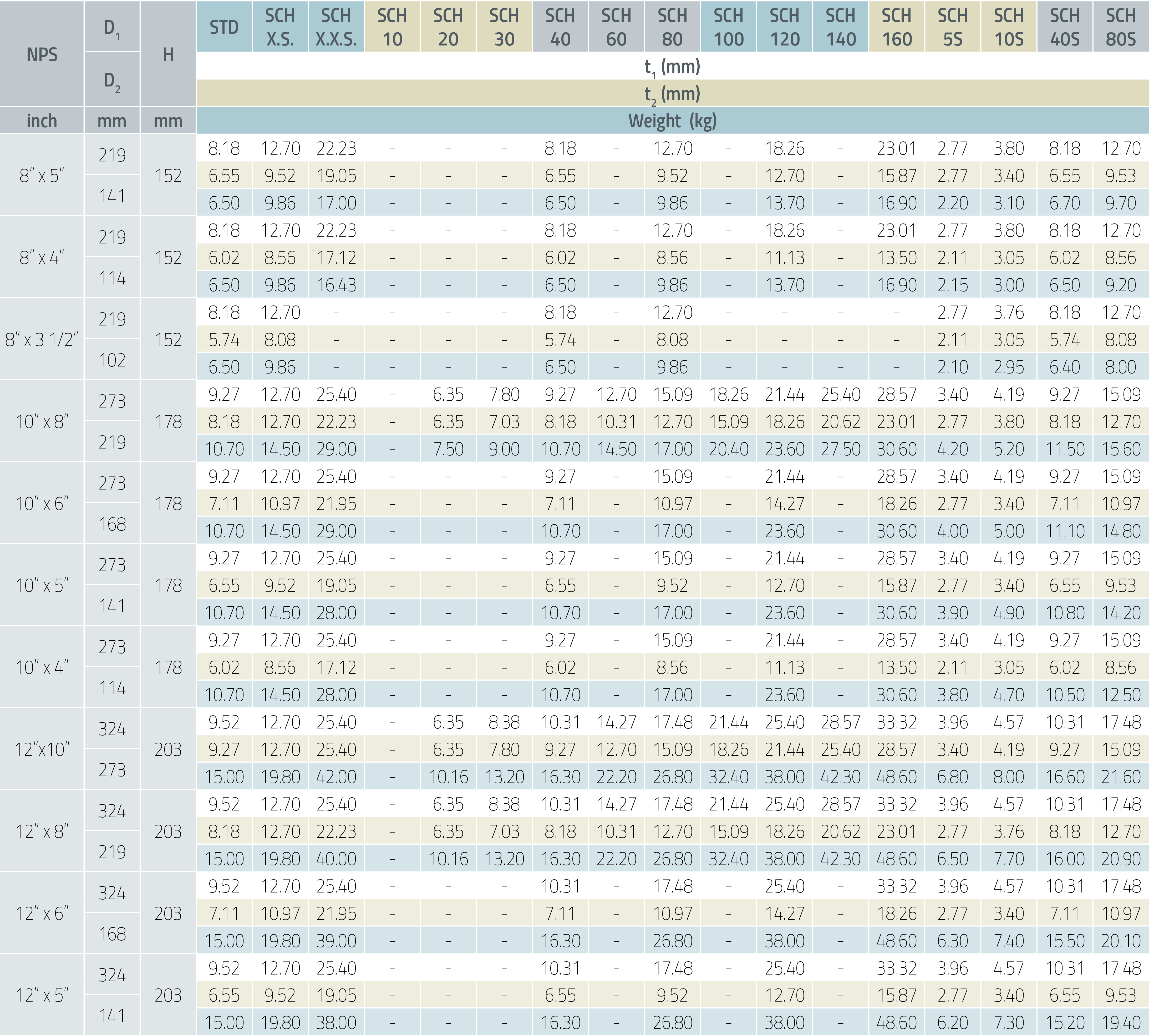

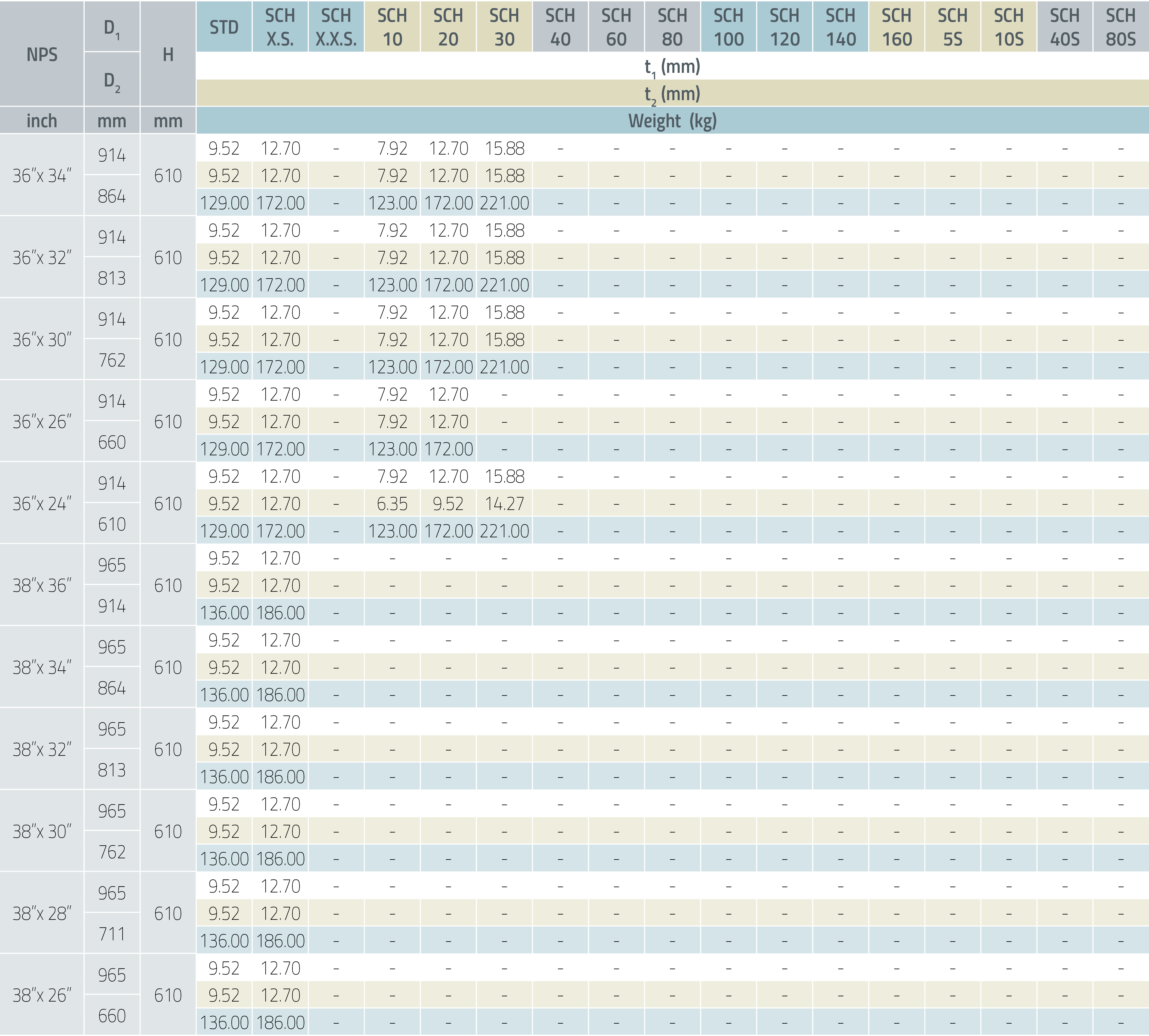

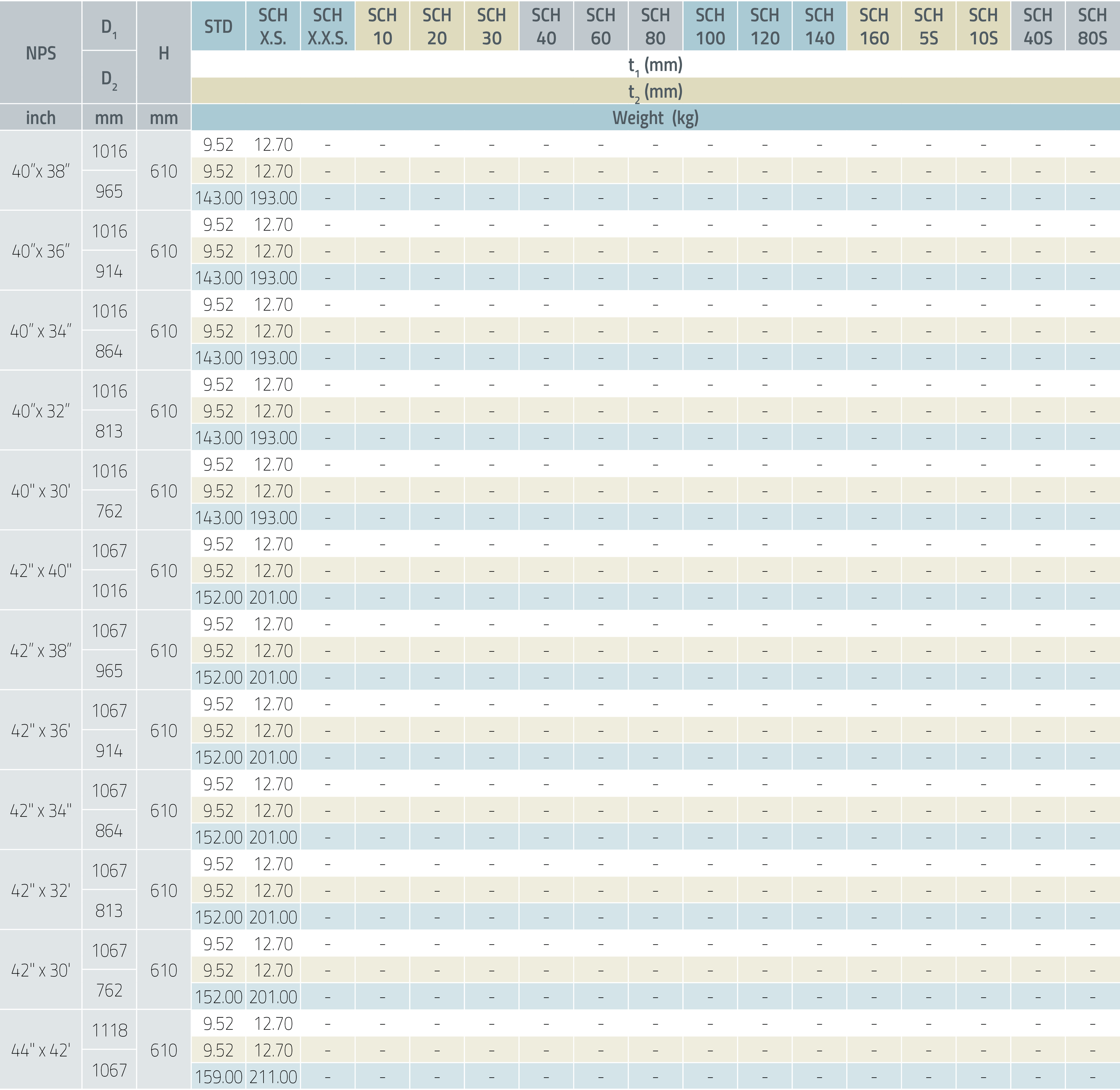

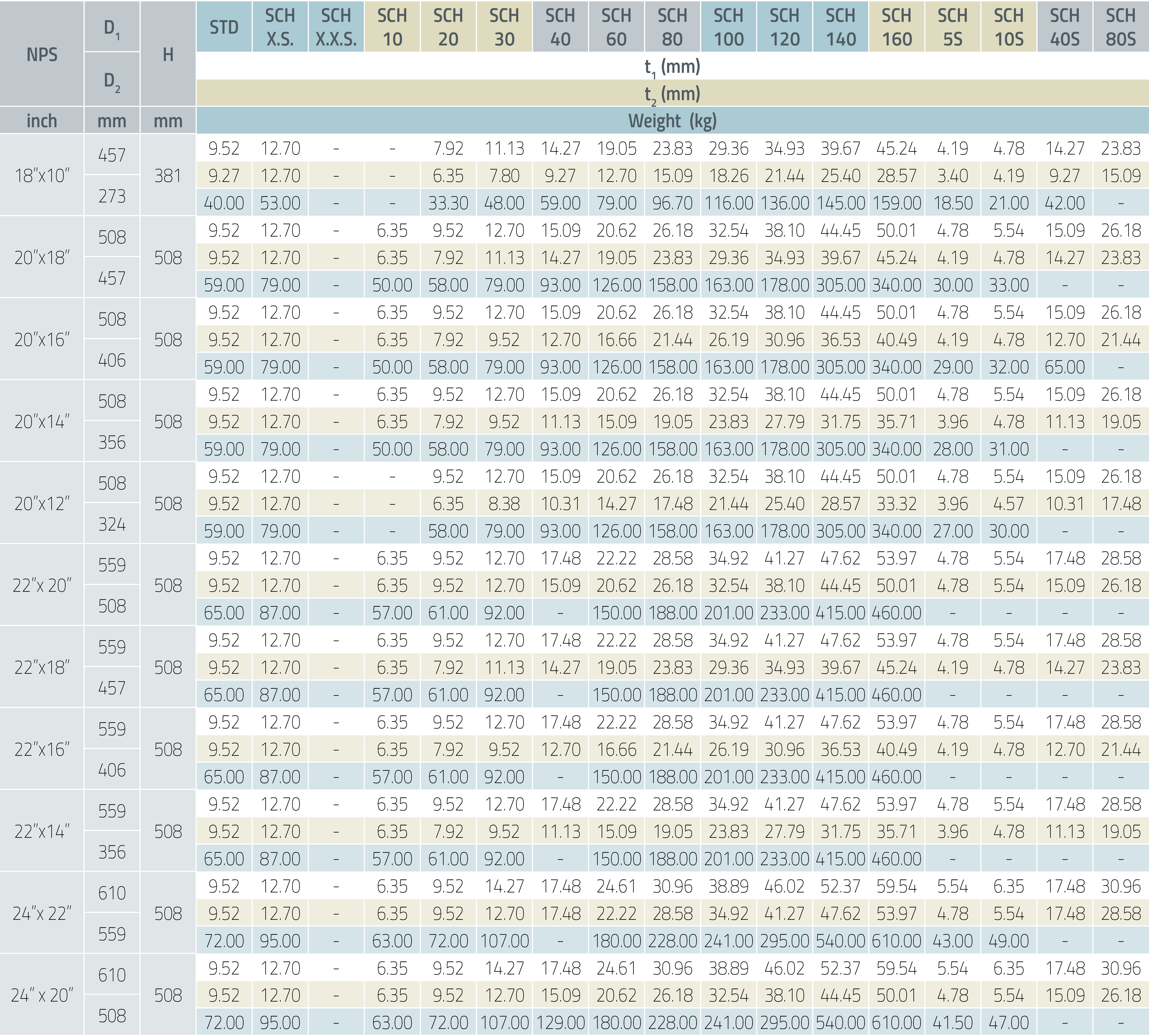

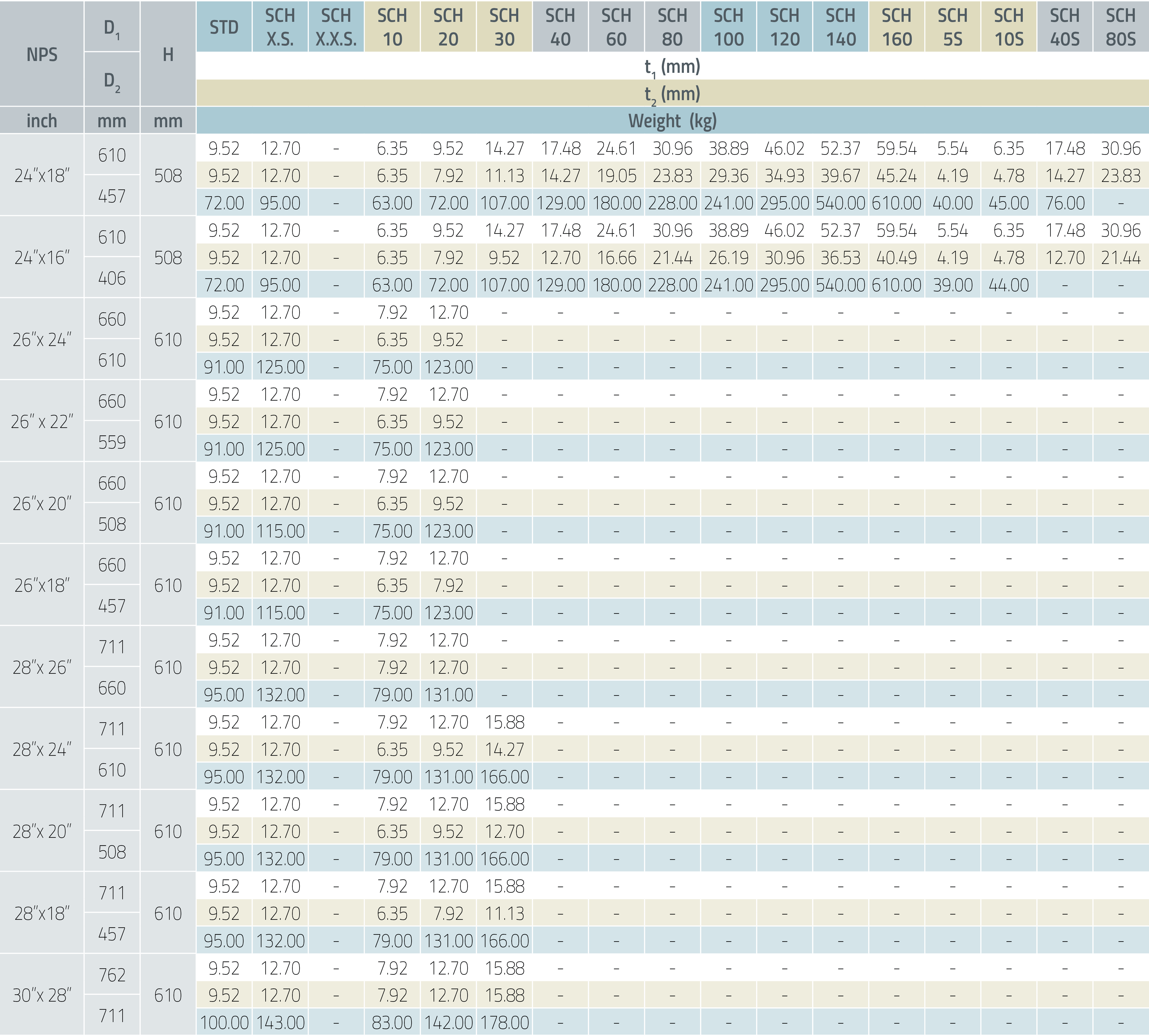

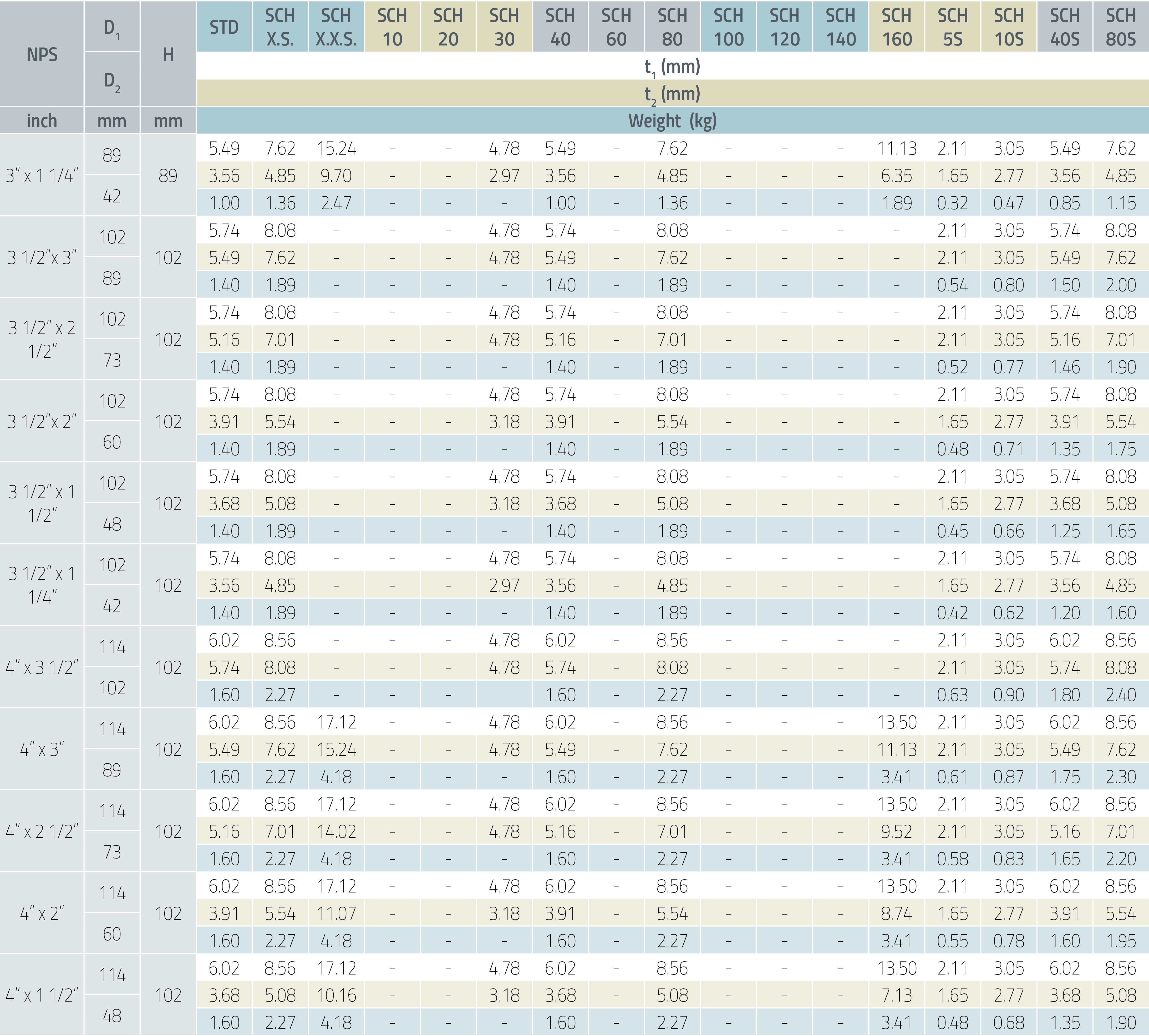

Dimensions are in millimeters.
