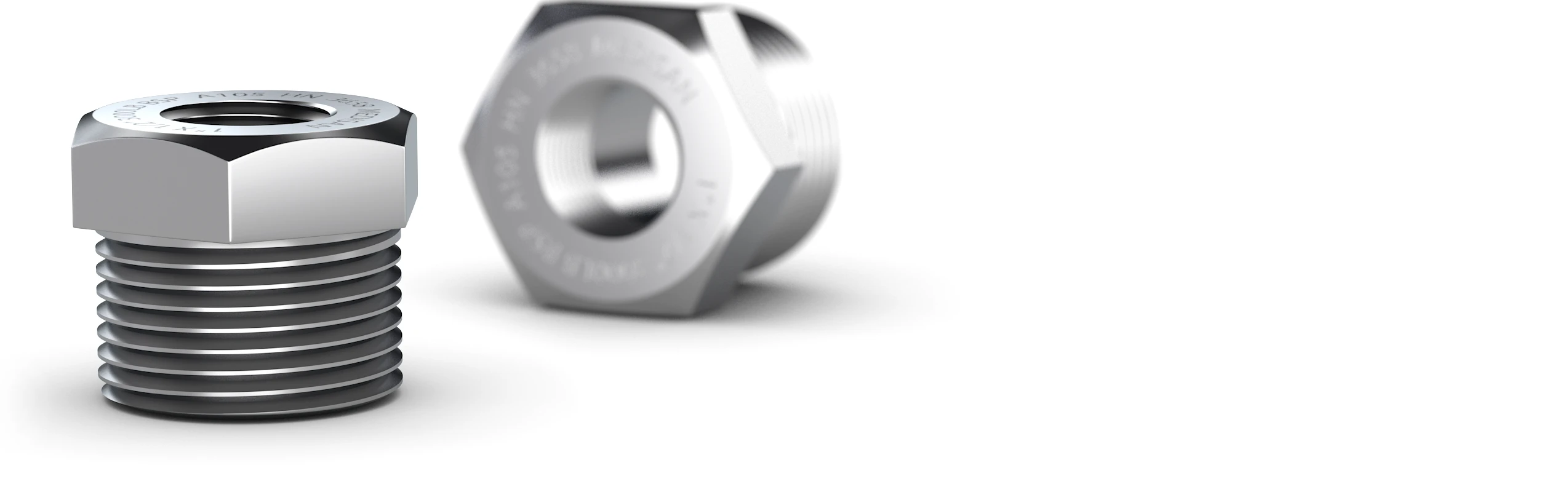

Hex. Bushing Male-Female Threaded

360° View

Product Description

The hex head bushing manufactured by Medisan ensures the secure and leak-proof connection of threaded pipes with different diameters. Manufactured from forged steel in accordance with the ASME B16.11 standard, this product is produced in Class 2000, 3000, and 6000 pressure classes. The hexagonal head design facilitates wrench usage during assembly and disassembly, offering practicality during the maintenance process.

Applications

Oil and gas industry
Refinery facilities
Chemical lines
High-pressure piping systems

Quality and Certification

Medisan's PED 2014/68/EU, ISO 9001:2015, and BV Factory Approval certifications guarantee that each product is manufactured to high quality standards.

ASME B16.11-2021

BS3799

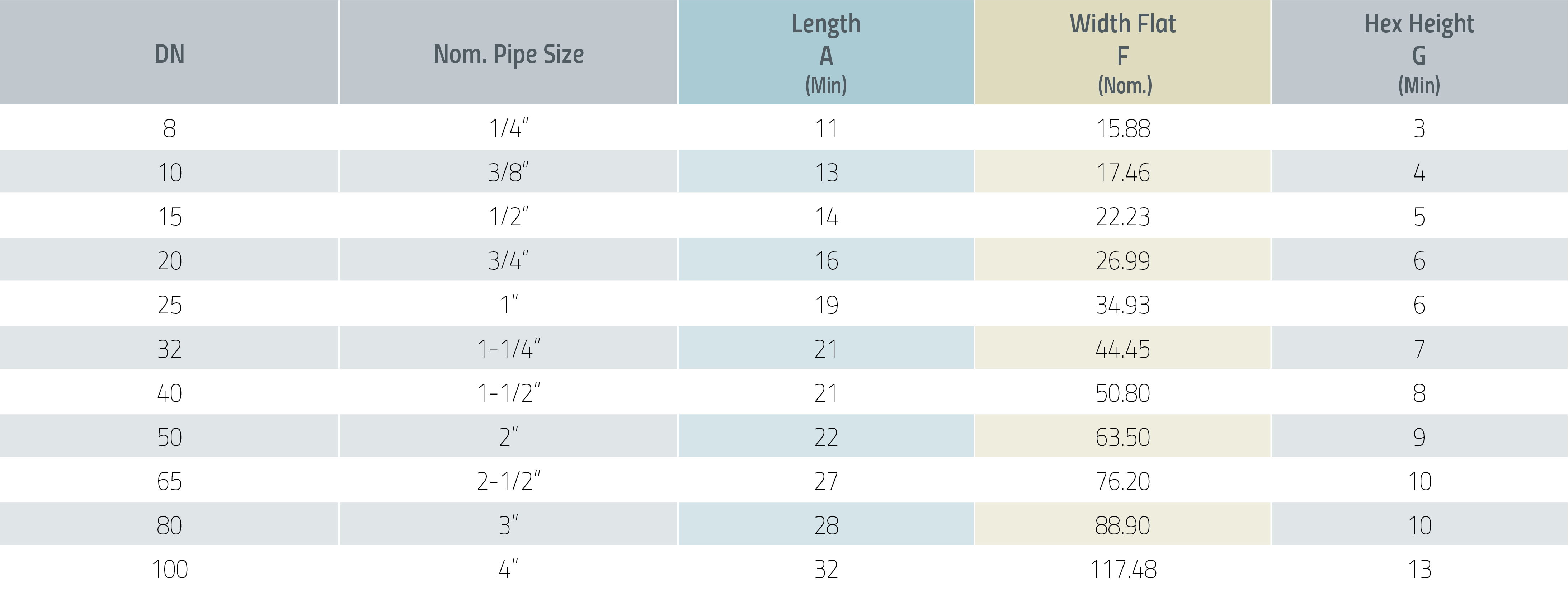

Dimensions are in millimeters.

(1) Hex Head Bushings of one-size reduction should not be sued in services where they might be subject to harmful loads and forces than internal pressure.
