Flat Flanges PN40

360° View

Product Description

Flat flanges (Plate Flanges) are robust connection elements with high pressure resistance, assembled by sliding over the pipe and welding from both the inside and outside. The PN40 pressure class makes these flanges a reliable and economical solution for industrial systems requiring high performance and pressurized fluid transmission lines. Medisanmanufactured PN40 flat flanges keep sealing security at the highest level thanks to precise tolerances and high surface quality.

Standards and Material:

Standards: EN 1092-1 / ISO 7005
Pressure Class: PN40
Material: Carbon Steel, Stainless Steel, Alloy Steel
Size Range: DN15 - DN600

Applications

These flanges are generally preferred in high-pressure steam lines, power plants, petrochemical facilities, pump and compressor stations, and critical industrial process piping.

Quality and Certification

Flat flanges manufactured by Medisan are fully compliant with EN 1092-1 standards and exhibit reliable performance in the PN40 pressure class. Our products are under international quality assurance with PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications.

TS ISO 7005-1

EN 1092-1 / TYPE 01

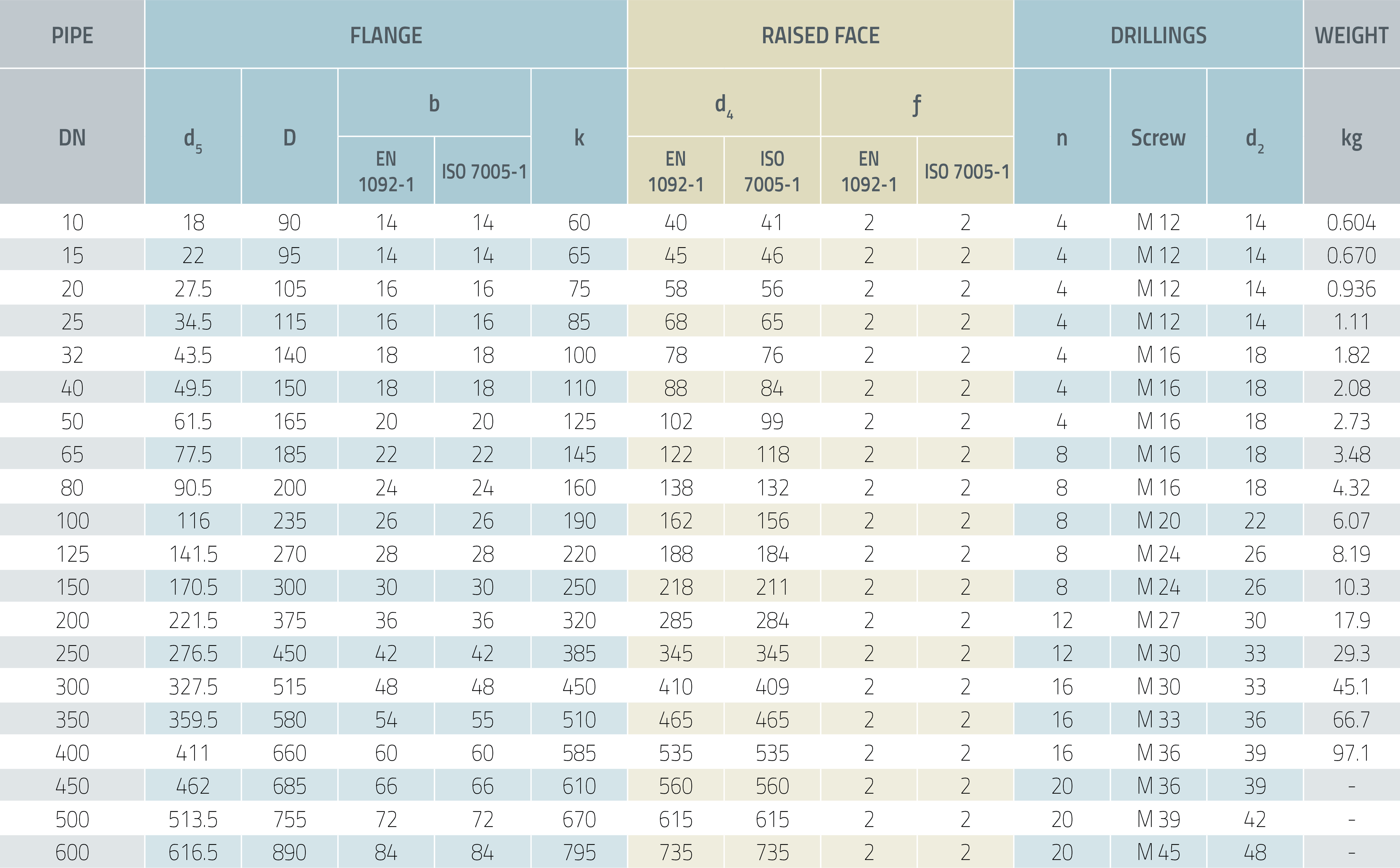

Dimensions are in millimeters.
