Nipolet
360° View
Product Description

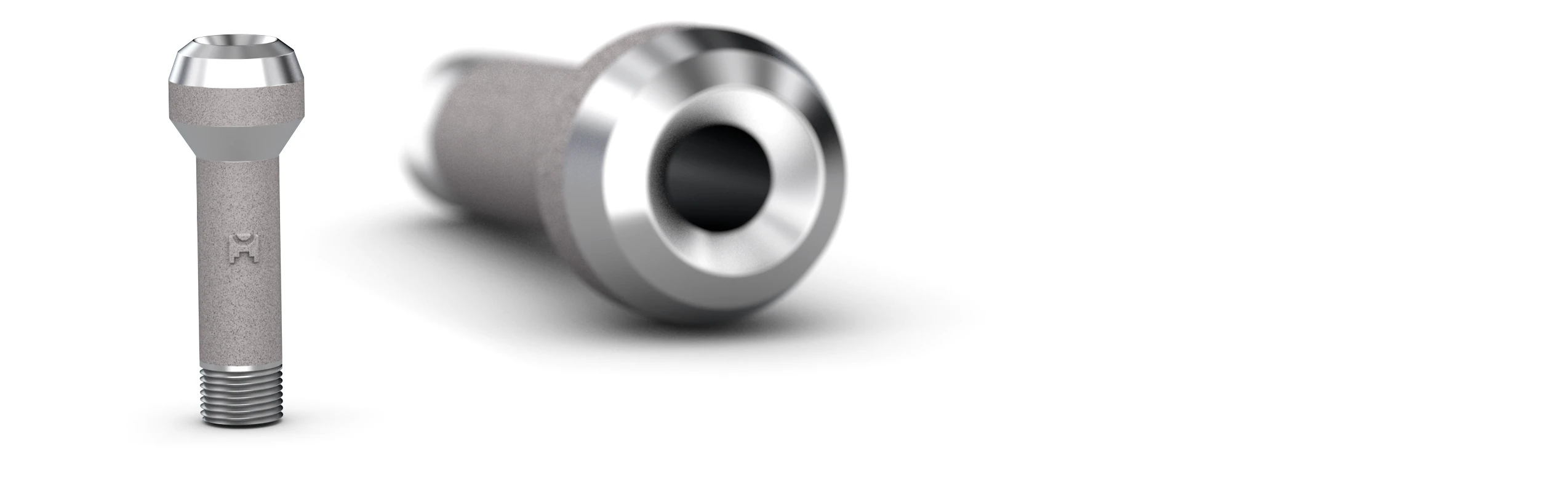

The male threaded branch outlet (Nipolet) is a compact and versatile fitting used to create connection branches in pipelines. One end can be welded, while the other can be threaded or socket weld. This structure ensures both strong and leak-proof connections. Medisan Nipolets are manufactured in accordance with ASME B16.11and MSS-SP-97 standards, offering long-lasting performance in high-pressure systems.
Read More…
Applications
Nipolets are generally used safely in oil refineries, natural gas transmission lines, chemical plants, pressure vessels, and instrumentation lines (for the installation of pressure gauges, thermowells, etc.).
Read More…
Quality and Certification
Medisan's production process is secured with PED 2014/68/EU and Class BV Factory Approval certifications. Products are manufactured from carbon steel, stainless steel, and alloy steel materials in Class 2000, 3000, 6000, and 9000 pressure levels.
Read More…

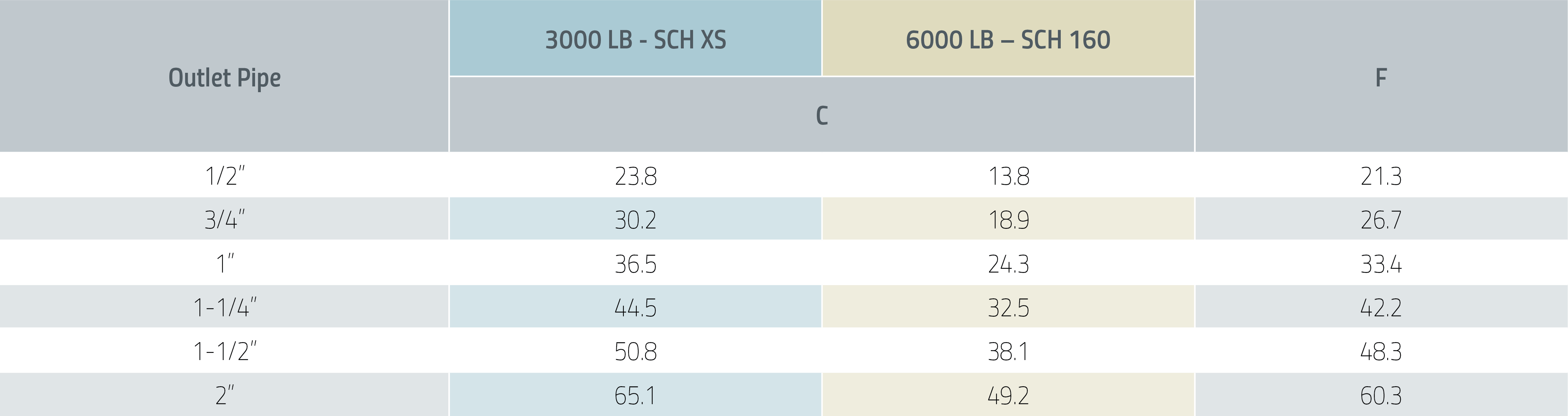

Dimensions are in millimeters.
(1) Range: Sch40, STD, Sch80, XS, Sch160, XXS.
(2) Weld bevel in accordance with ASME B16.25.
Nipolet
360° View
Product Description
The male threaded branch outlet (Nipolet) is a compact and versatile fitting used to create connection branches in pipelines. One end can be welded, while the other can be threaded or socket weld. This structure ensures both strong and leak-proof connections. Medisan Nipolets are manufactured in accordance with ASME B16.11and MSS-SP-97 standards, offering long-lasting performance in high-pressure systems.
Read More…
Applications
Nipolets are generally used safely in oil refineries, natural gas transmission lines, chemical plants, pressure vessels, and instrumentation lines (for the installation of pressure gauges, thermowells, etc.).
Read More…
Quality and Certification
Medisan's production process is secured with PED 2014/68/EU and Class BV Factory Approval certifications. Products are manufactured from carbon steel, stainless steel, and alloy steel materials in Class 2000, 3000, 6000, and 9000 pressure levels.
Read More…
Dimensions are in millimeters.
(1) Range: Sch40, STD, Sch80, XS, Sch160, XXS.
(2) Weld bevel in accordance with ASME B16.25.
