Threaded Flanges PN10-16-25-40

360° View

Product Description

Threaded Flanges are practical and reliable connection elements assembled to the pipeline via a threaded connection method without requiring welding. They are particularly preferred in explosive environments where welding is hazardous or in small-diameter pipelines where post-weld heat treatment is not desired. Pressure classes ranging from PN10 to PN40 allow these flanges to be used safely across a wide spectrum, from low-pressure water lines to high-pressure industrial processes. Medisan manufactured threaded flanges offer excellent sealing thanks to precision threading technology.

Standards and Material:

Standards: EN 1092-1 / ISO 7005
Pressure Class: PN10, PN16, PN25, PN40
Material: Carbon Steel, Stainless Steel, Alloy Steel
Size Range: DN15 - DN600

Applications

These flanges are generally used in gas distribution lines, fire suppression systems, HVAC installations, instrumentation connections, and lines carrying flammable or explosive fluids where welding is risky.

Quality and Certification

Threaded flanges manufactured by Medisan are fully compliant with EN 1092-1 standards and offer high performance in various pressure classes. Our products are under international quality assurance with PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications.

TS ISO 7005-1

EN 1092-1 / TYPE 13

DIN 2566

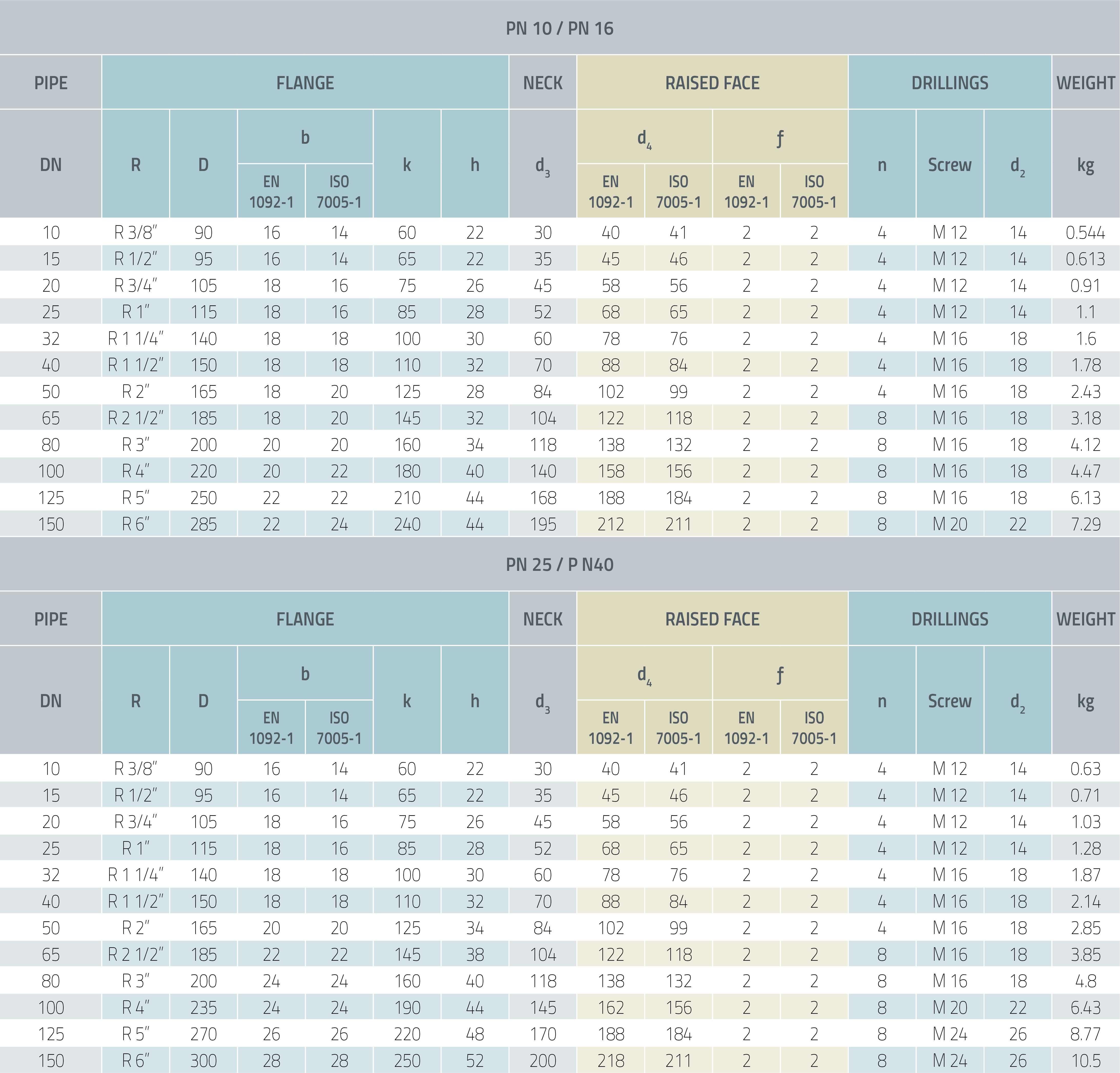

Dimensions are in millimeters.
