Welding Boss Threaded

360° View

Product Description

The threaded welding boss manufactured by Medisan is a forged steel fitting used to create a robust threaded connection point on pressure vessels, tanks, and pipelines. These parts are installed by welding to the body or pipe and provide a leak-proof outlet under high pressure. Manufactured in accordance with the ASME B16.11 standard, welding bosses offer superior durability in Class 3000 and Class 6000 pressure classes.

Our products are manufactured from carbon steel (ASTM A105 / A105N), stainless steel (A182 F304 / F316), and alloy steel (A182 F11 / F22) materials. Threads cut with precision CNC machining create a reliable solution for instrument connections and sampling lines.

Applications

Pressure vessel and boiler manufacturing
Petrochemical storage tanks
Instrumentation and gauge connections
High-pressure steam lines
Oil and gas distribution systems

Quality and Certification

Each welding boss produced in Medisan facilities is under quality assurance with PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications, ensuring full compliance with international standards.

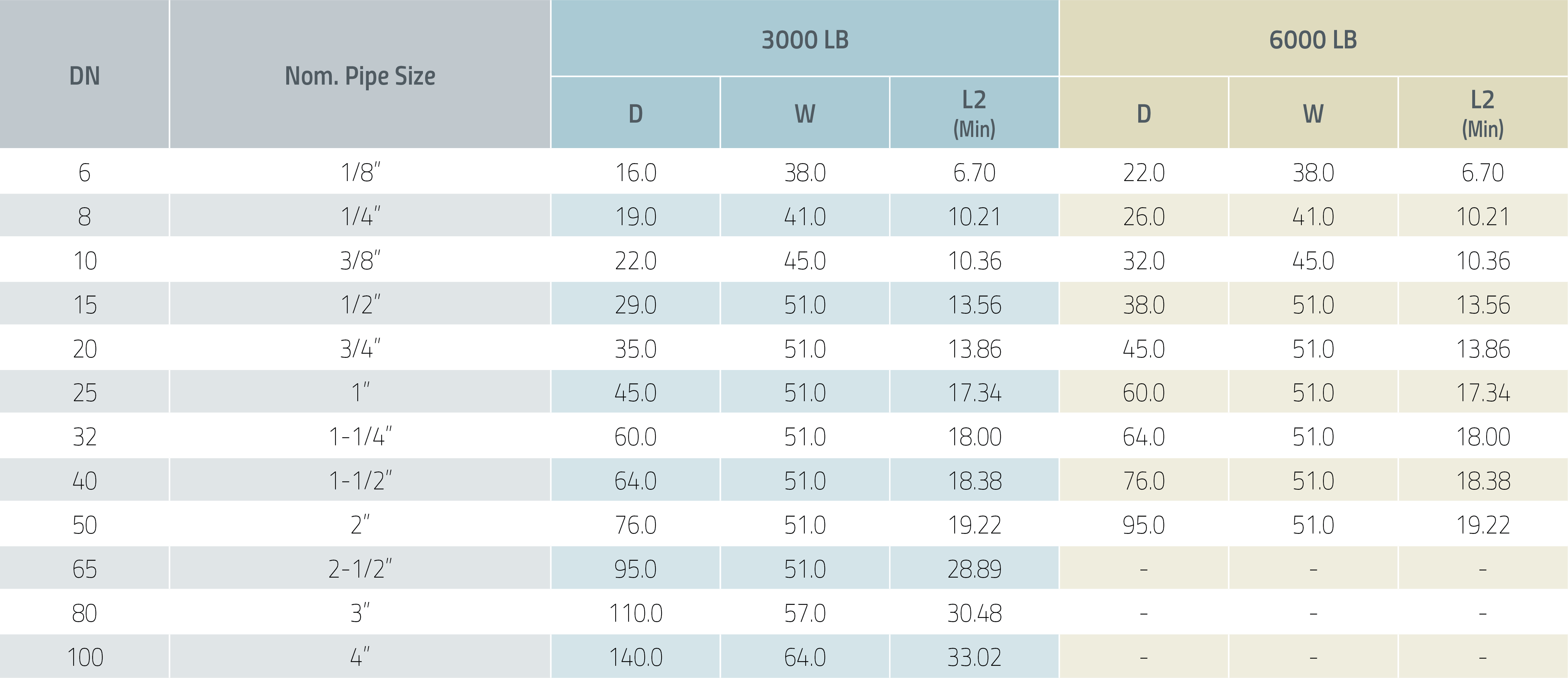

BS 3799-1974.

Dimensions are in millimeters.

(1) Dimension B is minimum length of perfect thread. The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than L2 (effective length of external thread) required by American National Standard for pipe threads (ANSI / ASME B1.20.1).
