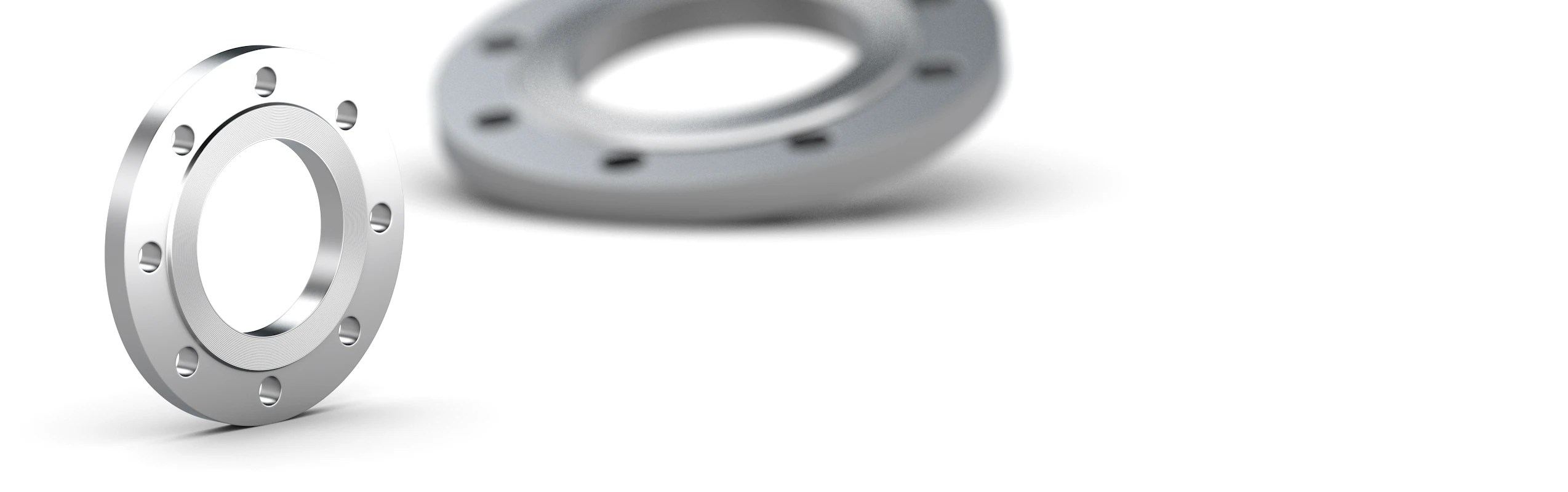

Flat Flanges PN6

360° View

Product Description

Flat flanges (Plate Flanges) are easy-to-install and economical connection elements assembled by sliding over the pipe and welding from both the inside and outside. The PN16 pressure class makes these flanges an ideal solution for industrial systems requiring medium to high pressure and advanced water transmission lines. Medisan manufactured PN16 flat flanges offer a guarantee of sealing thanks to high surface quality and dimensional precision.

Standards and Material:

Standards: EN 1092-1 / ISO 7005
Pressure Class: PN16
Material: Carbon Steel, Stainless Steel, Alloy Steel
Size Range: DN15 - DN2000

Applications

These flanges have a wide range of uses, generally in industrial installations, fire protection systems, pump and valve connections, treatment plants, and medium-pressure liquid/gas transmission lines.

Quality and Certification

Flat flanges manufactured by Medisan are fully compliant with EN 1092-1 standards and exhibit reliable performance in the PN16 pressure class. Our products are under international quality assurance with PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications.

TS ISO 7005-1

EN 1092-1 / TYPE 01

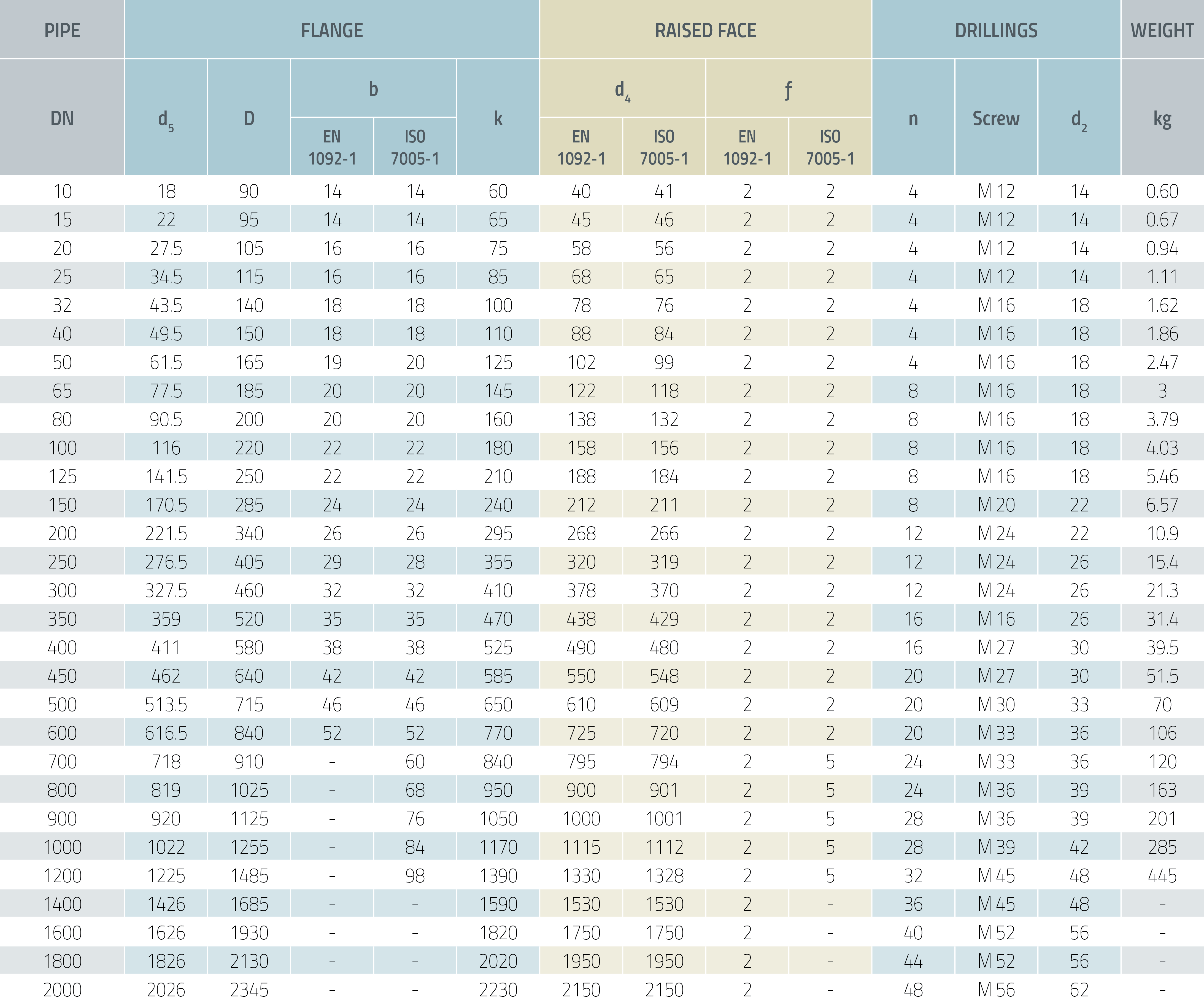

Dimensions are in millimeters.
