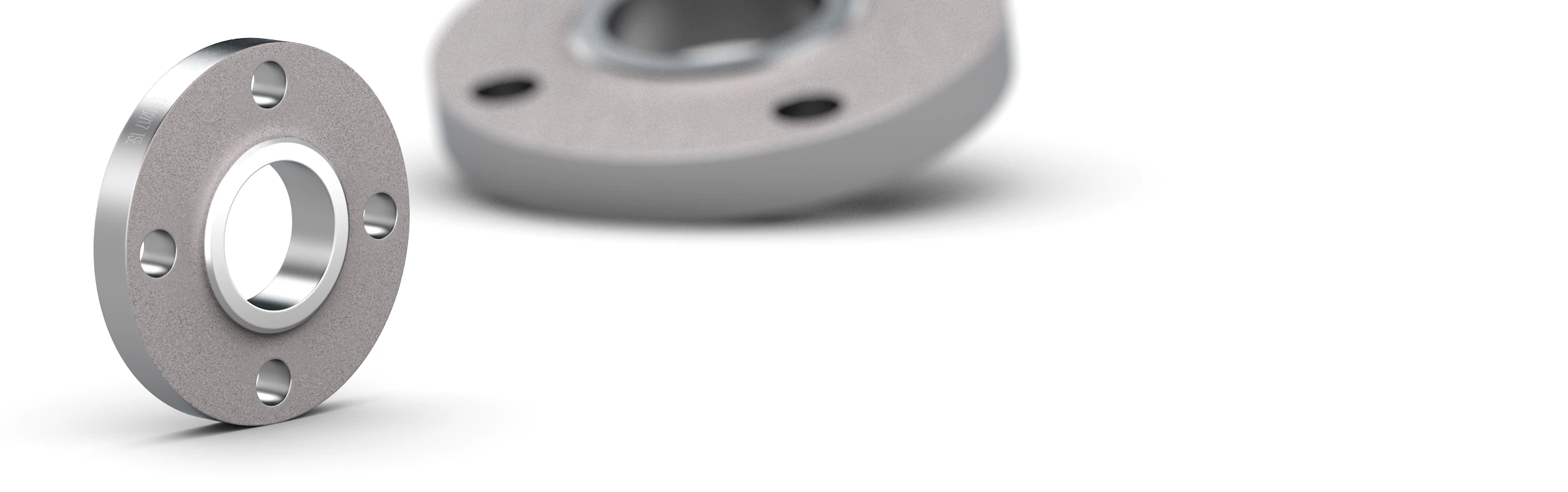

Slip On Flanges Class 150

Ürün Açıklaması

Slip-On Flanges are a type of flange that creates a leak-proof and robust connection by sliding the pipe into the flange and welding it from both the inside and outside. They are widely preferred in industrial facilities due to their ease of installation, low cost, and high durability.

Standards and Material:

Standards: ASME B16.5 - Class 150
Material: ASTM A105 (Carbon Steel), A182 F304/F316 (Stainless Steel)
Face Types: RF (Raised Face), FF (Flat Face), RTJ (Ring Type Joint)
Size Range: ½" - 24"

Kullanım Alanları

These flanges are generally used in oil and natural gas pipelines, refinery systems, power plants, and water-steam installations.

Kalite ve Sertifikasyon

Slip-On Flanges manufactured by Medisan are fully compliant with the ASME B16.5standard and offer reliable performance in the Class 150 pressure class. Each product is under quality assurance with PED 2014/68/EU and BV Factory Approval certifications.

ASME B16.5-2020

MSS SP-44-2019

BS 3293

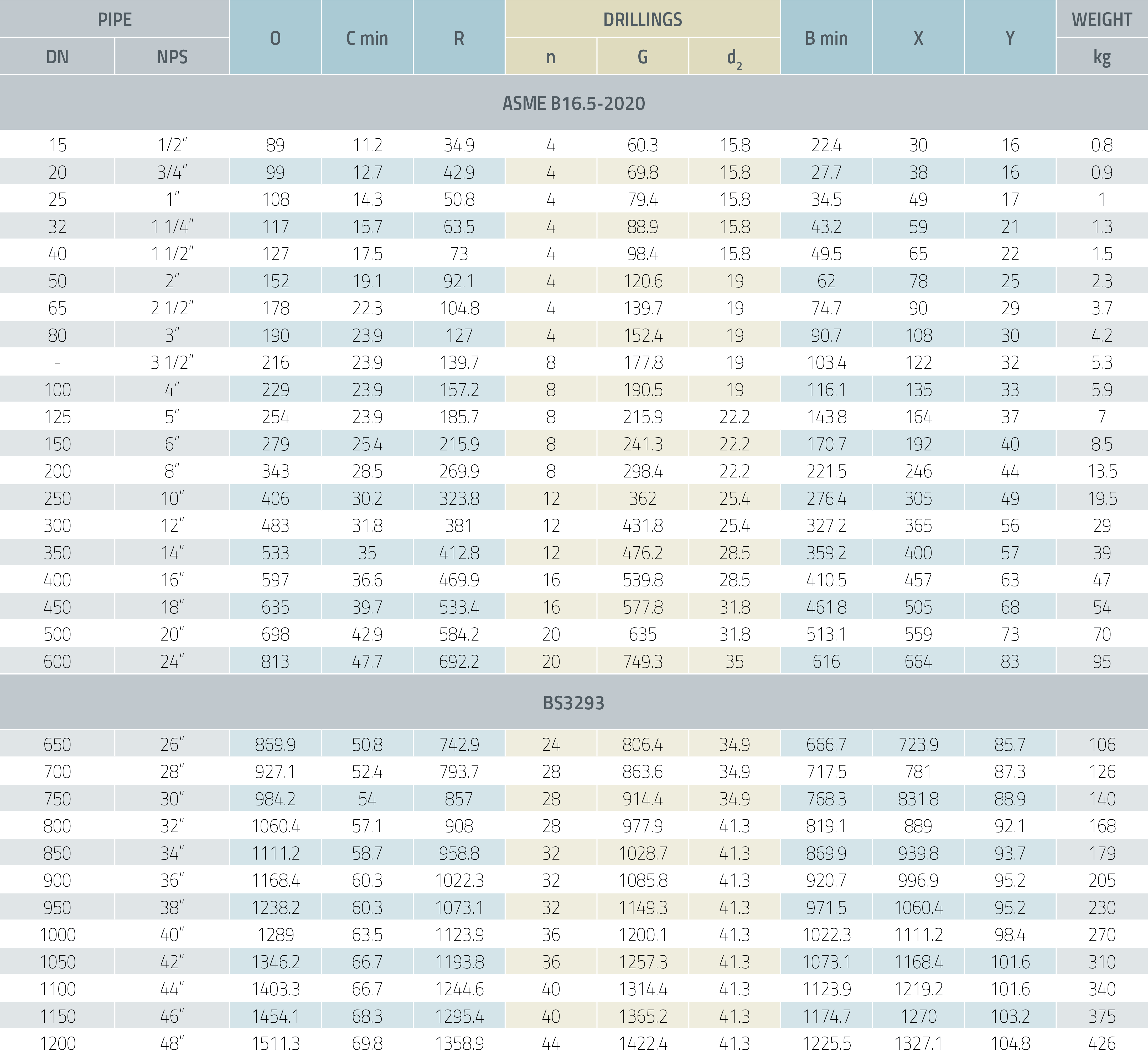

Dimensions are in millimeters.
