Lap Joint Flanges PN16

360° View

Product Description

Lap Joint Flanges are connection elements assembled to the pipeline together with a "Stub End" part, allowing them to rotate freely on the pipe. This feature allows for effortless alignment of bolt holes during installation. The PN16 pressure class makes these flanges an ideal solution in medium-to-high pressure systems, especially in processes where the line needs to be frequently dismantled for cleaning or inspection. Medisan manufactured Lap Joint flanges offer installation speed and operational ease while also guaranteeing structural safety.

Standards and Material:

Standards: EN 1092-1 / ISO 7005
Pressure Class: PN16
Material: Carbon Steel, Stainless Steel, Alloy Steel
Size Range: DN15 - DN1000

Applications

These flanges are generally used in industrial process lines, treatment plants, food and beverage industry, petrochemical facilities, and medium-to-high pressure transmission lines that require frequent dismantling for maintenance purposes.

Quality and Certification

Lap Joint flanges manufactured by Medisan are fully compliant with EN 1092-1 standards and offer reliable performance in the PN16 pressure class. Our products are under international quality assurance with PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications.

TS ISO 7005-1

EN 1092-1 / TYPE 02;32

DIN 2642

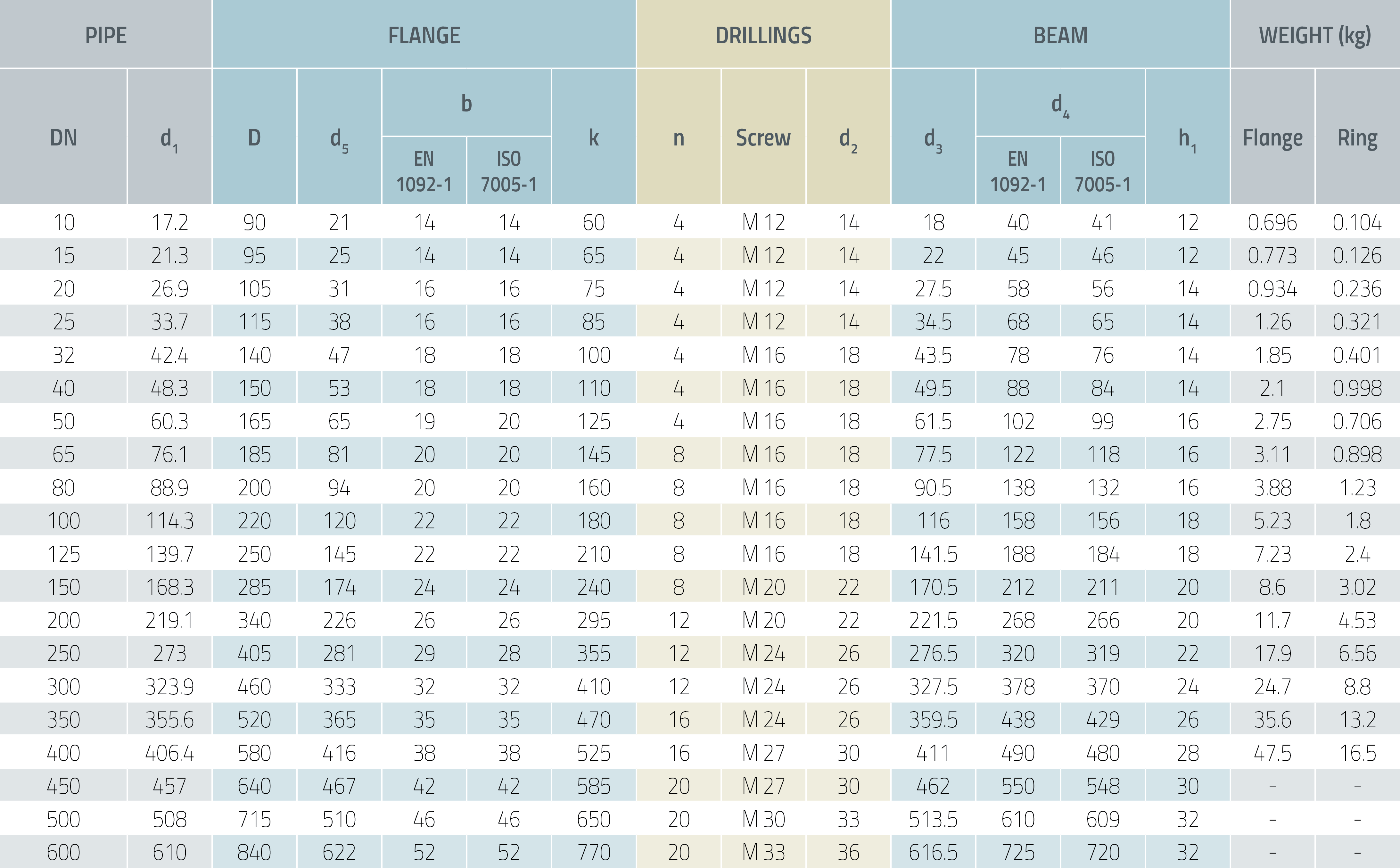

Dimensions are in millimeters.
