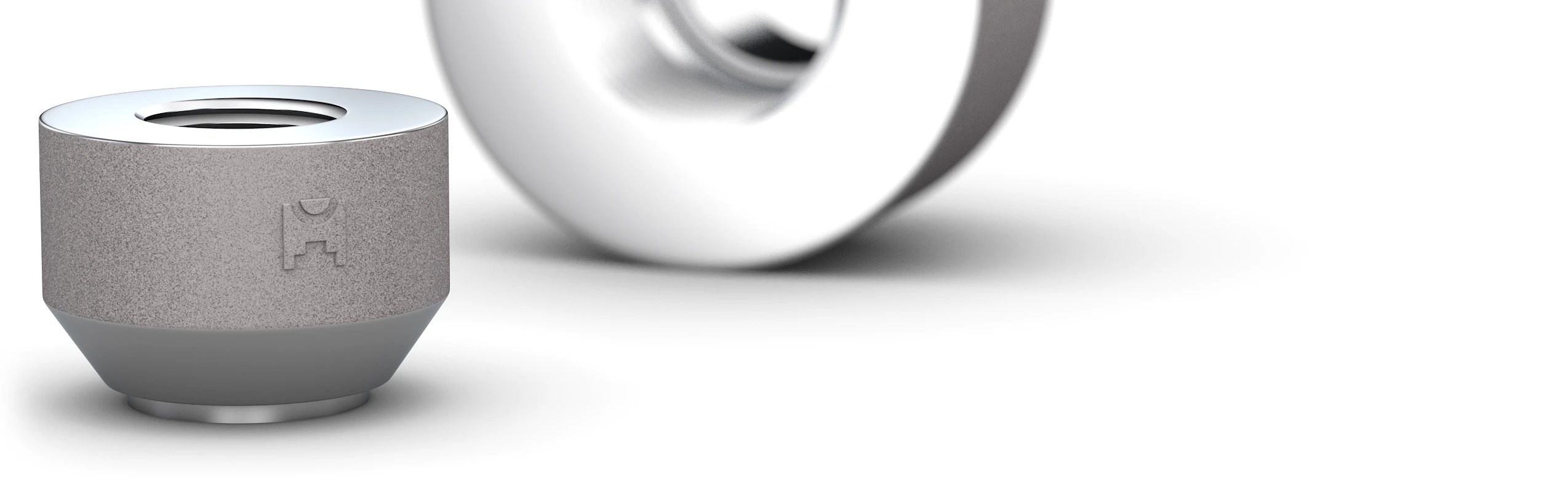

Couplet Boss Threaded

360° View

Product Description

The Couplet Boss Threaded manufactured by Medisan is a special fitting used to create a threaded outlet point in pipelines, pressure vessels, or tanks. It is generally preferred for instrumentation connections, sampling points, or small-diameter branch outlets. Manufactured from forged steel in accordance with the ASME B16.11 standard, these products offer high strength in Class 3000 and Class 6000 pressure classes.

Medisan manufactures this product group from carbon steel (ASTM A105 / A105N), stainless steel (A182 F304 / F316), and alloy steel (A182 F11 / F22) materials. Thanks to precision CNC machining technology, the thread structure ensures excellent sealing and ease of installation.

Applications

Oil and gas industry
Pressure vessel and tank manufacturing
Chemical and petrochemical plants
Instrumentation and measurement lines
Power plants

Quality and Certification

Medisan's PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications guarantee that each Couplet Boss product is manufactured in compliance with international quality and safety standards.

Page Description: [TR] Medisan Couplet Boss Threaded, tank ve borularda dişli çıkış sağlayan ASME B16.11 dövme fittings. [EN] Medisan Couplet Boss Threaded, ASME B16.11 forged fitting providing threaded outlet on tanks and pipes.

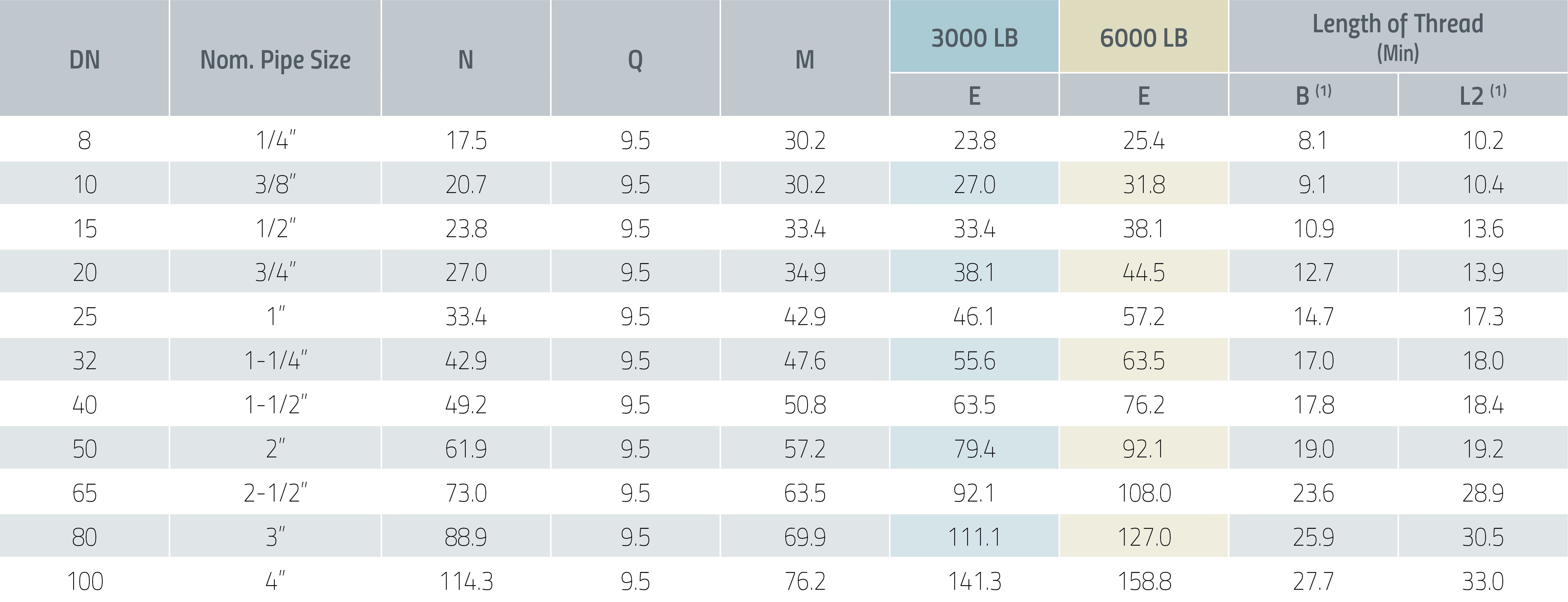

ASME B16.11-2021

Dimensions are in millimeters.

(1) Dimension B is minimum length of perfect thread. The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than L2 (effective length of external thread) required by American National Standard for pipe threads (ANSI / ASME B1.20.1).
