Union Male Threaded / SW

360° View

Product Description

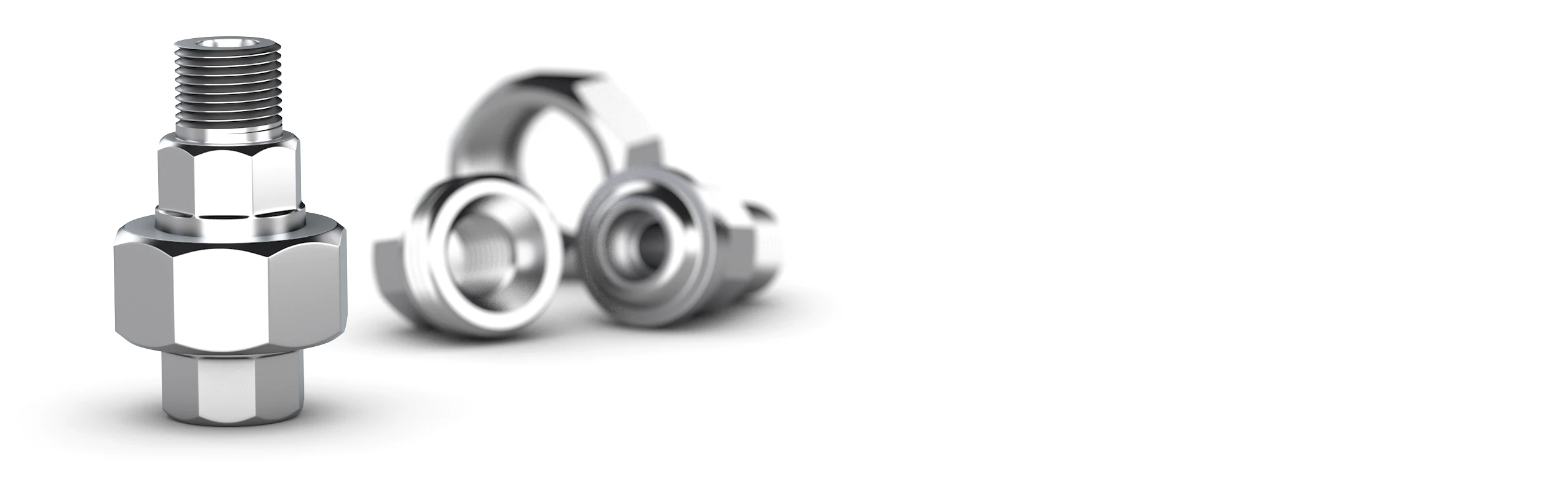

The male threaded - socket weld union manufactured by Medisan is a forged steel fitting designed to combine different connection methods (threaded and welded) in pipelines and ensure easy disassembly of the line for maintenance. It features one male threaded end and one socket weld end. Manufactured in accordance with ASME B16.11 and MSS-SP-83 standards, these unions offer reliable performance in Class 3000 and Class 6000 pressure classes.

Our products are manufactured from carbon steel (ASTM A105 / A105N), stainless steel (A182 F304 / F316), and alloy steel (A182 F11 / F22) materials. Precision-machined conical or flat seating surfaces ensure excellent sealing under high pressure.

Applications

Lines requiring frequent maintenance and cleaning
Instrumentation and gauge connections
Oil, gas, and petrochemical plants
High-pressure steam and condensate lines
Hydraulic system transitions

Quality and Certification

Medisan holds PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications, guaranteeing international quality standards in all union production.

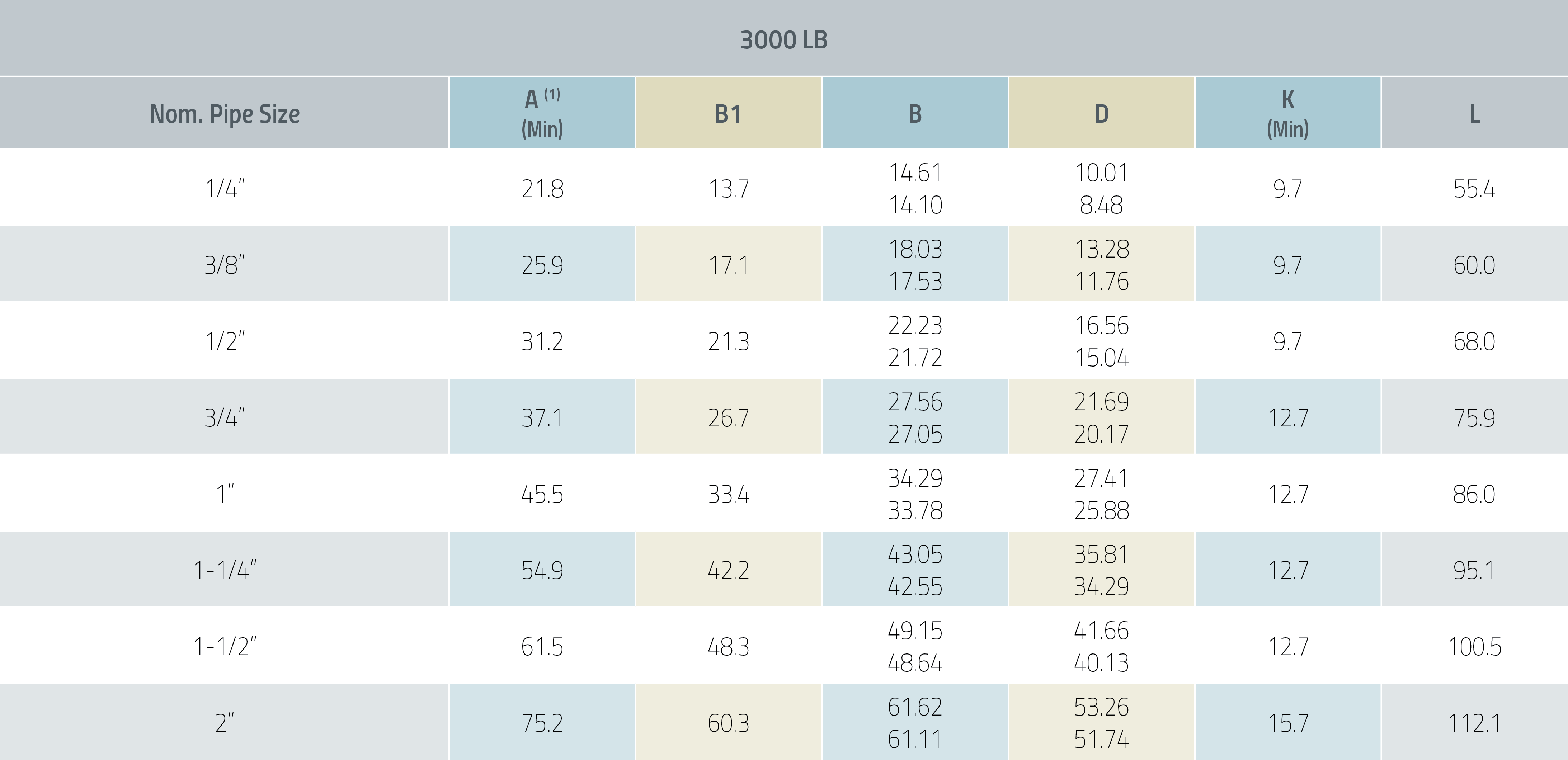

MSS SP-83-2018

Dimensions are in millimeters.

(1) Dimensions refer to MSS SP-83 TABLE 5.
