45° Elbow Socket Weld
360° View
Product Description
The socket weld 45° elbow manufactured by Medisan is a high-pressure resistant forged steel fitting used to change the flow direction by 45 degrees in pipelines. The socket weld design, where the pipe is inserted into the fitting and welded from the outside, ensures smooth internal flow and minimizes leakage risk. Manufactured in accordance with the ASME B16.11 standard, these elbows offer superior performance in Class 3000, 6000, and 9000 pressure classes.
Our products are manufactured from carbon steel (ASTM A105 / A105N), stainless steel (A182 F304 / F316), and alloy steel (A182 F11 / F22) materials. It is especially preferred in critical lines requiring high strength after welding.
Read More…
Applications
High-pressure steam and water lines
Oil and natural gas refineries
Chemical process piping
Power plants
Fire suppression systems
Read More…
Quality and Certification
Medisan carries out all socket weld elbow production under the assurance of PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications, ensuring full compliance with international standards.
Read More…

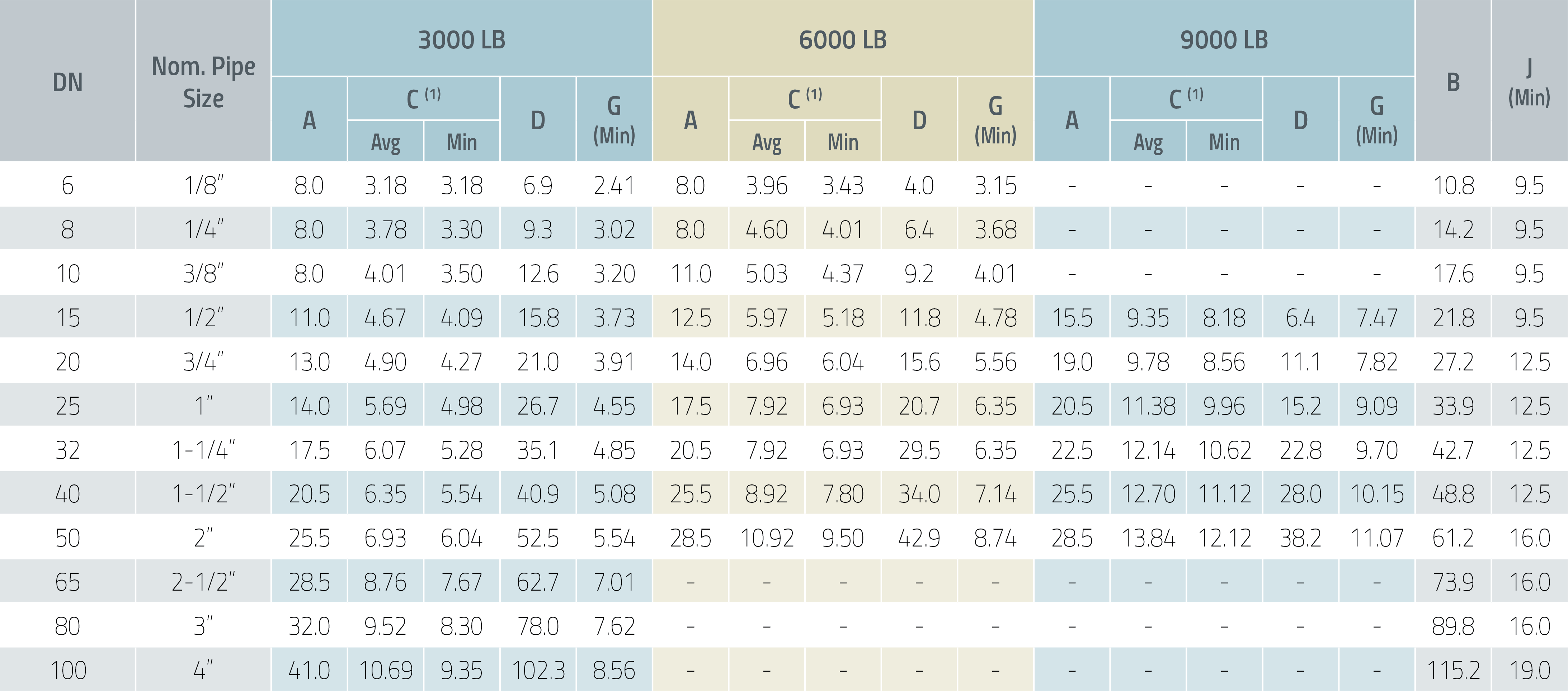

ASME B16.11-2021
Dimensions are in millimeters.
(1) Average of socket wall thickness around periphery shall be no less than listed values. The minimum values are permitted in localized areas.
