Cap Socket Weld
360° View
Product Description

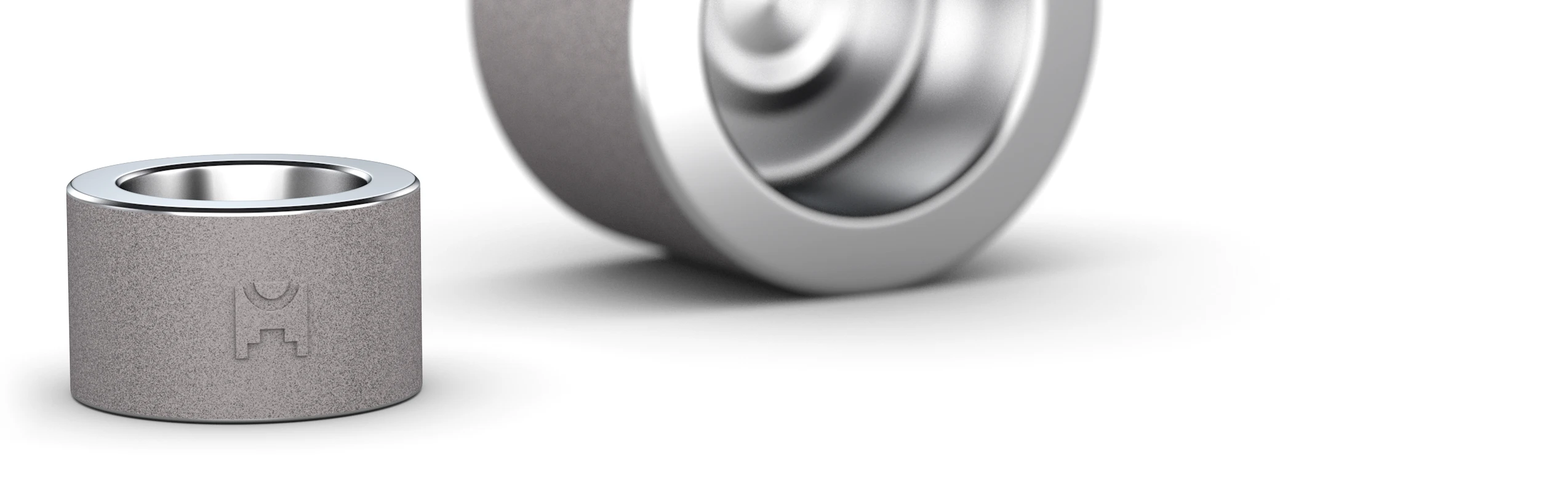

The socket weld cap manufactured by Medisan is a forged steel fitting used to permanently close open ends of pipelines and terminate flow. It is assembled by inserting the pipe end into the cap's socket and performing a fillet weld from the outside. Manufactured in accordance with the ASME B16.11 standard, these caps ensure high sealing and safety in Class 3000, 6000, and 9000 pressure classes.
Our products are manufactured from carbon steel (ASTM A105 / A105N), stainless steel (A182 F304 / F316), and alloy steel (A182 F11 / F22) materials. It is the ideal solution for safely blinding (closing) lines operating under high pressure and temperature.
Read More…
Applications
Termination of pipelines (blinding)
Line ends reserved for future expansions
Oil and natural gas piping systems
Chemical and petrochemical plants
High-pressure steam lines
Read More…
Quality and Certification
Medisan carries out all socket weld cap production under the assurance of PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications, ensuring full compliance with international standards.
Read More…

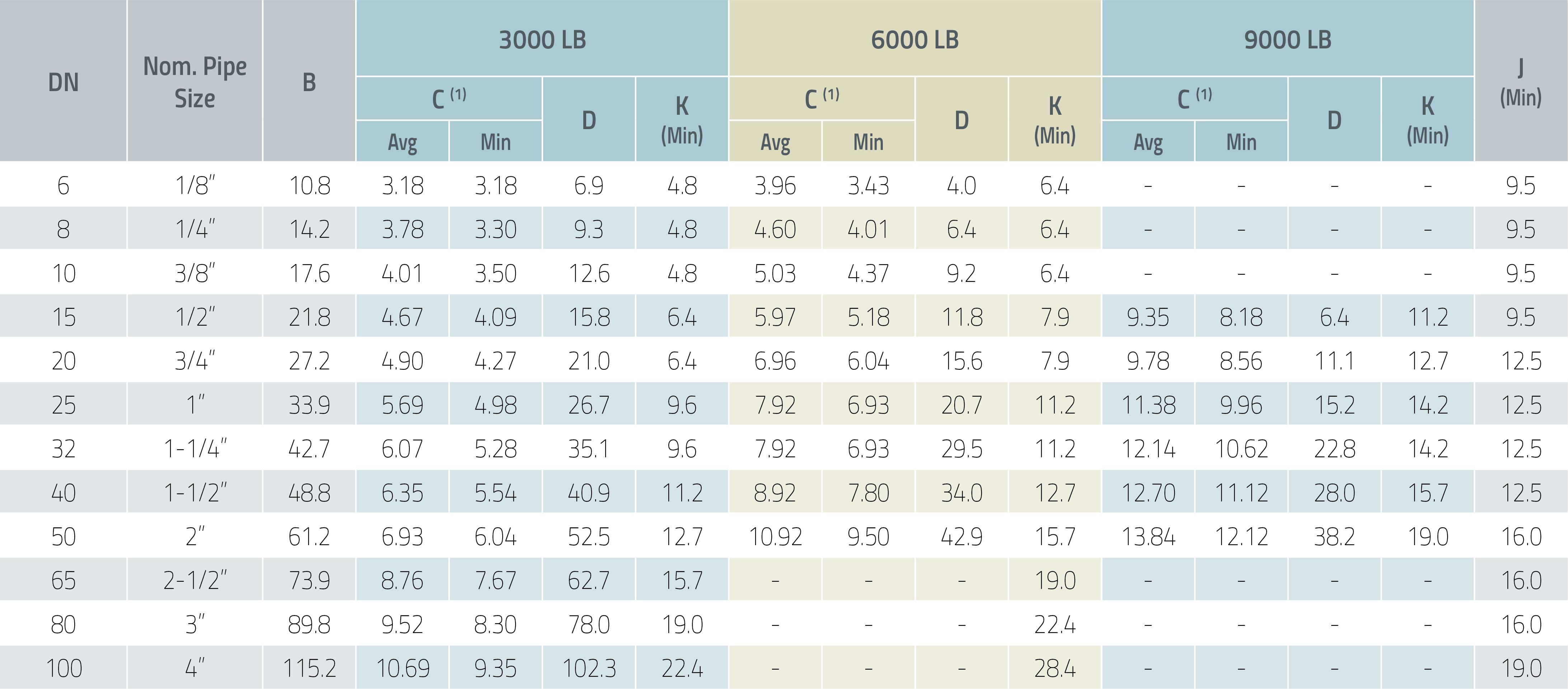

ASME B16.11-2021
Dimensions are in millimeters.
(1) Average of socket wall thickness around periphery shall be no less than listed values. The minimum values are permitted in localized areas.
