Flat Flanges PN10
360° View
Product Description
Flat flanges (Plate Flanges) are connection elements that offer economical and reliable solutions in low and medium pressure lines, assembled by passing the pipe through the flange and welding it from both sides. The PN10 pressure class makes these flanges an ideal option especially for water distribution networks and general industrial installations. Medisan manufactured flat flanges provide the advantage of excellent sealing and easy installation thanks to precision surface machining.
Standards and Material:
Standards: EN 1092-1 / ISO 7005
Pressure Class: PN10
Material: Carbon Steel, Stainless Steel, Alloy Steel
Size Range: DN15 - DN2000
Read More…
Applications
These flanges are generally preferred in municipal water lines, treatment plants, irrigation systems, HVAC (heating-cooling) circuits, and low-pressure air/gas transmission lines.
Read More…
Quality and Certification
Flat flanges manufactured by Medisan are fully compliant with EN 1092-1 standards and offer secure use in the PN10pressure class. Our products are under international quality assurance with PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications.
Read More…
TS ISO 7005-1
EN 1092-1 / TYPE 01
DIN 2576

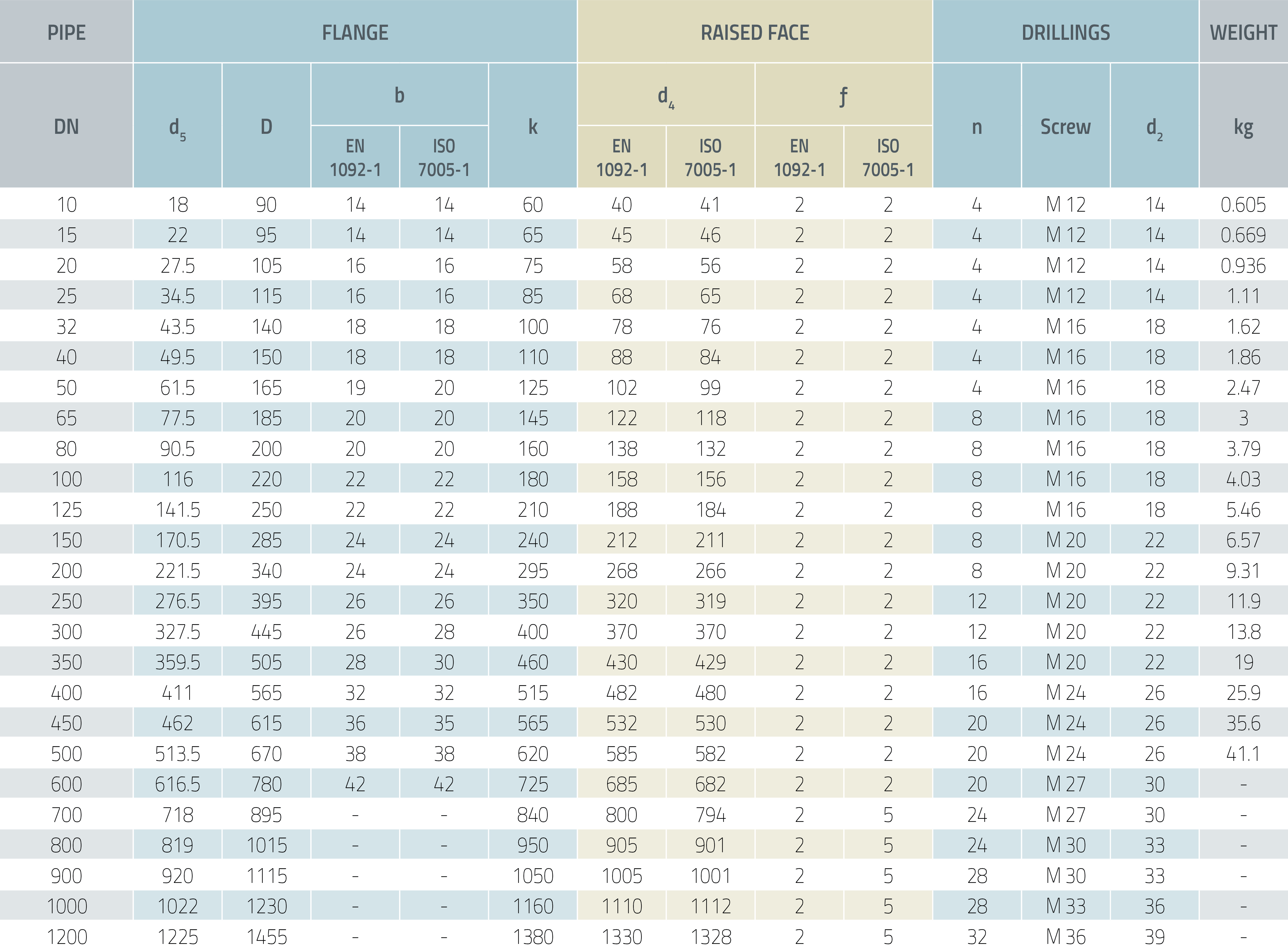

Dimensions are in millimeters.
Flat Flanges PN10
360° View
Product Description
Flat flanges (Plate Flanges) are connection elements that offer economical and reliable solutions in low and medium pressure lines, assembled by passing the pipe through the flange and welding it from both sides. The PN10 pressure class makes these flanges an ideal option especially for water distribution networks and general industrial installations. Medisan manufactured flat flanges provide the advantage of excellent sealing and easy installation thanks to precision surface machining.
Standards and Material:
Standards: EN 1092-1 / ISO 7005
Pressure Class: PN10
Material: Carbon Steel, Stainless Steel, Alloy Steel
Size Range: DN15 - DN2000
Read More…
Applications
These flanges are generally preferred in municipal water lines, treatment plants, irrigation systems, HVAC (heating-cooling) circuits, and low-pressure air/gas transmission lines.
Read More…
Quality and Certification
Flat flanges manufactured by Medisan are fully compliant with EN 1092-1 standards and offer secure use in the PN10pressure class. Our products are under international quality assurance with PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications.
Read More…
TS ISO 7005-1
EN 1092-1 / TYPE 01
DIN 2576
Dimensions are in millimeters.
Flat Flanges PN10
360° View
Product Description
Flat flanges (Plate Flanges) are connection elements that offer economical and reliable solutions in low and medium pressure lines, assembled by passing the pipe through the flange and welding it from both sides. The PN10 pressure class makes these flanges an ideal option especially for water distribution networks and general industrial installations. Medisan manufactured flat flanges provide the advantage of excellent sealing and easy installation thanks to precision surface machining.
Standards and Material:
Standards: EN 1092-1 / ISO 7005
Pressure Class: PN10
Material: Carbon Steel, Stainless Steel, Alloy Steel
Size Range: DN15 - DN2000
Read More…
Applications
These flanges are generally preferred in municipal water lines, treatment plants, irrigation systems, HVAC (heating-cooling) circuits, and low-pressure air/gas transmission lines.
Read More…
Quality and Certification
Flat flanges manufactured by Medisan are fully compliant with EN 1092-1 standards and offer secure use in the PN10pressure class. Our products are under international quality assurance with PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications.
Read More…
TS ISO 7005-1
EN 1092-1 / TYPE 01
DIN 2576
Dimensions are in millimeters.
