Threaded Flanges Class 600

360° View

Product Description

Threaded Flanges are practical and secure fittings assembled to the pipeline via a threaded connection method without the need for welding. The Class 600 pressure class makes these flanges ideal for high-pressure areas where welding is hazardous or impossible (e.g., explosive environments). Medisan manufactured threaded flanges guarantee sealing and offer high strength thanks to their precision thread structure.

Standards and Material:

Standards: ASME B16.5 - Class 600
Material: ASTM A105 (Carbon Steel), A182 F304/F316 (Stainless Steel), A182 F11/F22 (Alloy Steel)
Face Types: RF (Raised Face), RTJ (Ring Type Joint)
Size Range: ½" - 24"

Applications

These flanges are generally used in high-pressure gas lines, facilities with flammable and explosive fluids, instrumentation connections, and special piping systems where post-weld heat treatment is not desired.

Quality and Certification

Threaded Flanges manufactured by Medisan are fully compliant with the ASME B16.5 standard and offer superior performance in the Class 600 pressure class. Each product is under quality assurance with PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications.

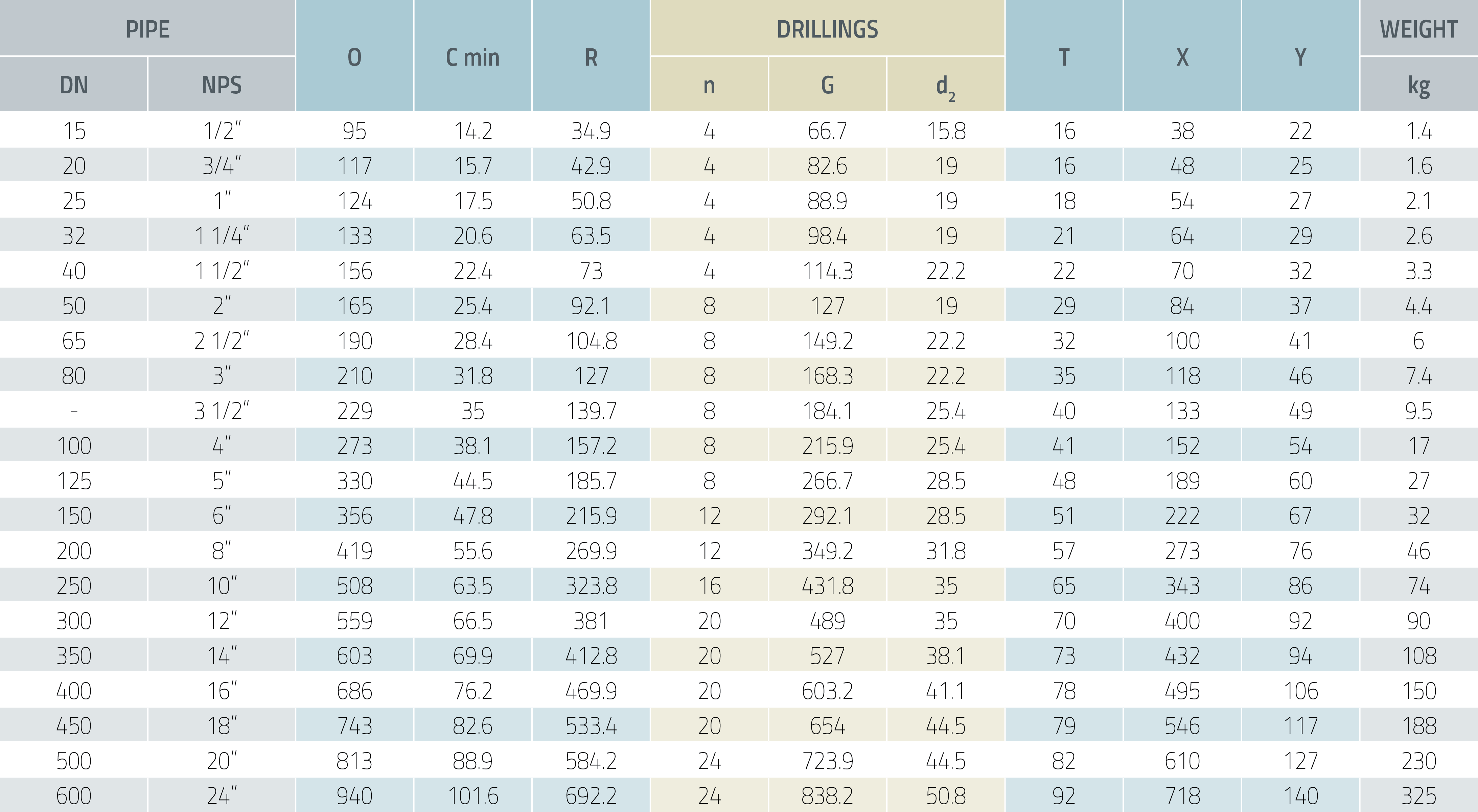

ASME B16.5-2020

Dimensions are in millimeters.
