Blind Flanges PN25

360° View

Product Description

Blind Flanges are connection elements used to close the ends of pipelines, completely stop the flow, or seal line ends for future expansions. These flanges, which do not have a hole in the center, are critical safety components that directly withstand high internal pressure and bolt loads. The PN25 pressure class makes these flanges a reliable closing solution for high-pressure systems, especially for heavy industrial plants and high-flow transmission lines. Medisan manufactured blind flanges provide full sealing even under the most demanding conditions thanks to their robust body structure.

Standards and Material:

Standards: EN 1092-1 / ISO 7005
Pressure Class: PN25
Material: Carbon Steel, Stainless Steel, Alloy Steel
Size Range: DN15 - DN1000

Applications

These flanges are generally used in high-pressure water transmission networks, chemical process units, oil and gas pipelines, pumping stations, and for blinding storage tanks operating under high pressure.

Quality and Certification

Blind flanges manufactured by Medisan are fully compliant with EN 1092-1 standards and offer superior performance in the PN25 pressure class. Our products are under international quality assurance with PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications.

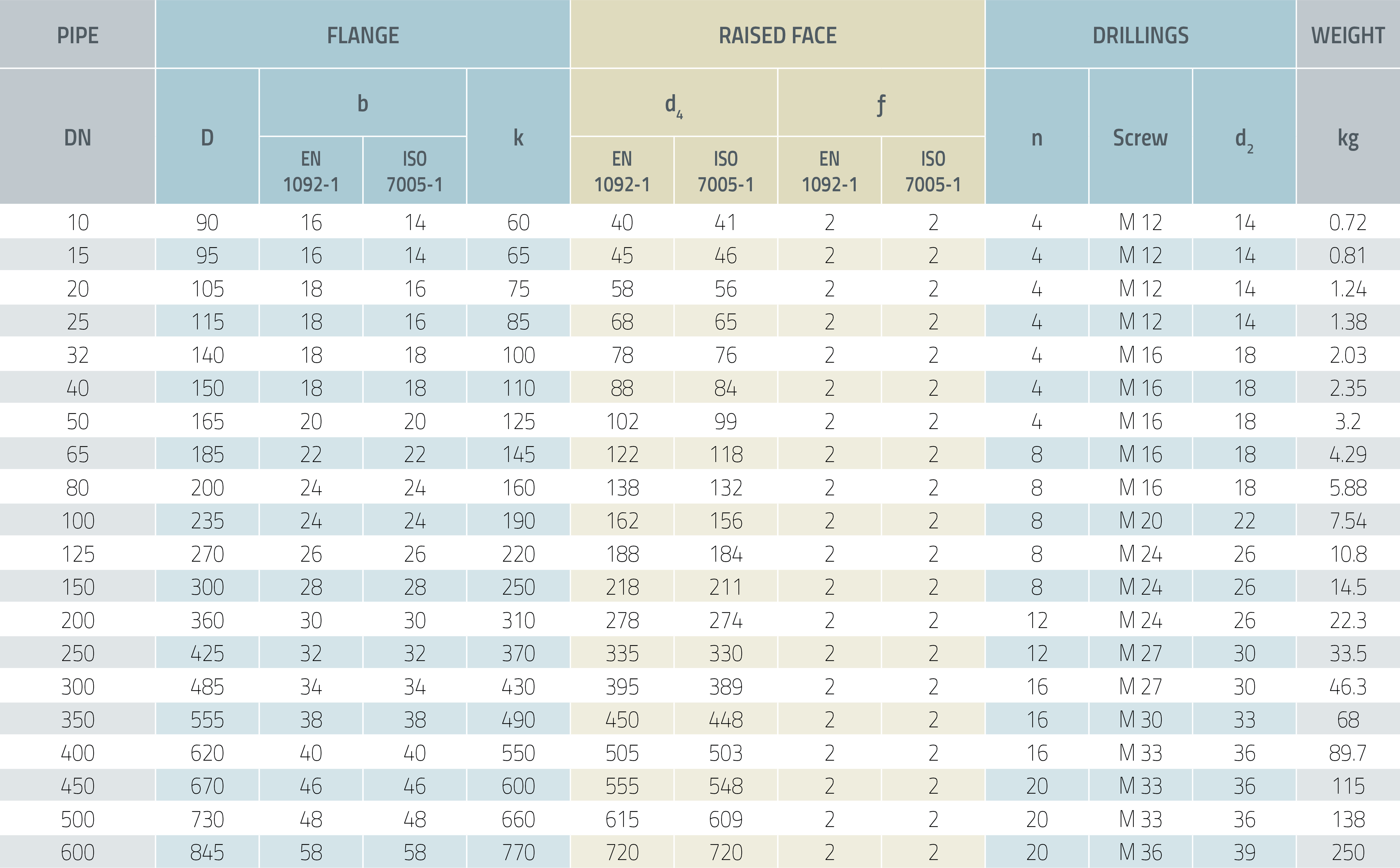

TS ISO 7005-1

EN 1092-1 / TYPE 05

DIN 2527

Dimensions are in millimeters.
