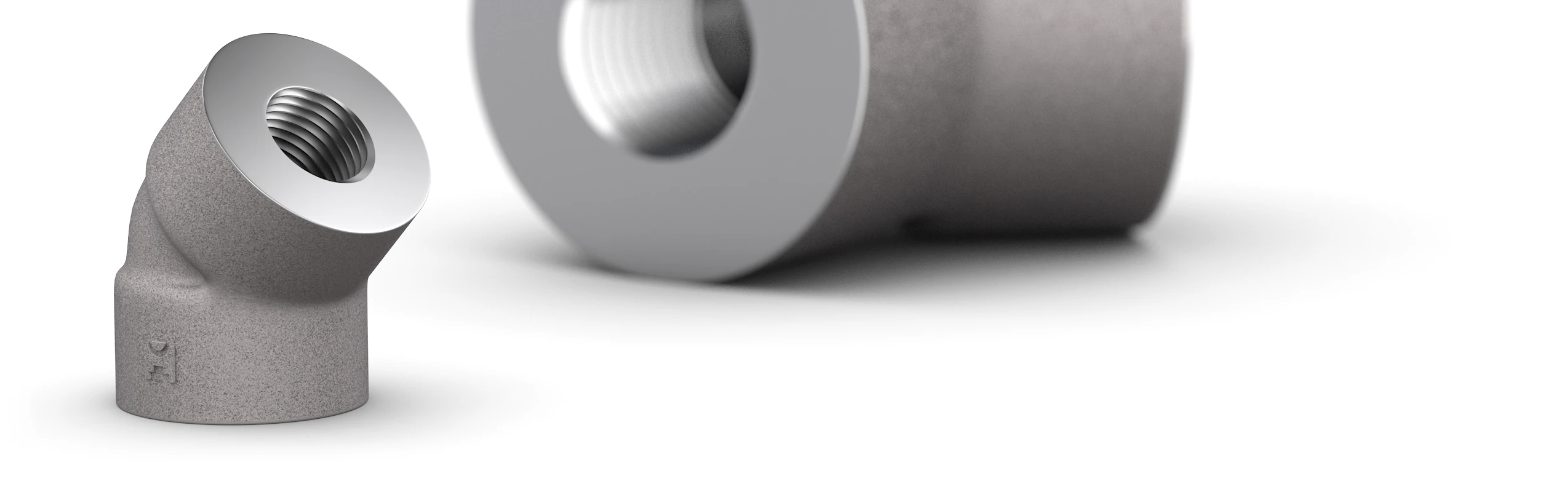

45° Elbow Threaded

360° View

Product Description

45° threaded elbows manufactured by Medisan are used to change the flow direction by 45 degrees in pipelines. All products comply fully with ASME B16.11 standards and are produced in pressure classes 2000, 3000, 6000, and 9000.

Medisan utilizes forged steel production technology for high-pressure systems. This product group is manufactured from carbon steel (ASTM A105 / A105N), stainless steel (A182 F304 / F316), and alloy steel (A182 F11/F22)materials. Each elbow is produced with precision CNC machining to achieve a leak-tight and durable threaded structure.

Applications

Oil and natural gas refineries
Chemical and petrochemical plants
Power generation facilities
High-pressure pipeline and fire-suppression systems
Water and steam lines

Quality and Certification

Medisan holds 2014/68/EU Pressure Equipment Directive (PED) certification, conducting all quality control processes within this scope.

Our products are highly reliable fittings preferred in projects across Europe and the Middle East.

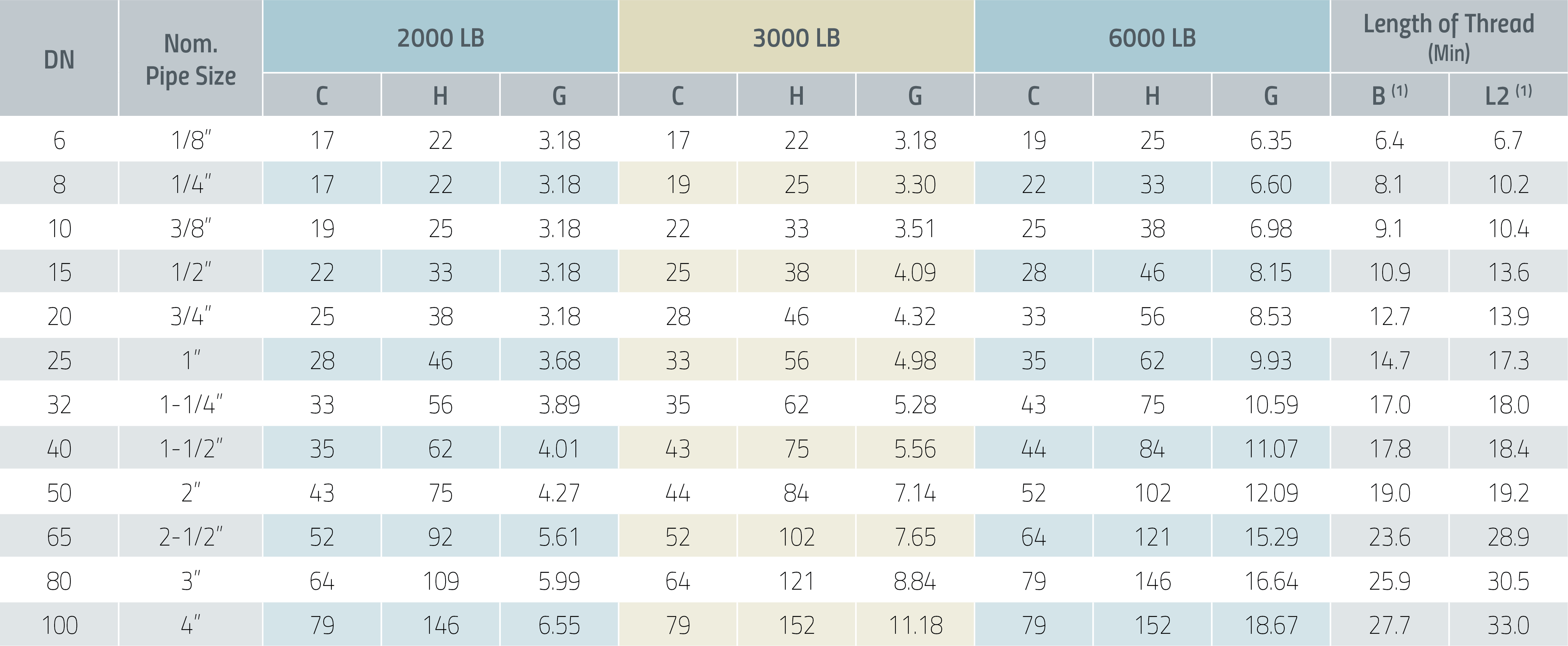

ASME B16.11-2021

Dimensions are in millimeters.

(1) Dimension B is minimum length of perfect thread. The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than L2 (effective length of external thread) required by American National Standard for pipe threads (ANSI / ASME B1.20.1).
