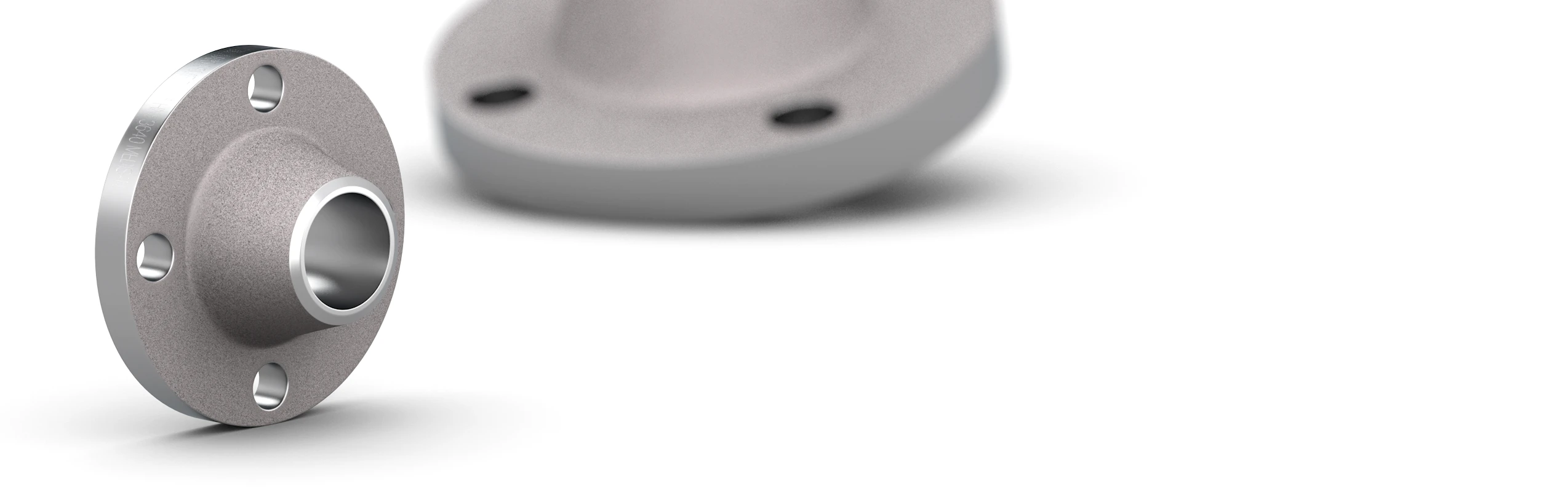

Welding Neck Flanges PN10

360° View

Product Description

Welding neck flanges are one of the most reliable flange types that increase the resistance at the connection point by transferring stress to the pipe thanks to their tapered hub structure in pipelines requiring high sealing. The PN10 pressure class makes these flanges ideal for medium-pressure lines, especially for water transmission and general industrial installations. Medisan manufactured PN10 welding neck flanges ensure a smooth flow transition in the pipeline with precision machining quality.

Standards and Material:

Standards: EN 1092-1 / ISO 7005
Pressure Class: PN10
Material: Carbon Steel, Stainless Steel, Alloy Steel
Size Range: DN15 - DN2000

Applications

These flanges are generally used in municipal water networks, treatment plants, irrigation systems, HVAC (Heating-Cooling) lines, and low-to-medium pressure industrial fluid transmission lines.

Quality and Certification

Welding neck flanges manufactured by Medisan are fully compliant with EN 1092-1 standards and offer high performance in the PN10 pressure class. Our products are under international quality assurance with PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications.

TS ISO 7005-1

EN 1092-1 / TYPE 11

DIN 2632

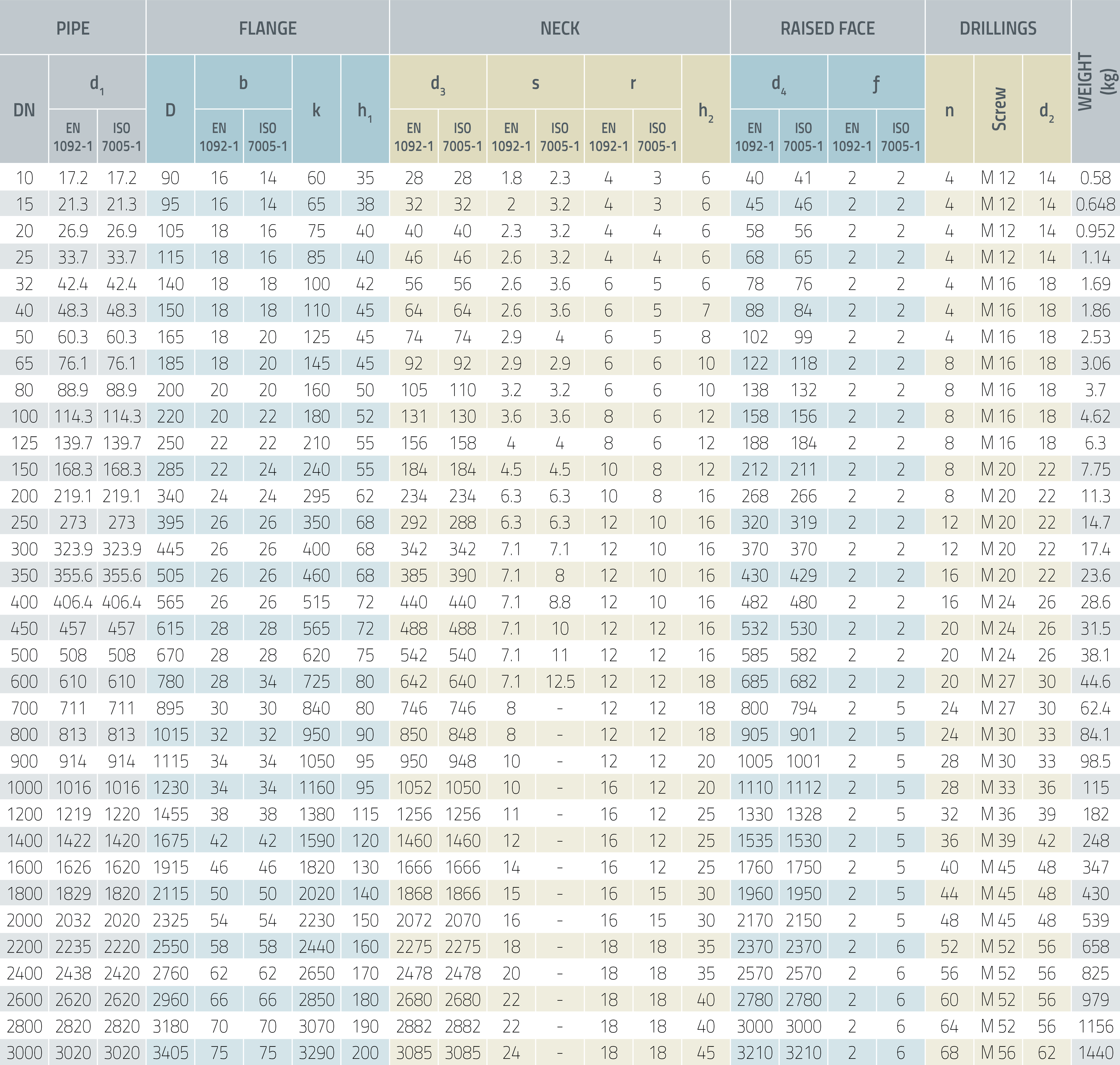

Dimensions are in millimeters.
