Blind Flanges PN40

360° View

Product Description

Blind Flanges are connection elements used to close the ends of pipelines, completely stop the flow, or securely seal line ends for future expansions. These flanges, which do not have a hole in the center, are the most critical safety components that directly withstand high internal pressure, temperature fluctuations, and bolt loads. The PN40 pressure class makes these flanges the most reliable closing solution for industrial systems requiring high performance and critical process lines. Medisan manufactured blind flanges offer full sealing even under the most demanding conditions thanks to their robust body structure and precision surface machining.

Standards and Material:

Standards: EN 1092-1 / ISO 7005
Pressure Class: PN40
Material: Carbon Steel, Stainless Steel, Alloy Steel
Size Range: DN15 - DN600

Applications

These flanges are generally used in high-pressure superheated steam lines, chemical reactors, oil refineries, power plant piping, high-pressure pumping stations, and critical lines requiring absolute isolation during maintenance.

Quality and Certification

Blind flanges manufactured by Medisan are fully compliant with EN 1092-1 standards and exhibit superior durability in the PN40 pressure class. Our products are under international quality assurance with PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications.

TS ISO 7005-1

EN 1092-1 / TYPE 05

DIN 2527

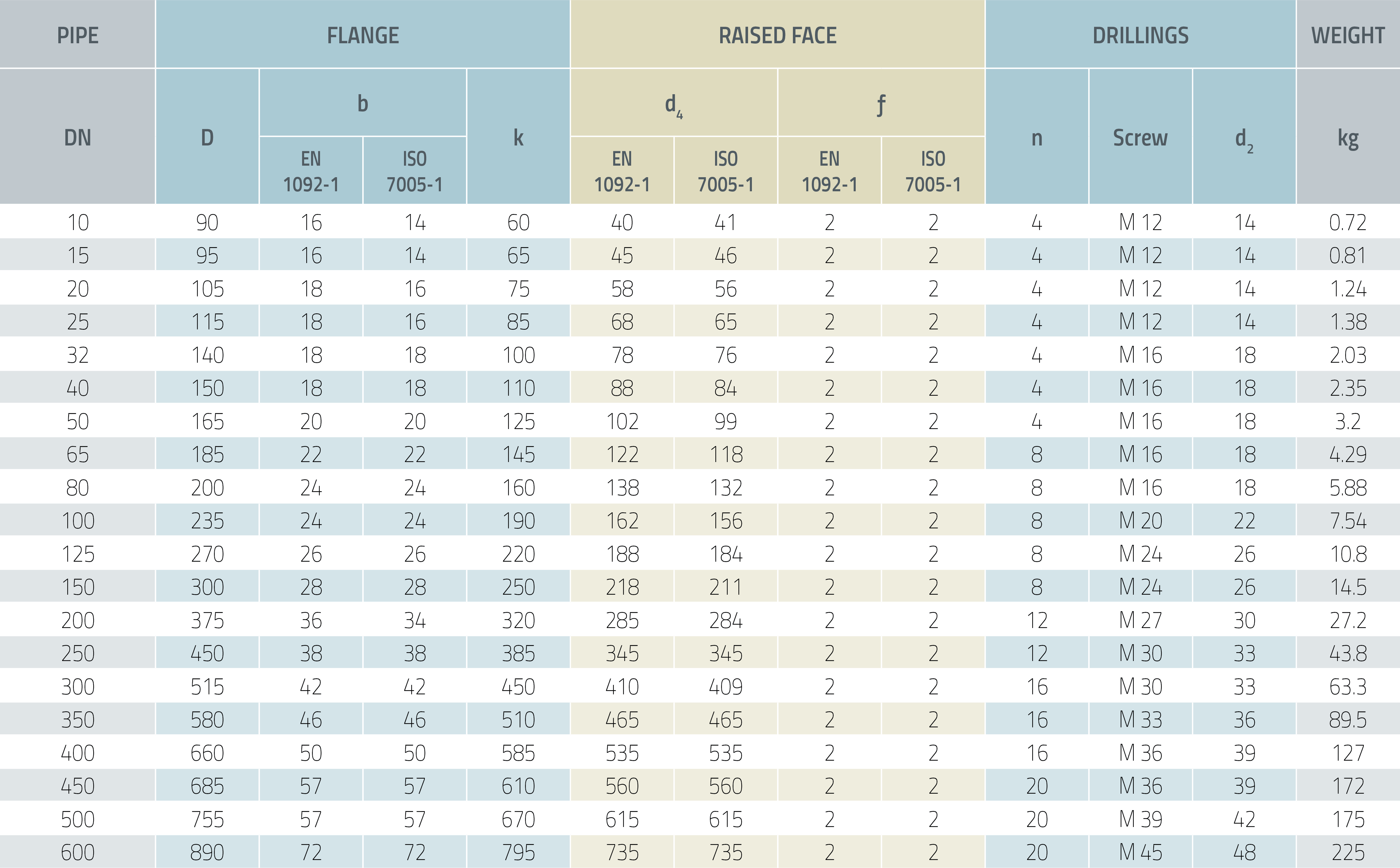

Dimensions are in millimeters.
