Welding Neck Flanges PN63

360° View

Product Description

Welding neck flanges are one of the most reliable flange types that increase the resistance at the connection point by transferring stress to the pipe thanks to their tapered hub structure in pipelines requiring high sealing. The PN63 pressure class makes these flanges ideal for very high-pressure systems and extreme operating conditions. Medisan manufactured PN63 welding neck flanges ensure smooth flow and maximum safety in the most demanding processes thanks to their precision machining quality.

Standards and Material:

Standards: EN 1092-1 / ISO 7005
Pressure Class: PN63 (PN64)
Material: Carbon Steel, Stainless Steel, Alloy Steel
Size Range: DN15 - DN400

Applications

These flanges are generally used as critical connection points in high-pressure gas transmission lines, hydraulic systems, oil and chemical plants, high-pressure steam boilers, and heavy industrial equipment.

Quality and Certification

Welding neck flanges manufactured by Medisan are fully compliant with EN 1092-1 standards and offer superior durability in the PN63 pressure class. Our products are under international quality assurance with PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications.

TS ISO 7005-1

EN 1092-1 / TYPE 11

DIN 2636

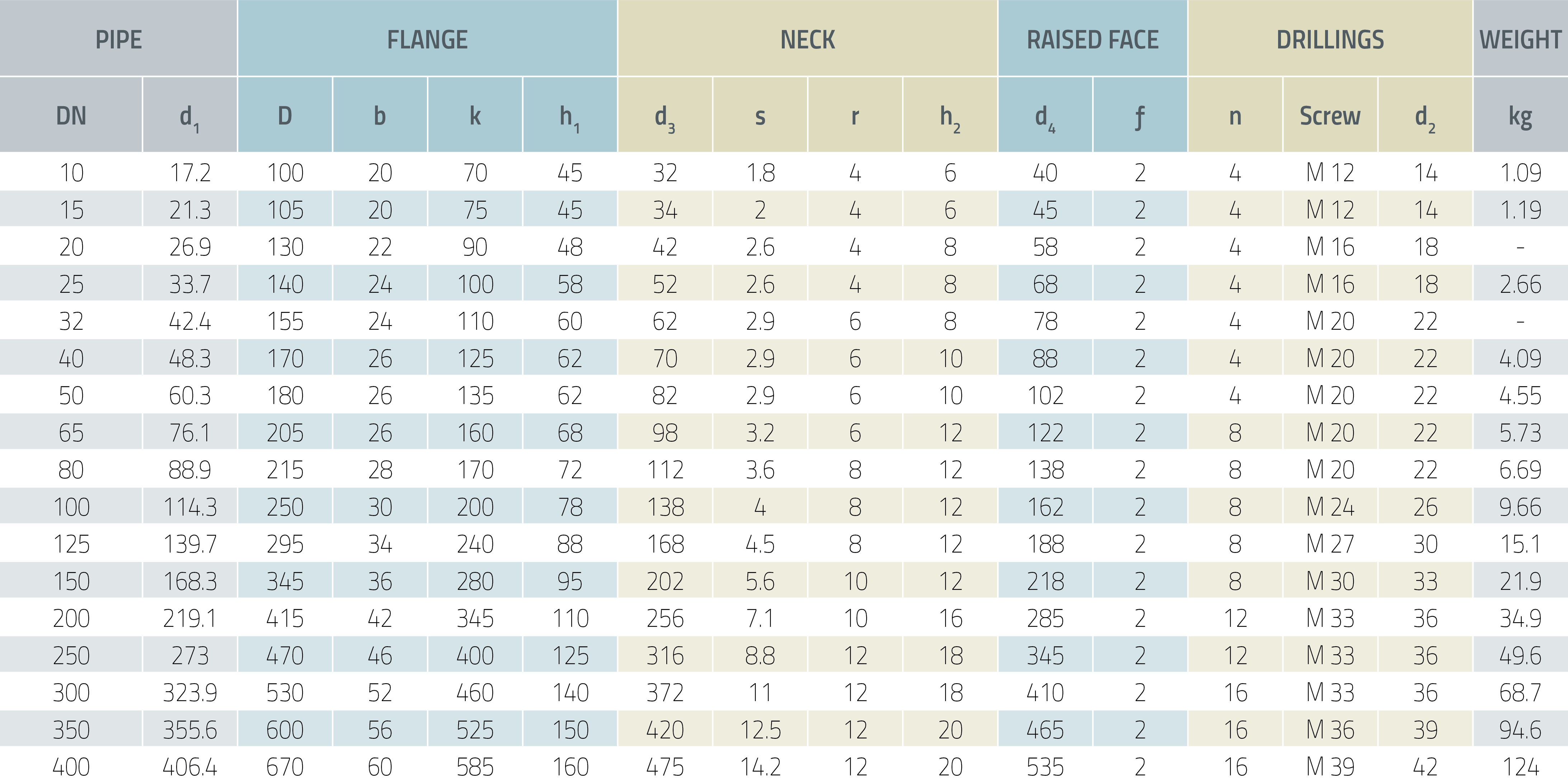

Dimensions are in millimeters.
