Flat Flanges PN25

360° View

Product Description

Flat flanges (Plate Flanges) are high-strength connection elements assembled by sliding over the pipe and welding from both the inside and outside. The PN25 pressure class makes these flanges a reliable solution for industrial systems requiring high pressure and heavy-duty liquid transmission lines. Medisan manufactured PN25 flat flanges keep sealing security at the highest level thanks to high surface quality and precision workmanship.

Standards and Material:

Standards: EN 1092-1 / ISO 7005
Pressure Class: PN25
Material: Carbon Steel, Stainless Steel, Alloy Steel
Size Range: DN15 - DN1000

Applications

These flanges are generally preferred in high-pressure water transmission networks, industrial process plants, pumping stations, valve connections, and medium-to-high pressure chemical fluid lines.

Quality and Certification

Flat flanges manufactured by Medisan are fully compliant with EN 1092-1 standards and exhibit reliable performance in the PN25 pressure class. Our products are under international quality assurance with PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications.

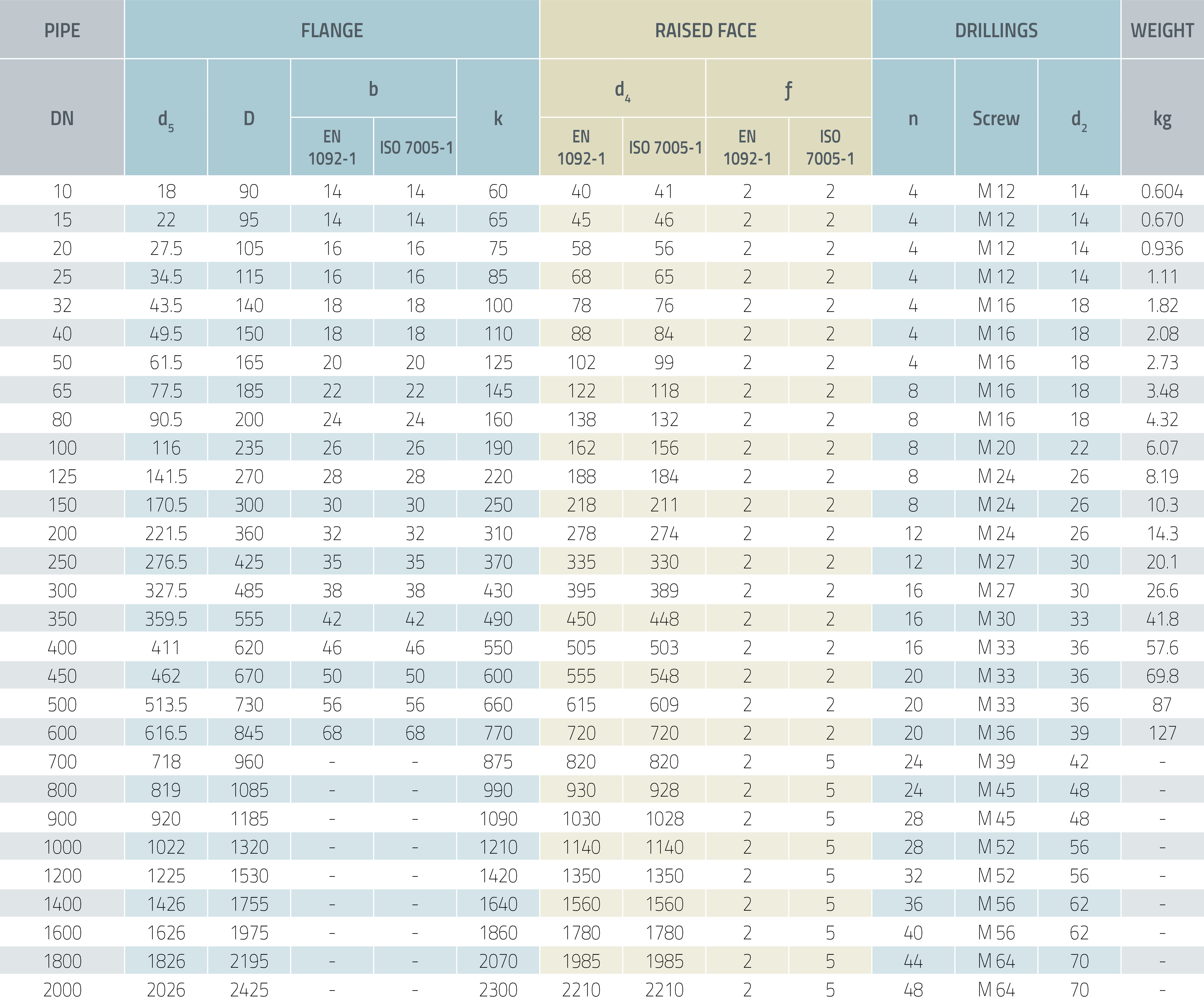

TS ISO 7005-1

EN 1092-1 / TYPE 01

Dimensions are in millimeters.
