Socket Weld Union
360° View
Product Description

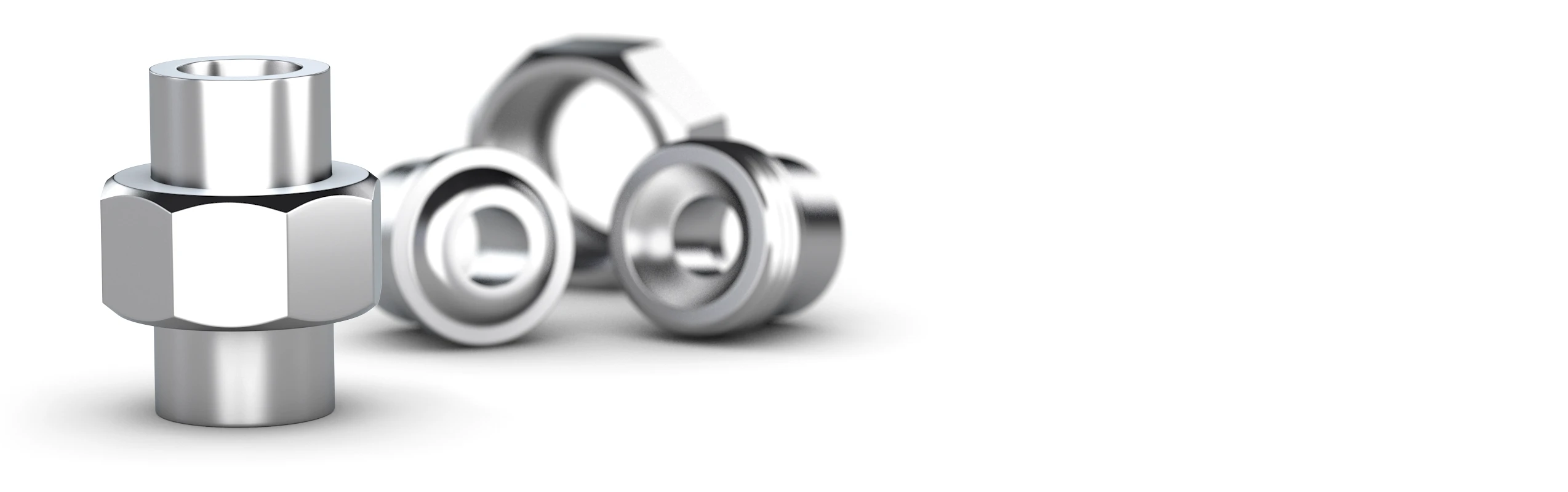

The socket weld union manufactured by Medisan is a forged steel fitting used at critical points in pipelines that require dismantling for maintenance, repair, or cleaning. Featuring socket weld (SW) structures on both ends, these unions are assembled by inserting the pipes into the fitting and welding from the outside. Manufactured in accordance with ASME B16.11 and MSS-SP-83 standards, our products provide high sealing and durability in Class 3000 and Class 6000pressure classes.
Our products are manufactured from carbon steel (ASTM A105 / A105N), stainless steel (A182 F304 / F316), and alloy steel (A182 F11 / F22) materials. Conical or flat seating surfaces create an excellent seal with metal-to-metal contact under high pressure and allow the line to be easily separated.
Read More…
Applications
Process lines requiring frequent maintenance
Petrochemical and refinery plants
High-pressure steam and condensate lines
Instrumentation and control systems
Hydraulic and pneumatic circuits
Read More…
Quality and Certification
Medisan carries out all socket weld union production under the assurance of PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications, ensuring full compliance with international standards.
Read More…

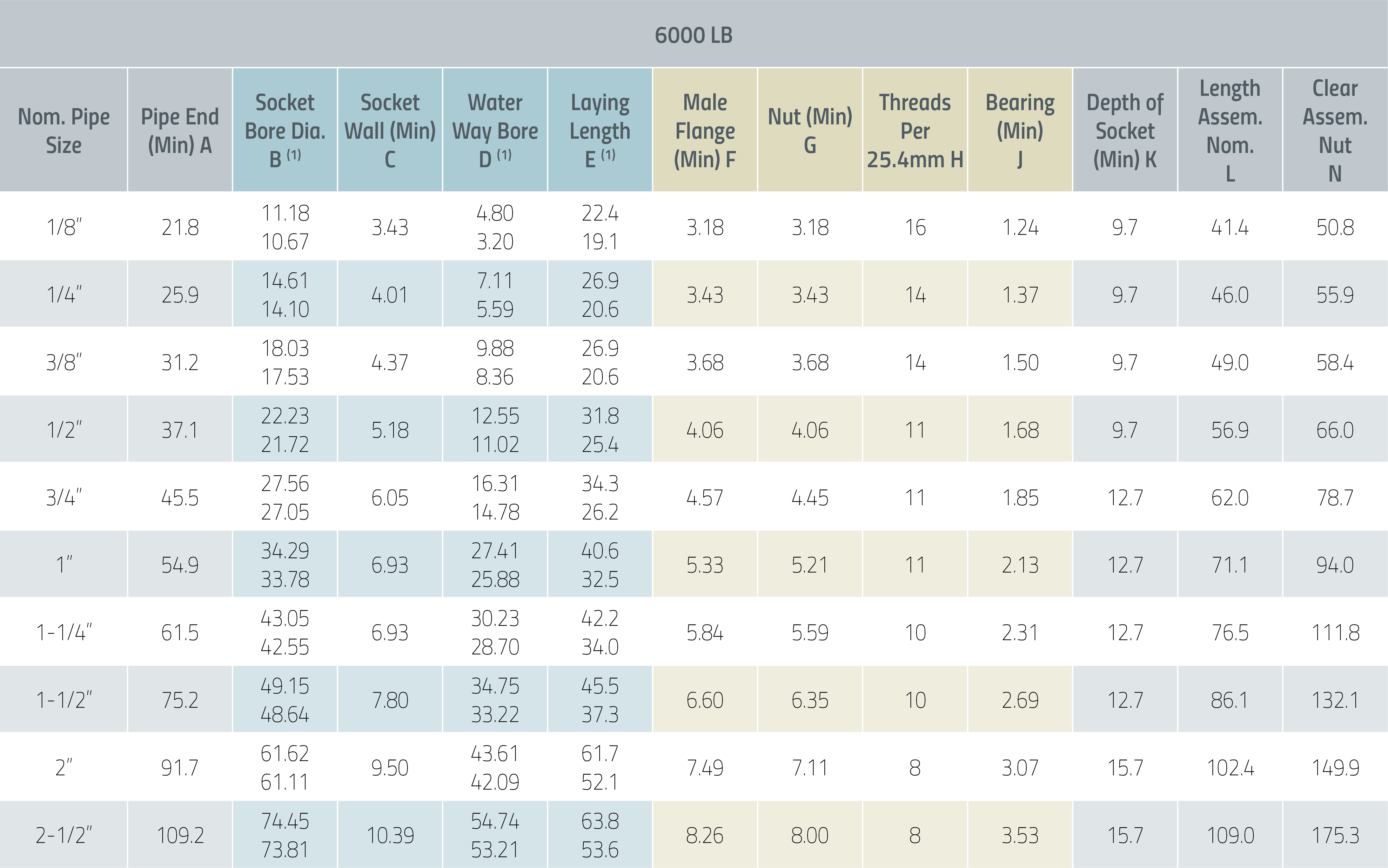

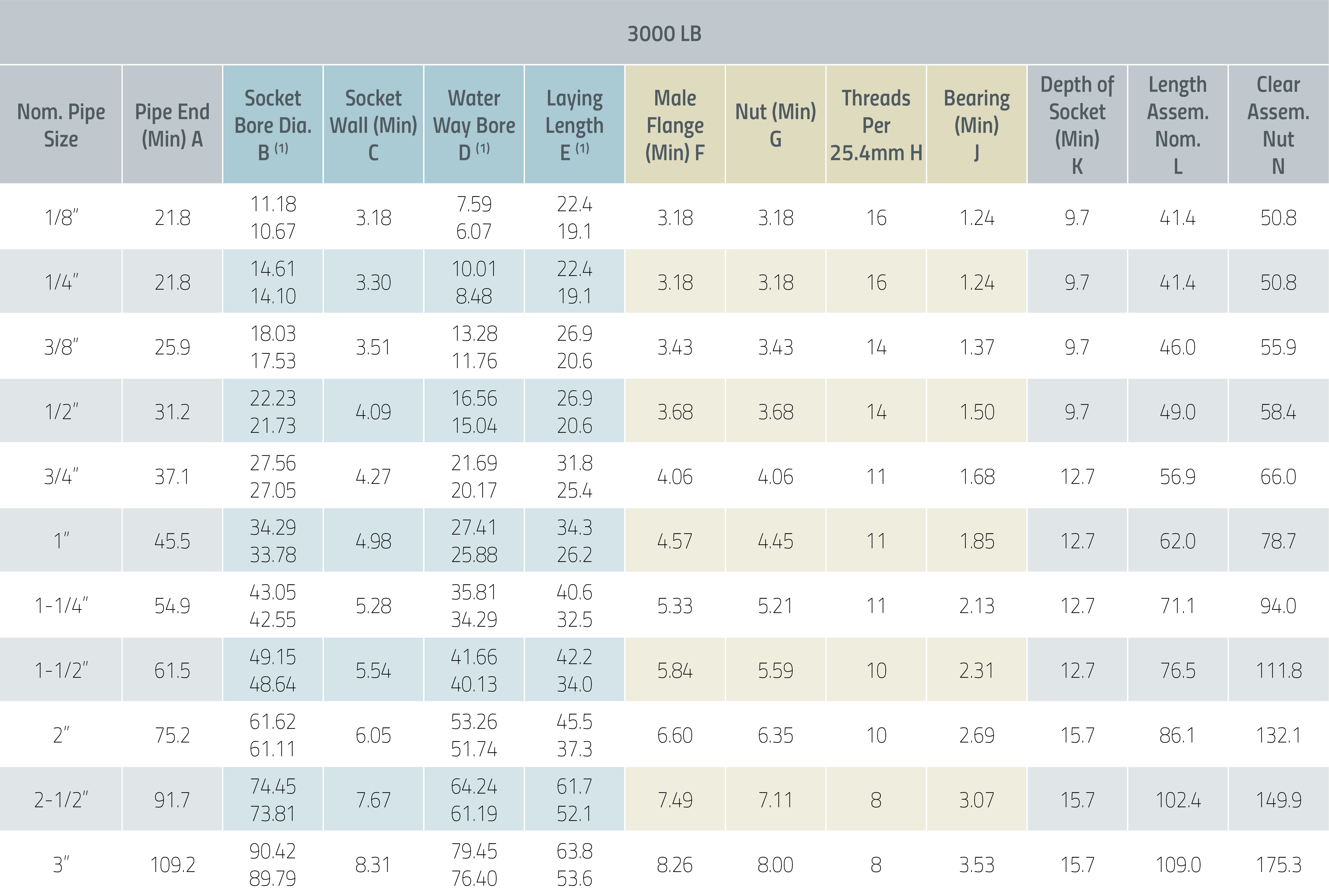

Dimensions are in millimeters.
(1) Upper and lower values for each size are the respective maximum and minimum dimensions.
