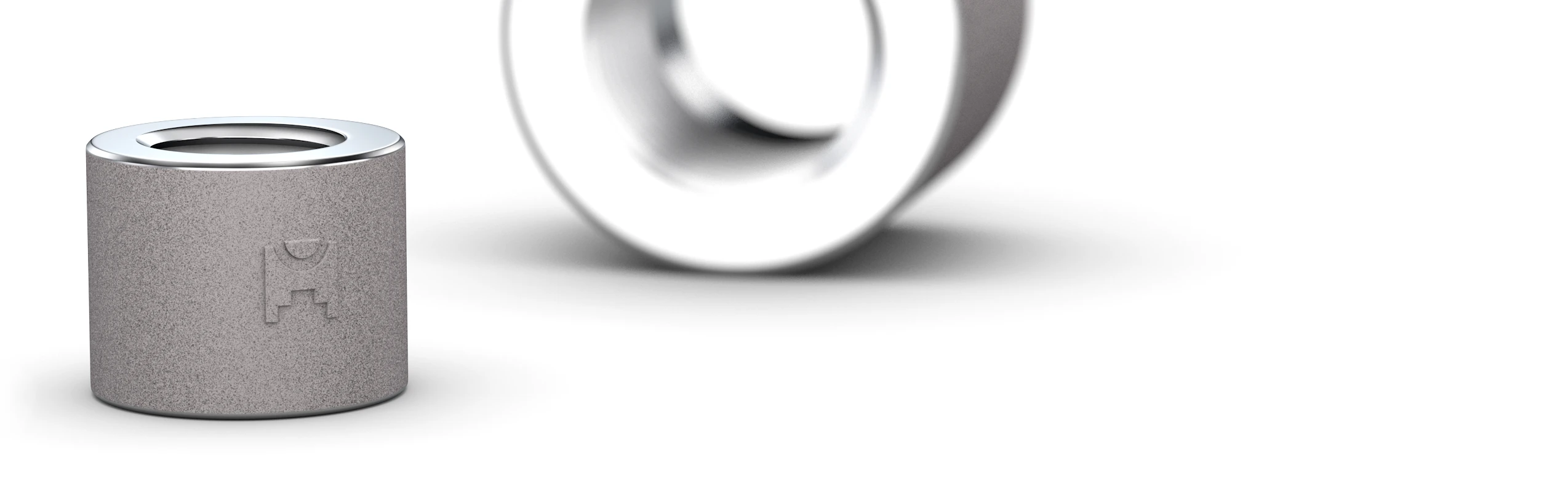

Half Coupling Threaded

Ürün Açıklaması

Half threaded couplings manufactured by Medisan are used for connecting pipe ends or providing threaded connections to equipment bodies. Designed with one end threaded and the other suitable for welding. Manufactured according to ASME B16.11 standards, these fittings offer high resistance up to 2000, 3000, 6000, and 9000pressure classes.

Our products are produced using the forging method from carbon steel (ASTM A105 / A105N), stainless steel (A182 F304/F316), and alloy steel (A182 F11/F22) materials. Offered in NPT and BSP thread types, our products ensure leak-tightness and long-lasting use through precision CNC machining.

Kullanım Alanları

Pressurized piping systems
Oil and natural gas lines
Chemical and power plants
Steam and air lines
Fire suppression systems

Kalite ve Sertifikasyon

Medisan holds PED 2014/68/EU and Class BV Factory Approval Certificate (Bureau Veritas), strictly implementing material traceability and quality control processes at all production stages.

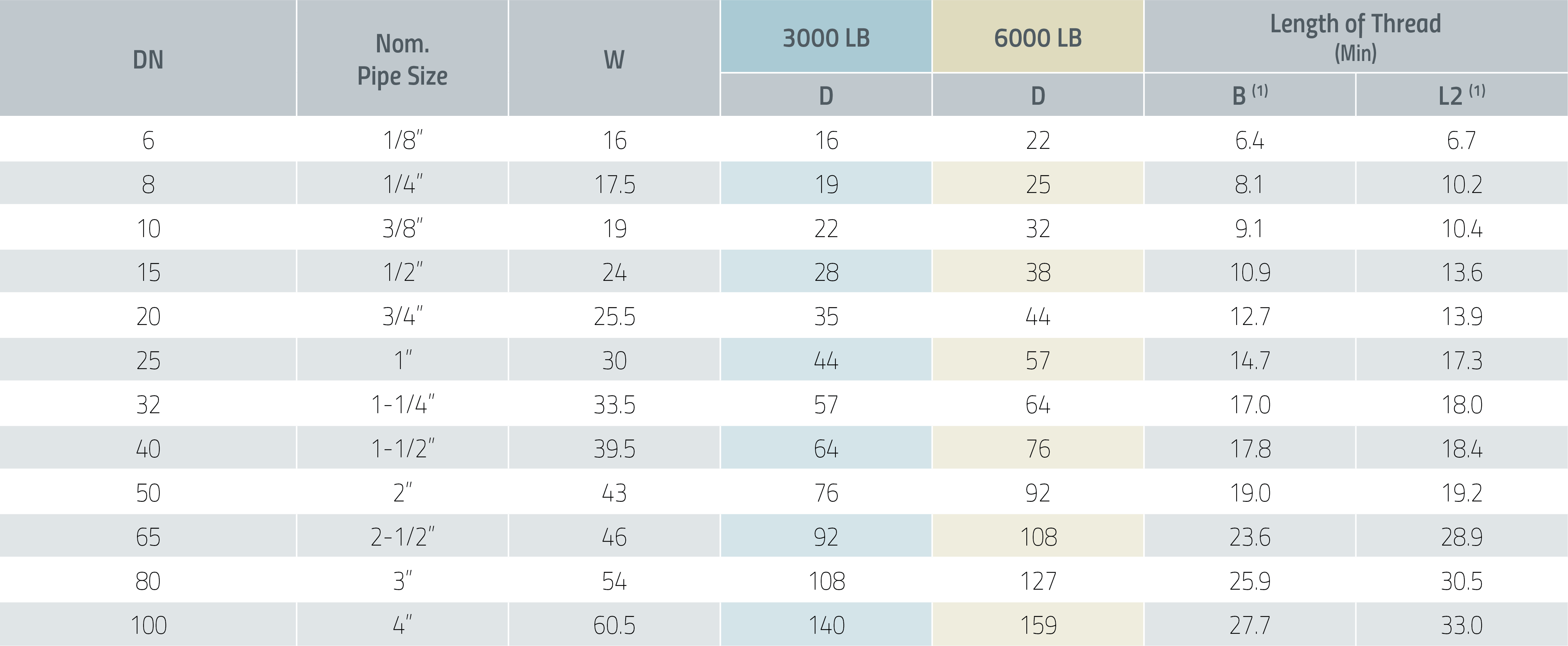

ASME B16.11-2021

Dimensions are in millimeters.

(1) Dimension B is minimum length of perfect thread. The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than L2 (effective length of external thread) required by American National Standard for pipe threads (ANSI / ASME B1.20.1).
