Blind Flanges PN16

360° View

Product Description

Blind Flanges are connection elements used to close the ends of pipelines, completely stop the flow, or seal outlet points for future line expansions. These flanges, which do not have a hole in the center, are critical safety components that directly withstand internal system pressure and bolt loads. The PN16 pressure class makes these flanges the most common and reliable closing solution for medium-to-high pressure systems, especially for industrial plants and advanced water distribution projects. Medisan manufactured blind flanges provide full sealing with their high-strength body structure.

Standards and Material:

Standards: EN 1092-1 / ISO 7005
Pressure Class: PN16
Material: Carbon Steel, Stainless Steel, Alloy Steel
Size Range: DN15 - DN2000

Applications

These flanges are generally used in power plants, petrochemical facilities, fire protection networks, treatment plants, pressure vessel outlets, and pipelines that need to be temporarily isolated during maintenance.

Quality and Certification

Blind flanges manufactured by Medisan are fully compliant with EN 1092-1 standards and offer superior performance in the PN16 pressure class. Our products are under international quality assurance with PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications.

TS ISO 7005-1

EN 1092-1 / TYPE 05

DIN 2527

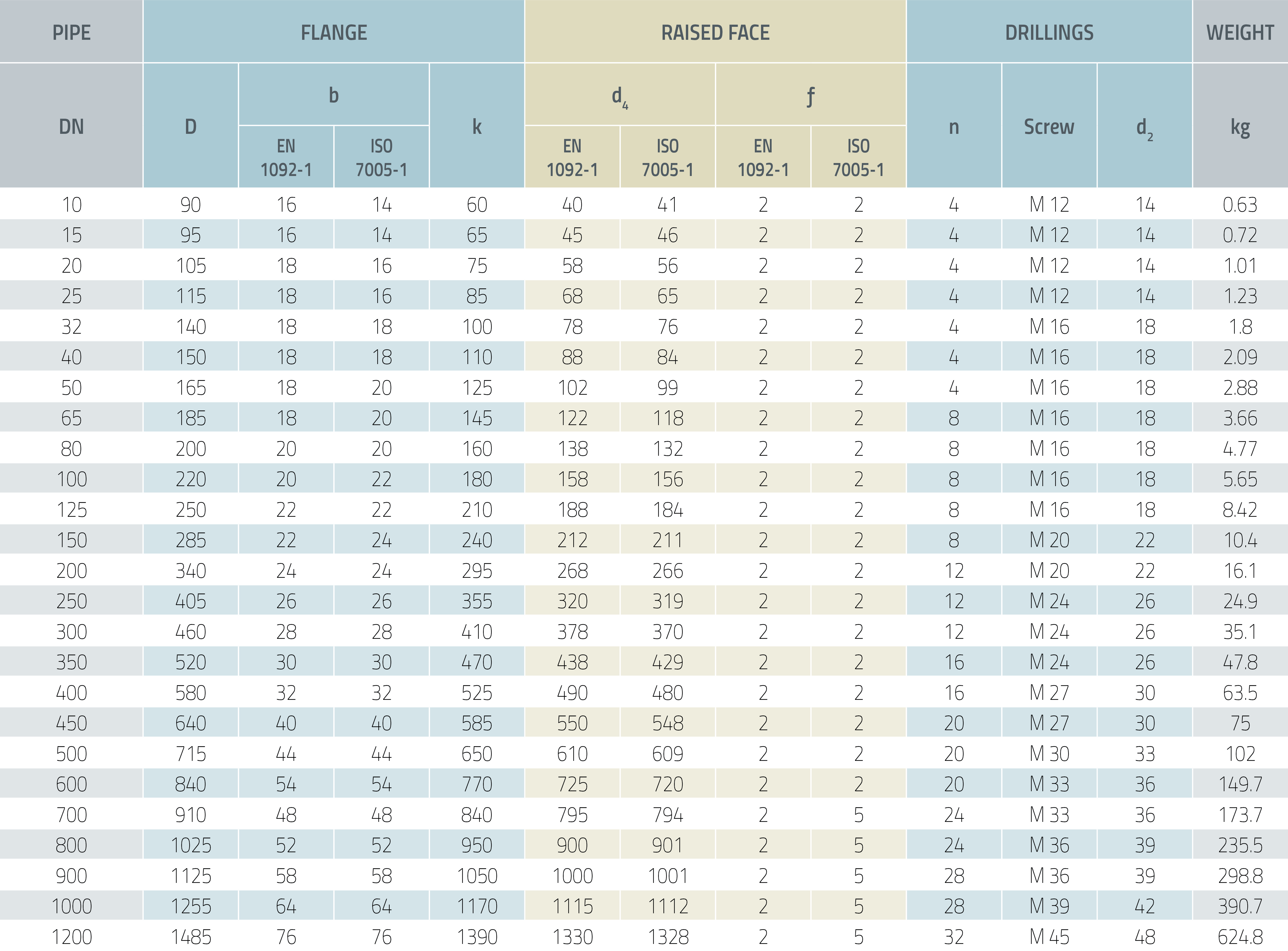

Dimensions are in millimeters.
