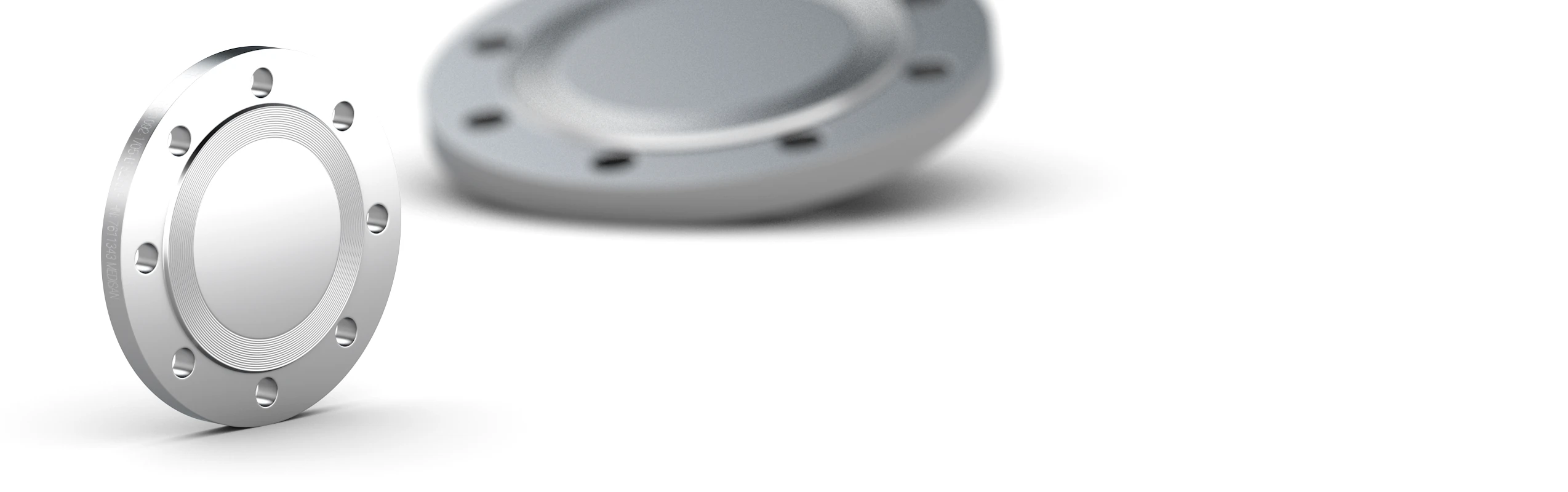

Blind Flanges PN6

360° View

Product Description

Blind Flanges are connection elements used to close the ends of pipelines, stop the flow, or seal line ends for future additions. These flanges, which do not have a hole in the center, are among the most critical parts that withstand the pressure in the system. The PN6 pressure class makes these flanges an economical closing solution in low-pressure systems and standard installation lines. Medisan manufactured blind flanges guarantee sealing security thanks to their robust body structure.

Standards and Material:

Standards: EN 1092-1 / ISO 7005
Pressure Class: PN6
Material: Carbon Steel, Stainless Steel, Alloy Steel
Size Range: DN15 - DN2000

Applications

These flanges are generally used in water distribution networks, heating-cooling (HVAC) systems, storage tank outlets, low-pressure discharge lines, and piping systems that need to be temporarily closed for maintenance purposes.

Quality and Certification

Blind flanges manufactured by Medisan are fully compliant with EN 1092-1 standards and offer secure use in the PN6pressure class. Our products are under international quality assurance with PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications.

TS ISO 7005-1

EN 1092-1 / TYPE 05

DIN 2527

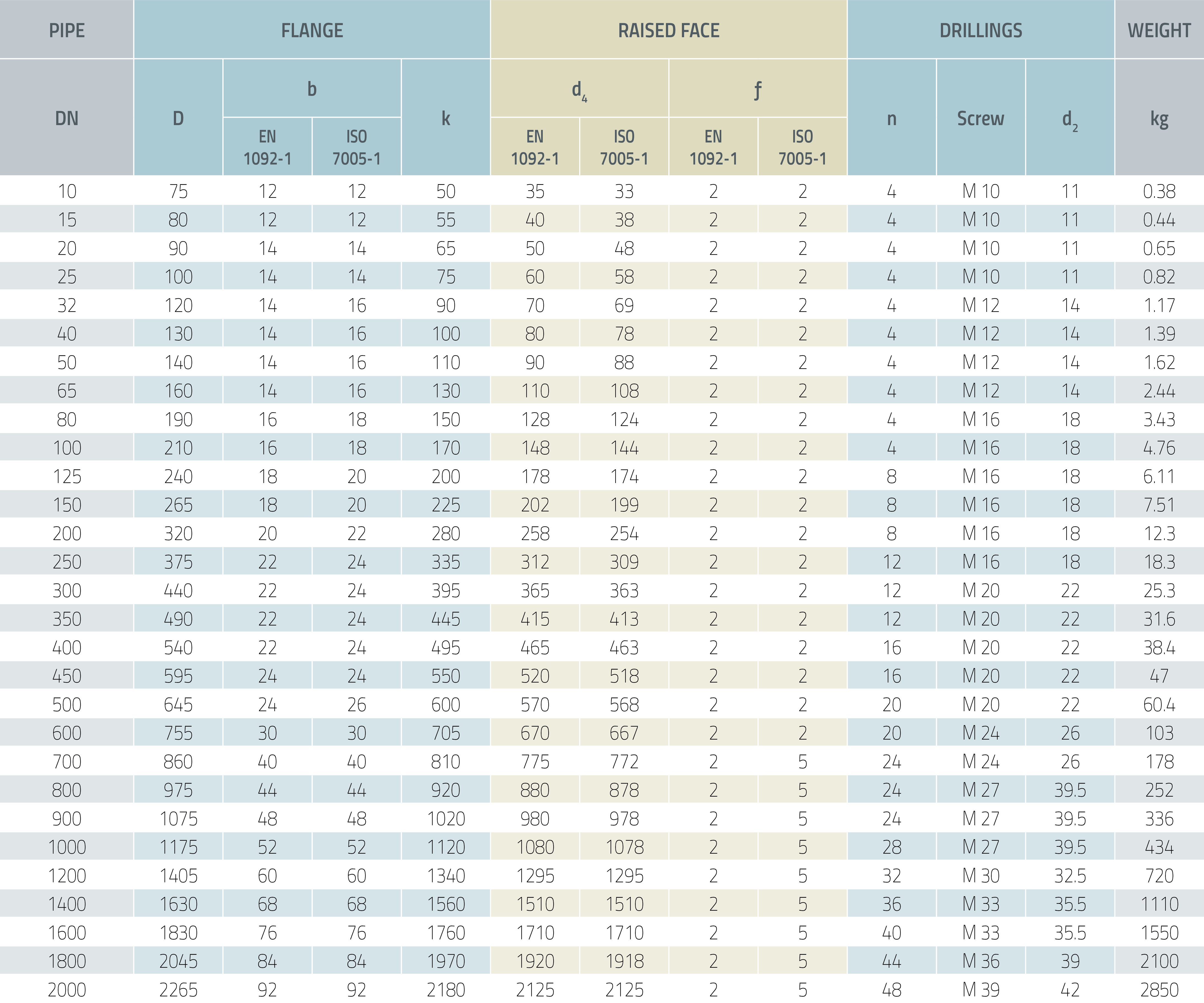

Dimensions are in millimeters.
