Union Male / Female Threaded

360° View

Product Description

The male-female threaded union (union M/F) manufactured by Medisan is a special fitting designed for points in pipelines that need to be frequently dismantled and reassembled for maintenance, repair, or cleaning. With one end female threaded and the other male threaded, these unions provide flexible installation options on the line. Manufactured from forged steel in accordance with ASME B16.11 and MSS-SP-83 standards, the products demonstrate high sealing performance in Class 3000 and Class 6000 pressure classes.

Our products are manufactured from carbon steel (ASTM A105 / A105N), stainless steel (A182 F304 / F316), and alloy steel (A182 F11 / F22) materials. Conical or flat seating surfaces ensure excellent sealing through metal-to-metalcontact.

Applications

Pipelines requiring frequent maintenance
Instrument and manometer connections
Refinery and petrochemical process lines
High-pressure steam and gas systems
Hydraulic circuits

Quality and Certification

Medisan manufactures with PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications, guaranteeing material quality and pressure resistance with international standards.

MSS SP-83-2018

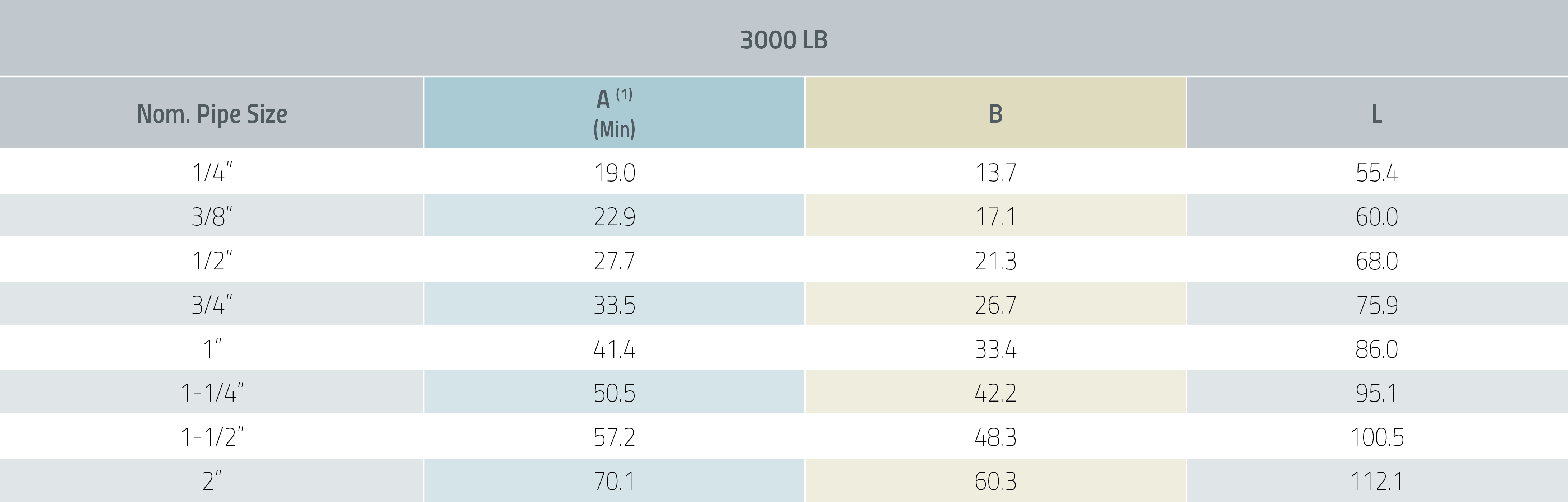

Dimensions are in millimeters.

(1) Dimensions refer to MSS SP-83 TABLE 5.
