Lap Joint Flanges PN25

360° View

Product Description

Lap Joint Flanges are connection elements assembled to the pipeline together with a "Stub End" part, allowing them to rotate freely on the pipe. This rotation feature ensures accurate and fast alignment of bolt holes during installation. The PN25 pressure class makes these flanges a reliable and practical solution in high-pressure systems, especially in processes where the line needs to be frequently dismantled for maintenance. Medisan manufactured Lap Joint flanges offer both high pressure resistance and operational ease.

Standards and Material:

Standards: EN 1092-1 / ISO 7005
Pressure Class: PN25
Material: Carbon Steel, Stainless Steel, Alloy Steel
Size Range: DN15 - DN1000

Applications

These flanges are generally used in high-pressure water transmission lines, chemical process plants, pulp and paper industry, pumping stations, and heavy-duty piping systems that require regular cleaning or component replacement.

Quality and Certification

Lap Joint flanges manufactured by Medisan are fully compliant with EN 1092-1 standards and offer superior performance in the PN25 pressure class. Our products are under international quality assurance with PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications.

TS ISO 7005-1

EN 1092-1 / TYPE 02;32

DIN 2655

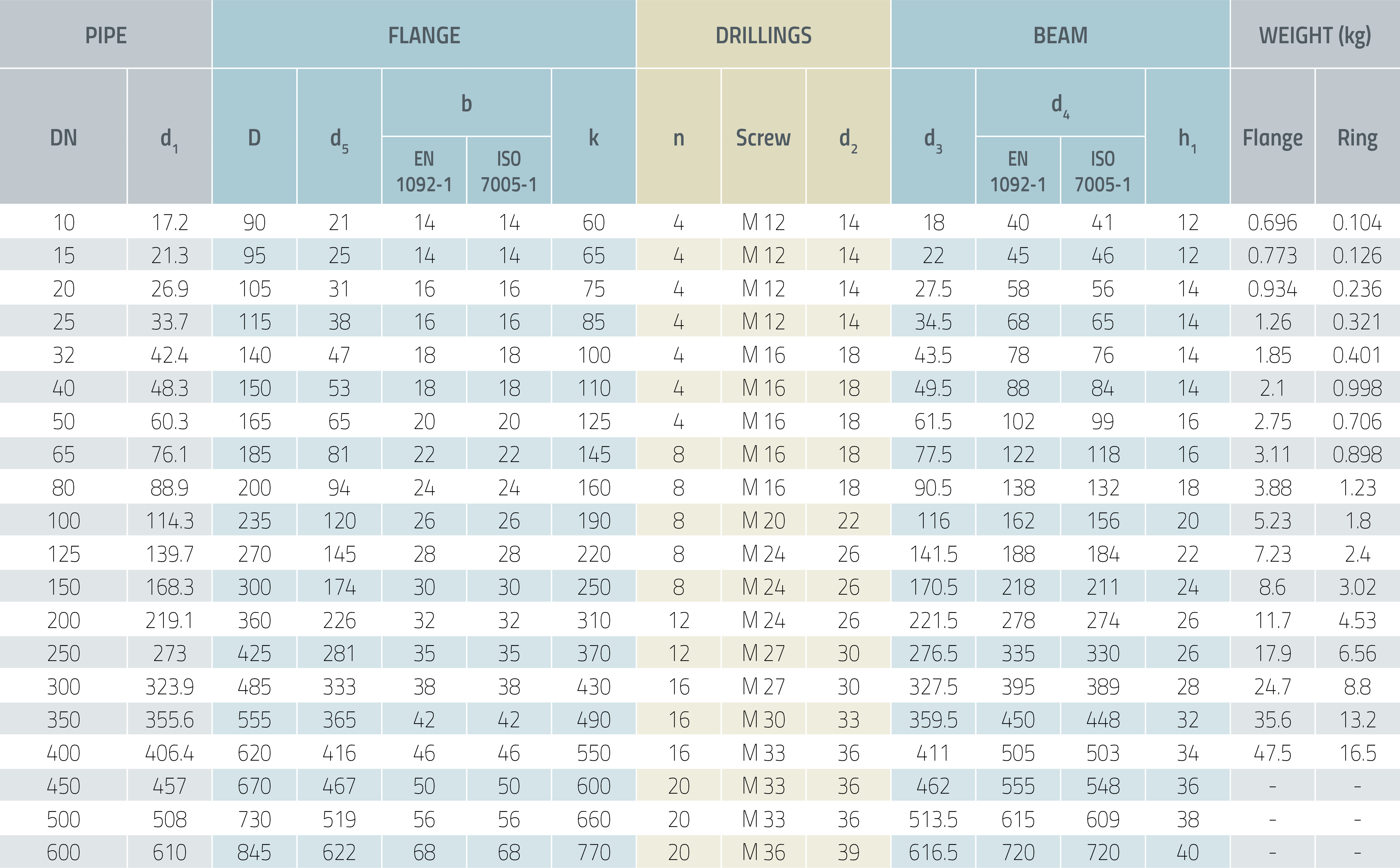

Dimensions are in millimeters.
