Lap Joint Flanges PN40

360° View

Product Description

Lap Joint Flanges are high-strength connection elements assembled to the pipeline together with a "Stub End" part, allowing them to rotate freely on the pipe. This rotation feature provides great operational ease by ensuring fast and error-free alignment of bolt holes during installation. The PN40 pressure class makes these flanges a reliable and practical solution in high-pressure systems, especially in critical processes where the line needs to be frequently dismantled for maintenance. Medisan manufactured Lap Joint flanges offer both high pressure resistance and the advantage of fast installation.

Standards and Material:

Standards: EN 1092-1 / ISO 7005
Pressure Class: PN40
Material: Carbon Steel, Stainless Steel, Alloy Steel
Size Range: DN15 - DN600

Applications

These flanges are generally used in high-pressure chemical process plants, petrochemical refineries, power plants, high-performance pumping stations, and heavy-duty piping systems that require regular cleaning, inspection, or component replacement.

Quality and Certification

Lap Joint flanges manufactured by Medisan are fully compliant with EN 1092-1 standards and offer superior performance in the PN40 pressure class. Our products are under international quality assurance with PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications.

TS ISO 7005-1

EN 1092-1 / TYPE 02;32

DIN 2656

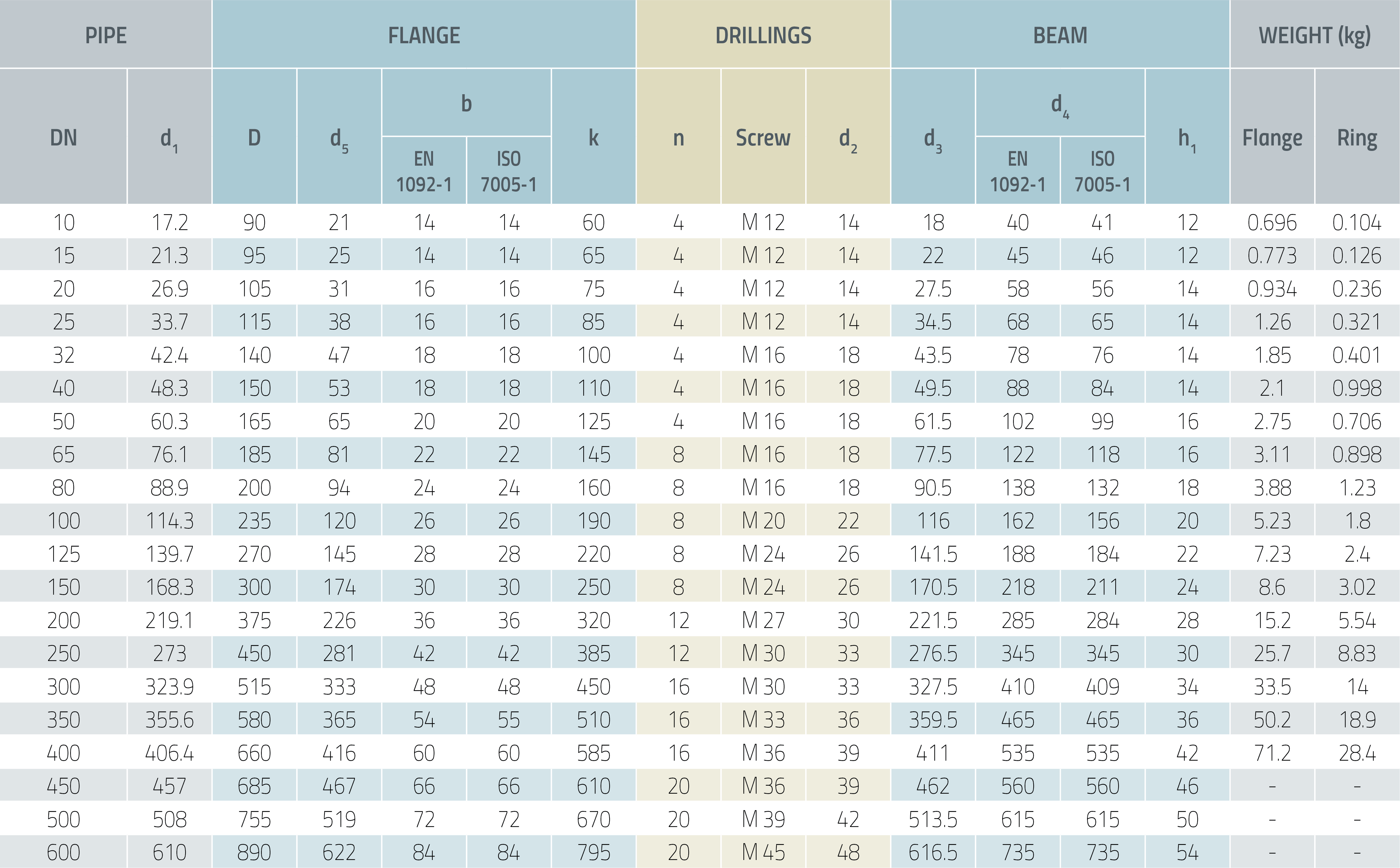

Dimensions are in millimeters.
