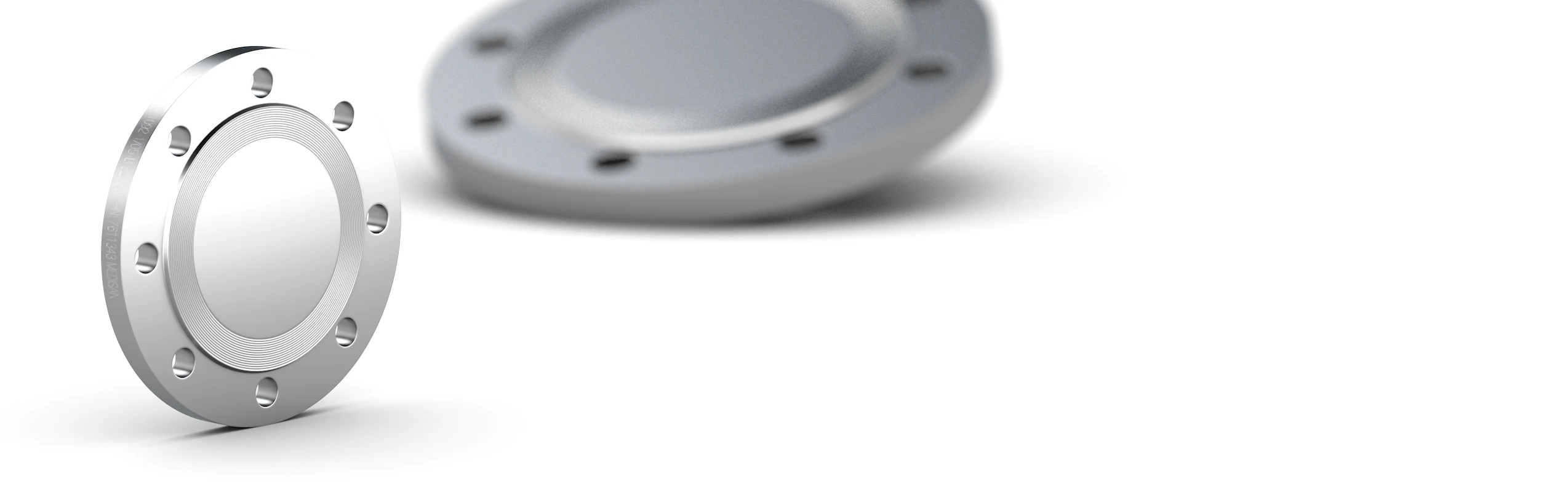

Blind Flanges PN10

360° View

Product Description

Blind Flanges are connection elements used to close the ends of pipelines, stop the flow, or seal line ends for future expansions. These flanges, which do not have a hole in the center, are critical parts that directly withstand the pressure in the system and ensure sealing. The PN10 pressure class makes these flanges an ideal and reliable closing solution for medium-pressure systems, especially for water transmission and general industrial installations. Medisan manufactured blind flanges offer long-lasting use with high material quality and robust body structure.

Standards and Material:

Standards: EN 1092-1 / ISO 7005
Pressure Class: PN10
Material: Carbon Steel, Stainless Steel, Alloy Steel
Size Range: DN15 - DN2000

Applications

These flanges are generally used in municipal water networks, treatment plants, storage tank inlets/outlets, HVAC (heating-cooling) systems, and industrial piping lines that need to be closed for periodic maintenance.

Quality and Certification

Blind flanges manufactured by Medisan are fully compliant with EN 1092-1 standards and offer secure use in the PN10pressure class. Our products are under international quality assurance with PED 2014/68/EU, ISO 9001:2015, and Class BV Factory Approval certifications.

TS ISO 7005-1

EN 1092-1 / TYPE 05

DIN 2527

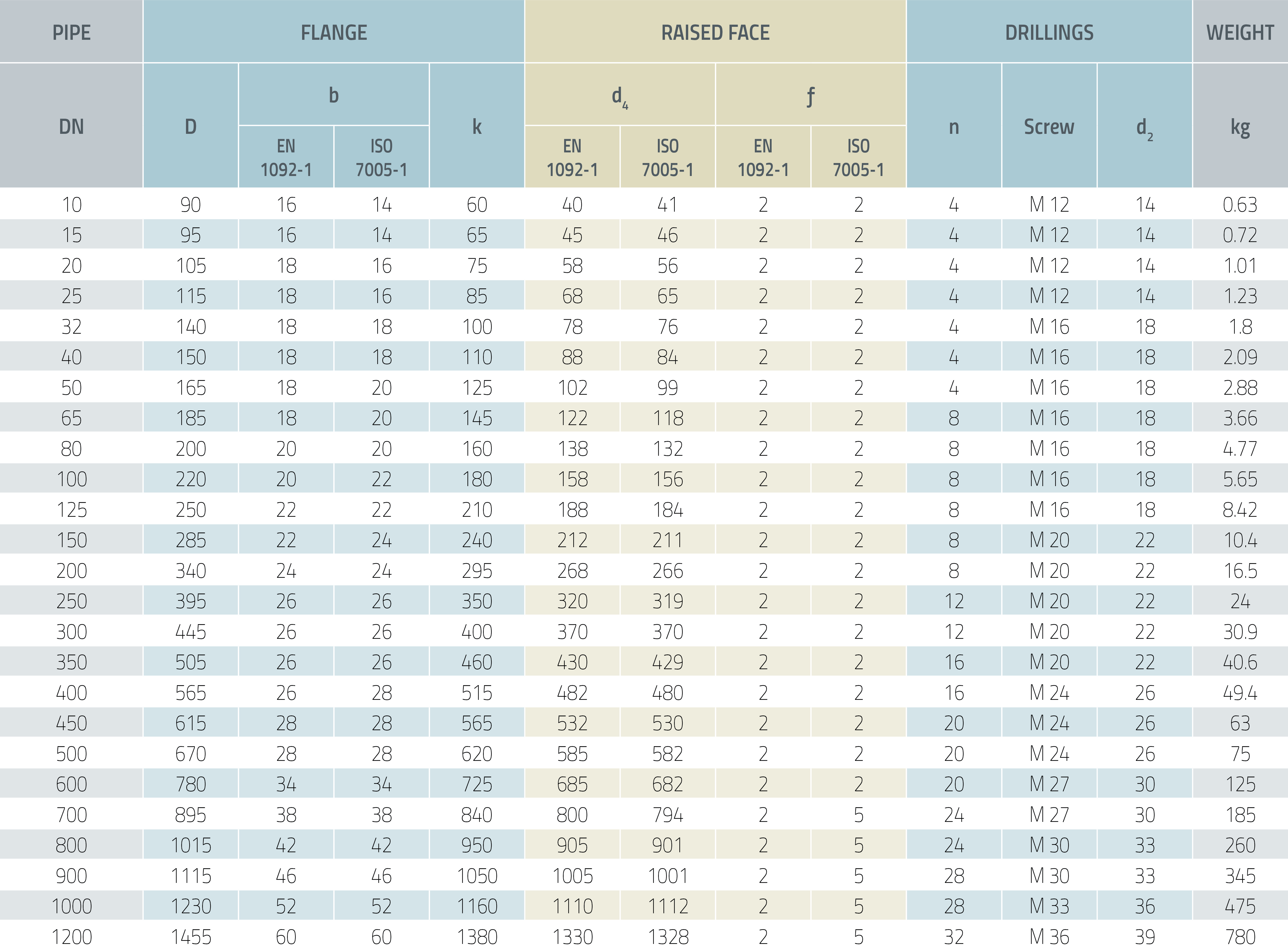

Dimensions are in millimeters.
