Street Elbow

Ürün Açıklaması

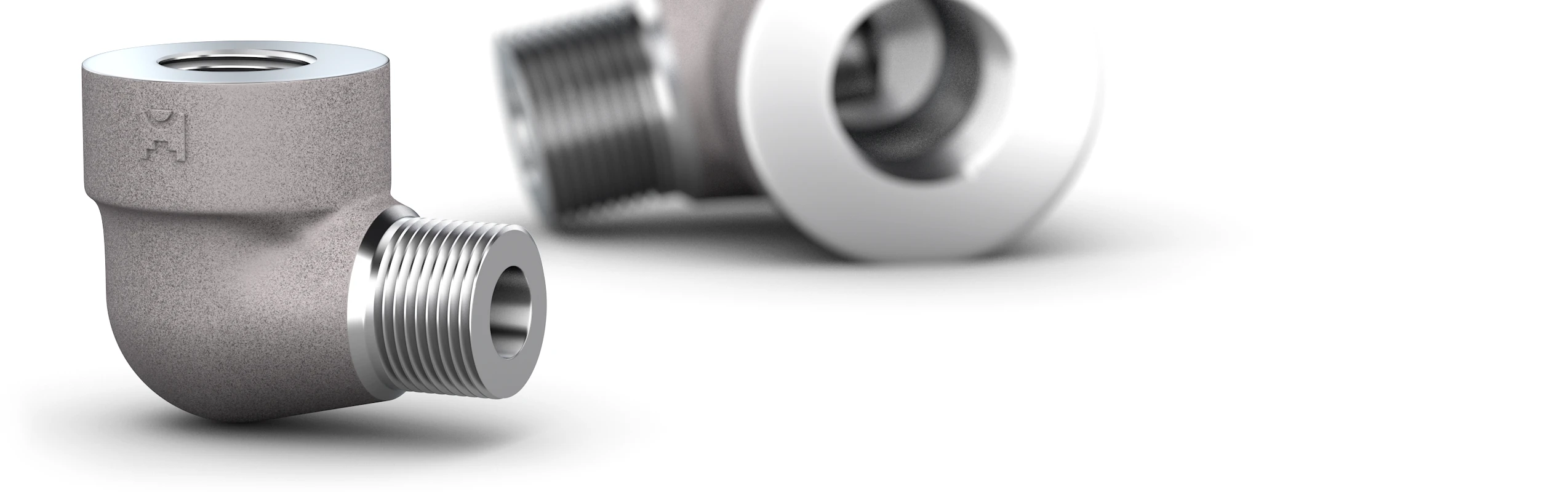

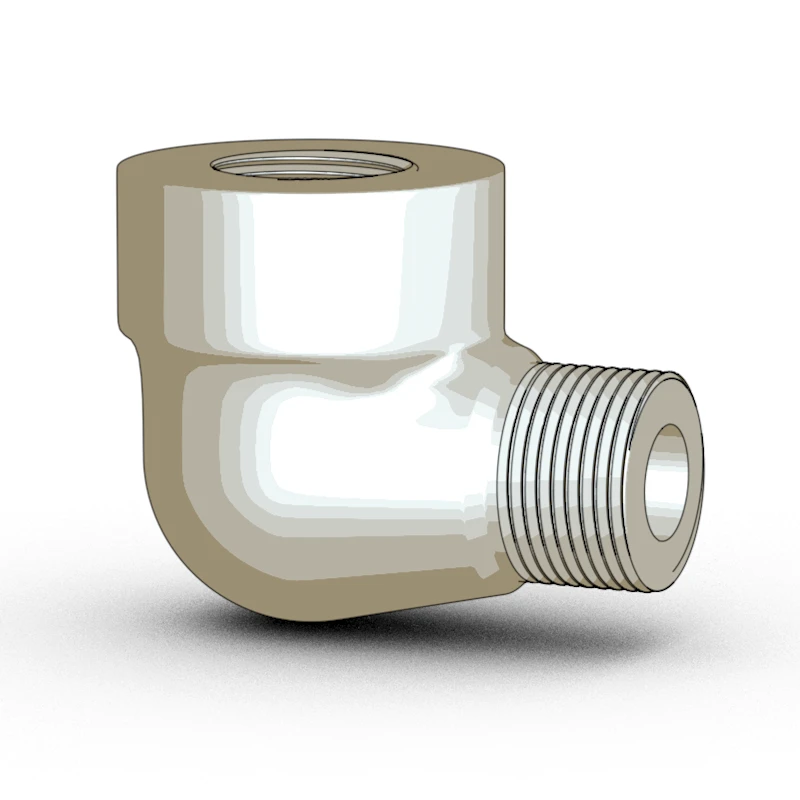

The street elbow manufactured by Medisan is a special fitting designed with one end male threaded and the other end female threaded. This ensures a fast, leak-proof, and compact direction change between pipes. Produced using the forging method in accordance with the ASME B16.11 standard, the product is offered with 45°or 90° angle options.

Our products are available in material groups: Carbon Steel: ASTM A105/A105N, Stainless Steel: ASTM A182 F304/F316, and Alloy Steel: ASTM A182 F11/F22.

Kullanım Alanları

Oil and natural gas lines
Chemical and petrochemical plants
Power generation systems
Fire suppression pipeline installations
Water and air lines

Kalite ve Sertifikasyon

Medisan's advanced forging technology and high-precision CNC machining capacity ensure maximum sealing and durability in threaded connections.

All production processes are conducted within the scope of PED 2014/68/EU and Class BV Factory Approval Certificate (Bureau Veritas) certifications.

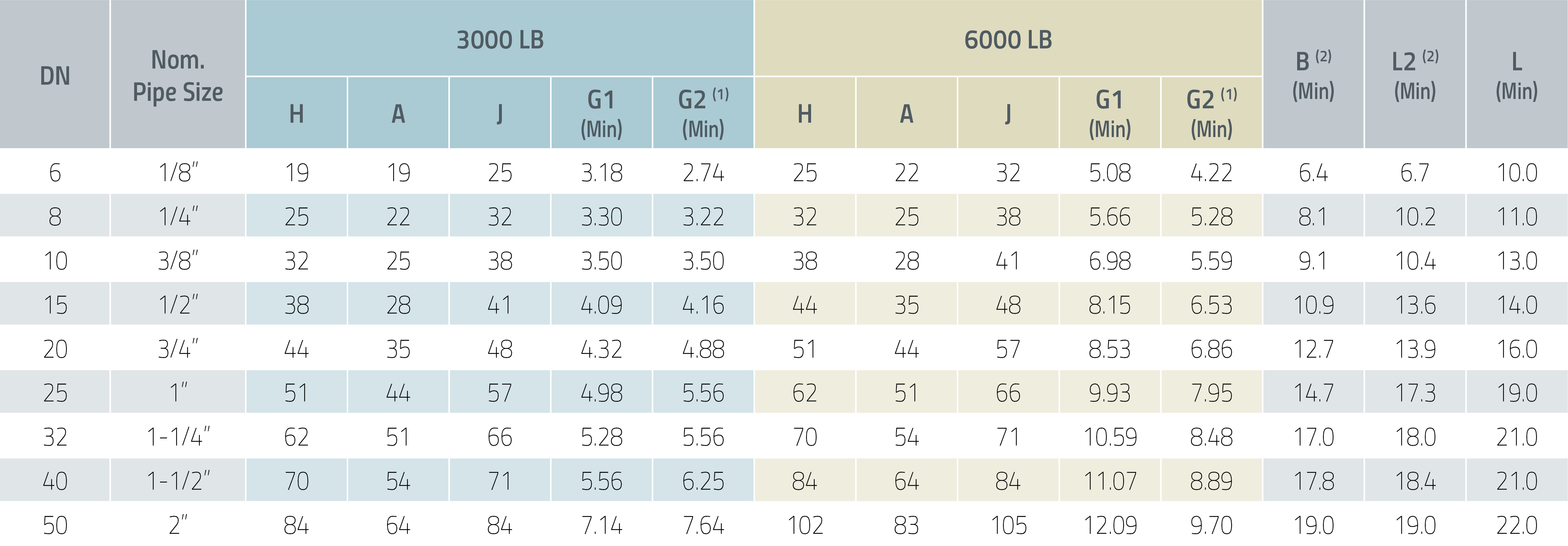

ASME B16.11-2021

Dimensions are in millimeters.

(1) Wall thickness before threading.

(2) Dimension B is minimum length of perfect thread. The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than L2 (effective length of external thread) required by American National Standard for pipe threads (ANSI / ASME B1.20.1).
